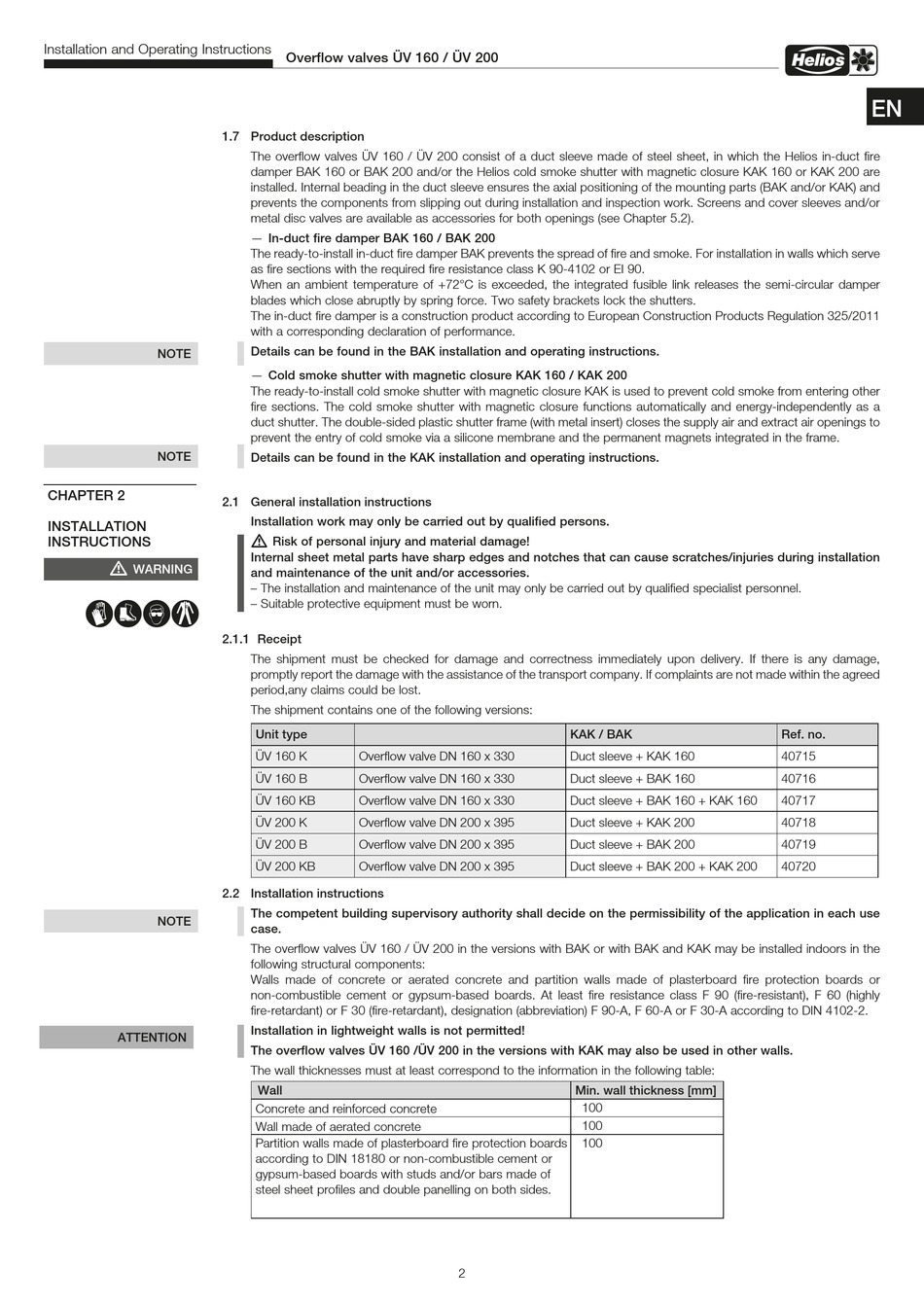

Installation and Operating Instructions
NOTE
NOTE
CHAPTER 2
INSTALLATION
INSTRUCTIONS
m
WARNING
nmlr
NOTE
ATTENTION
Overflow valves ÜV 160 / ÜV 200
1.7 Product description
The overflow valves ÜV 160 / ÜV 200 consist of a duct sleeve made of steel sheet, in which the Helios in-duct fire
damper BAK 160 or BAK 200 and/or the Helios cold smoke shutter with magnetic closure KAK 160 or KAK 200 are
installed. Internal beading in the duct sleeve ensures the axial positioning of the mounting parts (BAK and/or KAK) and
prevents the components from slipping out during installation and inspection work. Screens and cover sleeves and/or
metal disc valves are available as accessories for both openings (see Chapter 5.2).
— In-duct fire damper BAK 160 / BAK 200
The ready-to-install in-duct fire damper BAK prevents the spread of fire and smoke. For installation in walls which serve
as fire sections with the required fire resistance class K 90-4102 or EI 90.
When an ambient temperature of +72°C is exceeded, the integrated fusible link releases the semi-circular damper
blades which close abruptly by spring force. Two safety brackets lock the shutters.
The in-duct fire damper is a construction product according to European Construction Products Regulation 325/2011
with a corresponding declaration of performance.
Details can be found in the BAK installation and operating instructions.
— Cold smoke shutter with magnetic closure KAK 160 / KAK 200
The ready-to-install cold smoke shutter with magnetic closure KAK is used to prevent cold smoke from entering other
fire sections. The cold smoke shutter with magnetic closure functions automatically and energy-independently as a
duct shutter. The double-sided plastic shutter frame (with metal insert) closes the supply air and extract air openings to
prevent the entry of cold smoke via a silicone membrane and the permanent magnets integrated in the frame.
Details can be found in the KAK installation and operating instructions.
2.1 General installation instructions
Installation work may only be carried out by qualified persons.
m
Risk of personal injury and material damage!
Internal sheet metal parts have sharp edges and notches that can cause scratches/injuries during installation
and maintenance of the unit and/or accessories.
– The installation and maintenance of the unit may only be carried out by qualified specialist personnel.
– Suitable protective equipment must be worn.
2.1.1 Receipt
The shipment must be checked for damage and correctness immediately upon delivery. If there is any damage,
promptly report the damage with the assistance of the transport company. If complaints are not made within the agreed
period,any claims could be lost.
The shipment contains one of the following versions:
Unit type
ÜV 160 K
Overflow valve DN 160 x 330
ÜV 160 B
Overflow valve DN 160 x 330
ÜV 160 KB
Overflow valve DN 160 x 330
ÜV 200 K
Overflow valve DN 200 x 395
ÜV 200 B
Overflow valve DN 200 x 395
ÜV 200 KB
Overflow valve DN 200 x 395
2.2 Installation instructions
The competent building supervisory authority shall decide on the permissibility of the application in each use
case.
The overflow valves ÜV 160 / ÜV 200 in the versions with BAK or with BAK and KAK may be installed indoors in the
following structural components:
Walls made of concrete or aerated concrete and partition walls made of plasterboard fire protection boards or
non-combustible cement or gypsum-based boards. At least fire resistance class F 90 (fire-resistant), F 60 (highly
fire-retardant) or F 30 (fire-retardant), designation (abbreviation) F 90-A, F 60-A or F 30-A according to DIN 4102-2.
Installation in lightweight walls is not permitted!
The overflow valves ÜV 160 /ÜV 200 in the versions with KAK may also be used in other walls.
The wall thicknesses must at least correspond to the information in the following table:
Wall
Concrete and reinforced concrete
Wall made of aerated concrete
Partition walls made of plasterboard fire protection boards
according to DIN 18180 or non-combustible cement or
gypsum-based boards with studs and/or bars made of
steel sheet profiles and double panelling on both sides.
KAK / BAK
Duct sleeve + KAK 160
Duct sleeve + BAK 160
Duct sleeve + BAK 160 + KAK 160
Duct sleeve + KAK 200
Duct sleeve + BAK 200
Duct sleeve + BAK 200 + KAK 200
Min. wall thickness [mm]
100
100
100
2
EN
Ref. no.
40715
40716
40717
40718
40719
40720
