Technical data
Material
Load capacity
Dimensions and
adjustment range
Packing
Weight
Maintenance, cleaning and repair
u Maintenance: Regularly check that the screw connection is tight.
u Cleaning: Use a slightly damp cloth to clean the speaker stand. Do not use chlorinated or
u
abrasive cleaning agents. These will cause damage to the surface and varnish.
u Repair: Repair any damage immediately and stop using the speaker stand. Repair work may
u
only be carried out if you have the necessary knowledge. If any parts are missing, contact the
u
manufacturer at www.k-m.de. Here you can find a corresponding spare parts list by entering
u
the article number on the type label. Use this page to reorder missing or damaged compo-
u
nents.
Base, extension tube, safety hook, threaded bush, base plate, carriage
bolts: Steel, powder-coated, black
Screws, threaded bolt, washer, threaded bush, nut: Steel, galvanized
Clamp, clamping screw, handle, cable protection ring: Plastic, black
Clamping sleeve, clamping elements: Plastic, grey
18 kg
Under centric load, on a horizontal surface and without lateral forces
Base: (W) 550 x (D) 550 x (H) 20 mm
Height: 1,424-2,424 mm, 5 x 200 mm
Expanding mandrel: Diameter 35-37 mm
Package 1 of 2 (W) 1,500 x (D) 140 x (H) 75 mm
Package 2 of 2 (W) 653 x (D) 653 x (H) 30 mm
17.5 kg

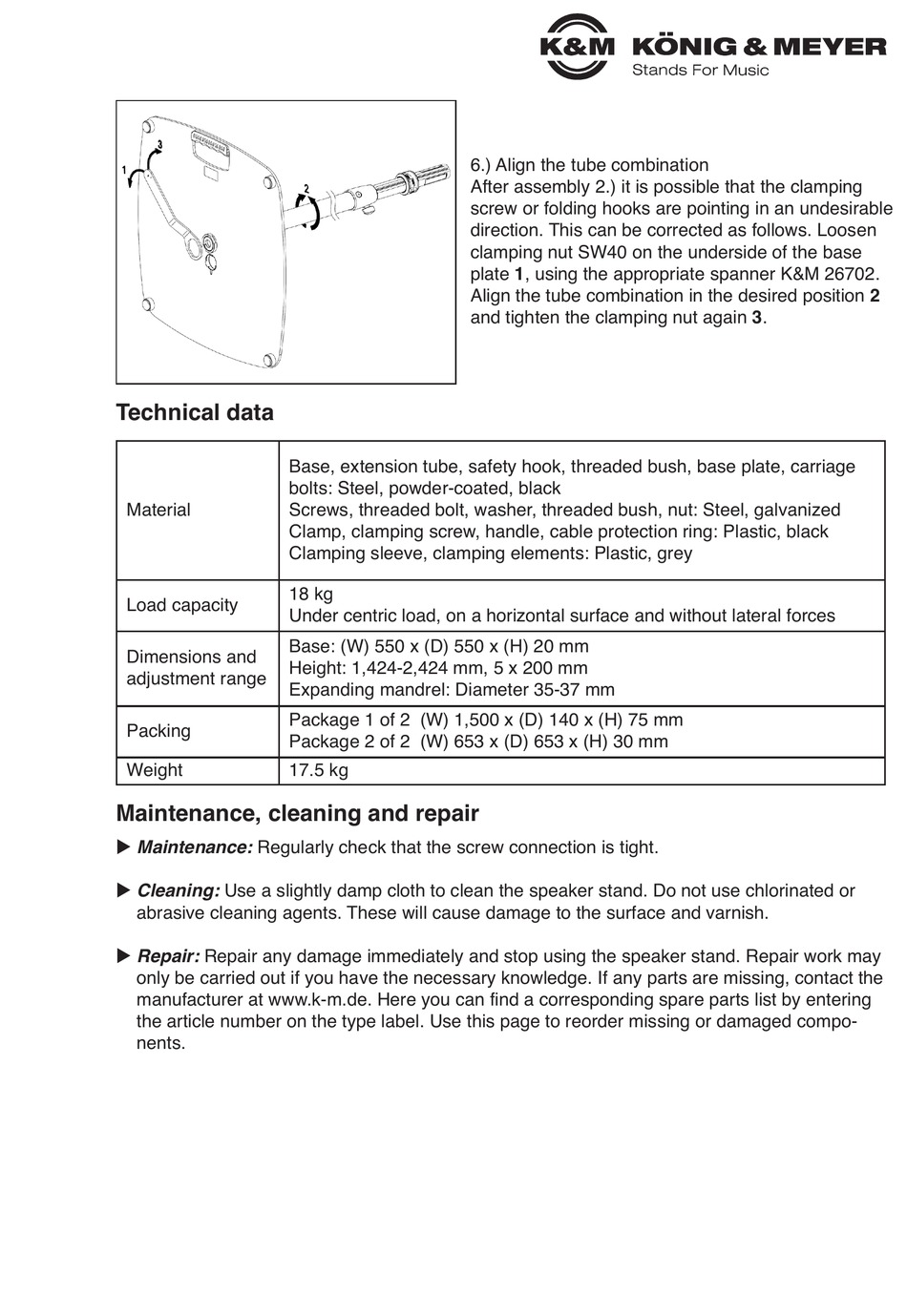

6.) Align the tube combination
After assembly 2.) it is possible that the clamping
screw or folding hooks are pointing in an undesirable
direction. This can be corrected as follows. Loosen
clamping nut SW40 on the underside of the base
plate 1, using the appropriate spanner K&M 26702.
Align the tube combination in the desired position 2
and tighten the clamping nut again 3.
