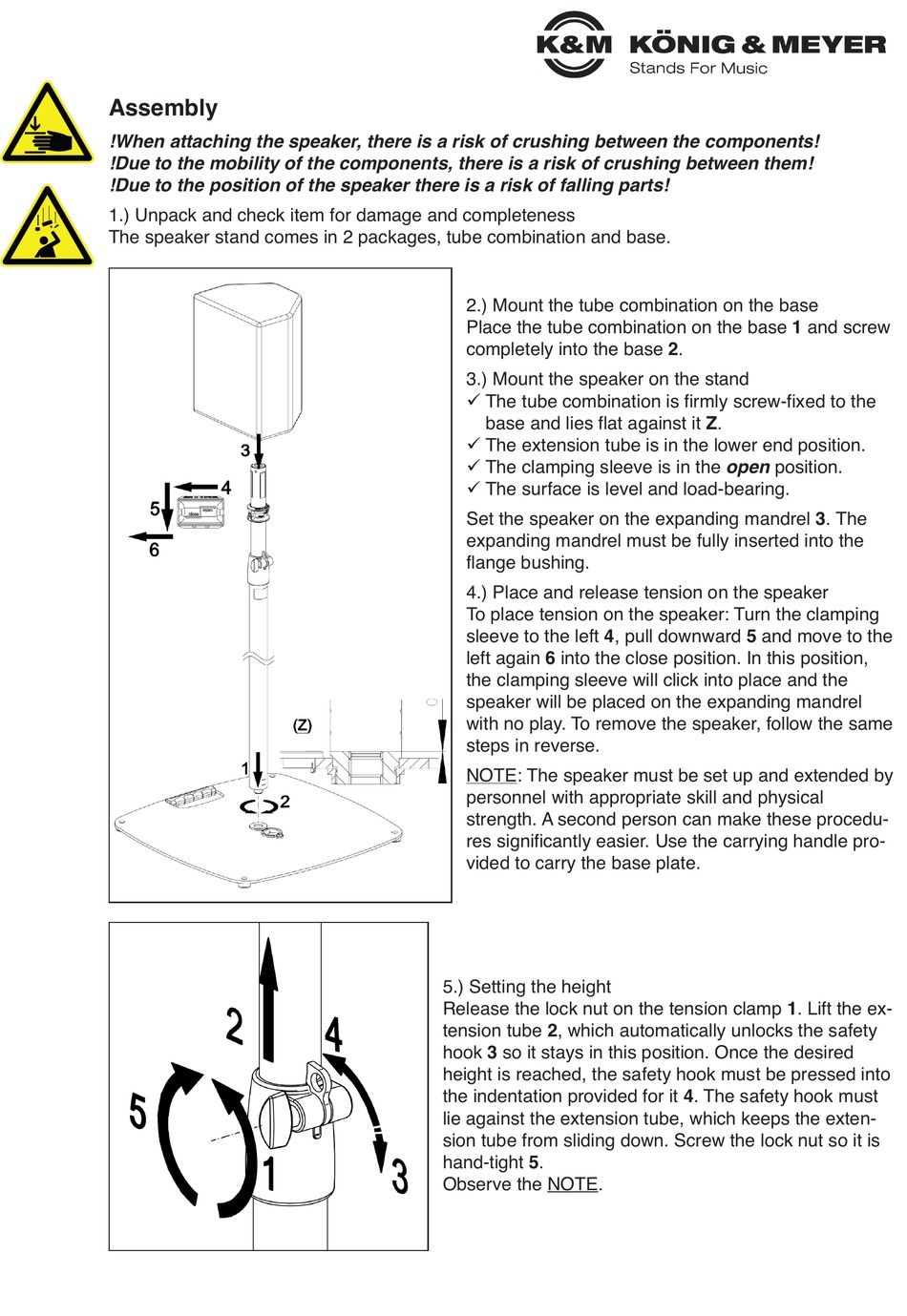

Assembly
!When attaching the speaker, there is a risk of crushing between the components!
!Due to the mobility of the components, there is a risk of crushing between them!
!Due to the position of the speaker there is a risk of falling parts!
1.) Unpack and check item for damage and completeness
The speaker stand comes in 2 packages, tube combination and base.
2.) Mount the tube combination on the base
Place the tube combination on the base 1 and screw
completely into the base 2.
3.) Mount the speaker on the stand
 The tube combination is firmly screw-fixed to the

base and lies flat against it Z.
 The extension tube is in the lower end position.
 The clamping sleeve is in the open position.
 The surface is level and load-bearing.
Set the speaker on the expanding mandrel 3. The
expanding mandrel must be fully inserted into the
flange bushing.
4.) Place and release tension on the speaker
To place tension on the speaker: Turn the clamping
sleeve to the left 4, pull downward 5 and move to the
left again 6 into the close position. In this position,
the clamping sleeve will click into place and the
speaker will be placed on the expanding mandrel
with no play. To remove the speaker, follow the same
steps in reverse.
NOTE: The speaker must be set up and extended by
personnel with appropriate skill and physical
strength. A second person can make these procedu-
res significantly easier. Use the carrying handle pro-
vided to carry the base plate.
5.) Setting the height
Release the lock nut on the tension clamp 1. Lift the ex-
tension tube 2, which automatically unlocks the safety
hook 3 so it stays in this position. Once the desired
height is reached, the safety hook must be pressed into
the indentation provided for it 4. The safety hook must
lie against the extension tube, which keeps the exten-
sion tube from sliding down. Screw the lock nut so it is
hand-tight 5.
Observe the NOTE.
