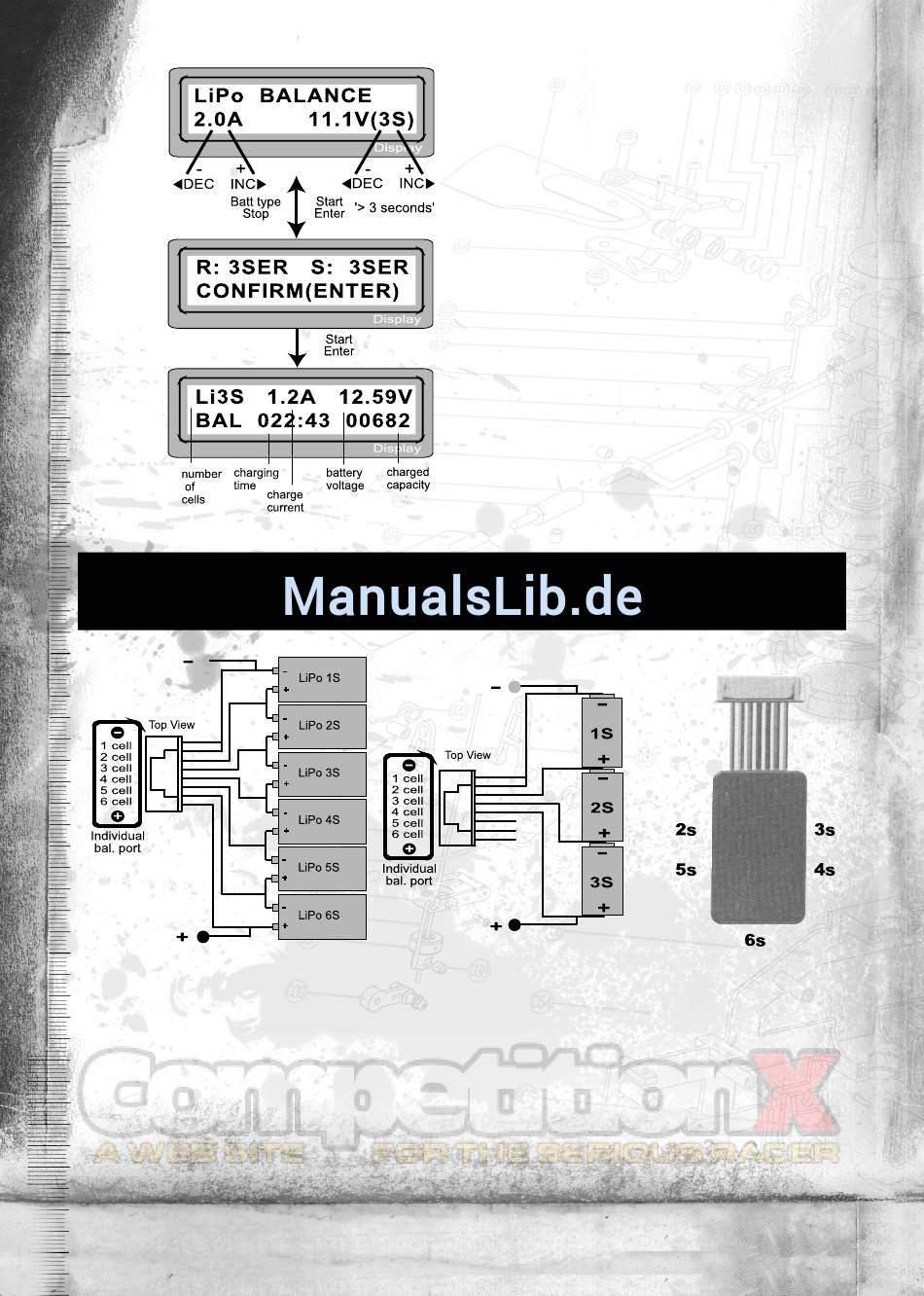

The value on the left side of second line sets a charge current and the
value on the right side of second line sets the voltage of the battery
pack.
After setting the current and voltage press "Start/Enter" key for more
than 3 seconds to start the process.
This shows the number of cells you set up and the processor detects.
'R' shows the number of cells found by the charger and 'S' is the
number of cells selected by you at the previous screen. If both
numbers are identical you can start charging by press "Start/
Enter" button. If not, press "Batt type/Stop" button to go back to
the previous screen. Then carefully check the number of cells of the
battery pack to charge again.
The screen shows the present situation during charge process. To stop
charging press "Batt type/Stop" key once.
9. Individual Cell Connection Diagram
(Pin-Assignment of 8-Pin)
10 Instruction Manual
