Pottinger IMPRESS 3190 V MASTER Originalbetriebsanleitung Seite 315

1
2
5
6
7
8332.de-DE.80Y.0

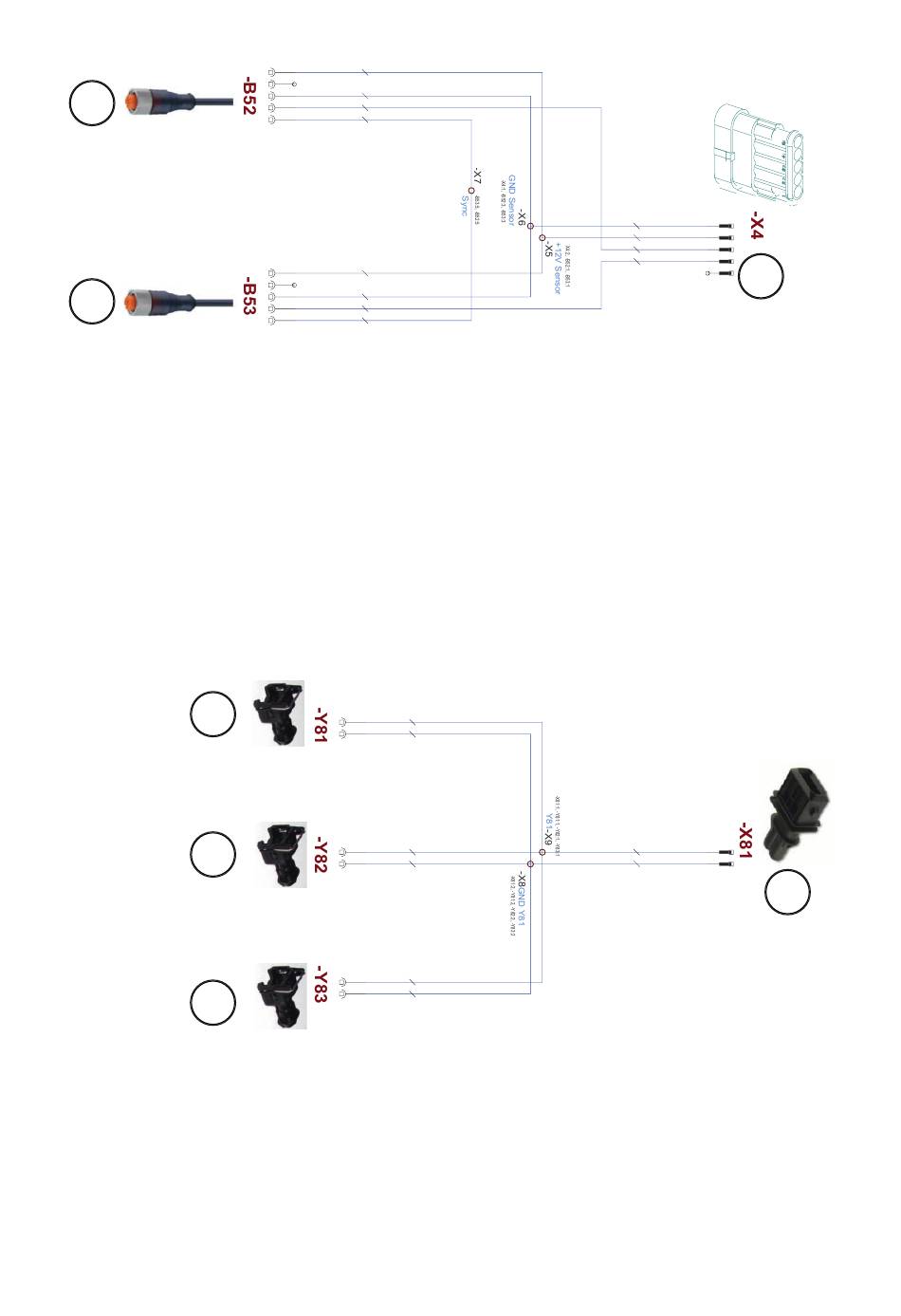

-B52
1/5 +12V Sensor
0.5-WH
2/5
3/5 GND Sensor
0.5-WH
4/5 B52
0.5-WH
5/5 Sync
0.5-WH
M12 Buchse 2m RKT 5-56/2m
-B53
1/5 +12V Sensor
0.5-WH
2/5
3/5 GND Sensor
0.5-WH
4/5 B53
0.5-WH
5/5 Sync
0.5-WH
M12 Buchse 2m RKT 5-56/2m
-Y81
1/2 Y81
1.0-OR
2/2 GND Y81
1.0-OR
JPT 2 Polig Buchse
-Y82
1/2 Y81
1.0-OR
2/2 GND Y81
1.0-OR
JPT 2 Polig Buchse
-Y83
1/2 Y81
1.0-OR
2/2 GND Y81
1.0-OR
JPT 2 Polig Buchse
Original-Betriebsanleitung IMPRESS 3190 V MASTER / PRO
Schaltpläne
-X4
GND Sensor 1/5
0.5-WH
+12V Sensor 2/5
0.5-WH
B52 3/5
0.5-WH
B53 4/5
0.5-WH
3
5/5
282107-1
-X81
Y81 1/2
1.0-OR
GND Y81 2/2
1.0-OR
JPT 2 polig Stecker
4
| 315
