5 Installation

Warning:
- Electrical installation may only be carried out by a skilled electrician.
- Disconnect the power supply before working on the equipment.
- The high voltage generator must be properly earthed. Grounding is required for
proper operation of the equipment and to prevent electric shock when touched.
- Power cables should not be in close vicinity to sharp metal parts; avoid kinks and
sharp bends.
- Keep high power cables separated from lower voltage wiring.
- Metal parts in the vicinity of the charging electrode (s) including machine frames must
be earthed.
Consult the manual of the high voltage generator used for the installation of the generator.

5.1 Inspection

- Make sure the equipment is undamaged and that it is the correct version.
- Check whether the packing slip corresponds with the product received.
If you have any problems and/or questions please contact Simco-Ion or the agent in your area.

5.2 General

All of the IML Spider components are connected using quick connectors. Make a connection by
pushing the cable or electrode connector into the quick connector as far as possible.
Disconnect a connection as follows:
1 Push the ring of the quick connector toward the covering. This will release the connector.
2 Pull the connector out while keeping pressure on the ring.
Covering

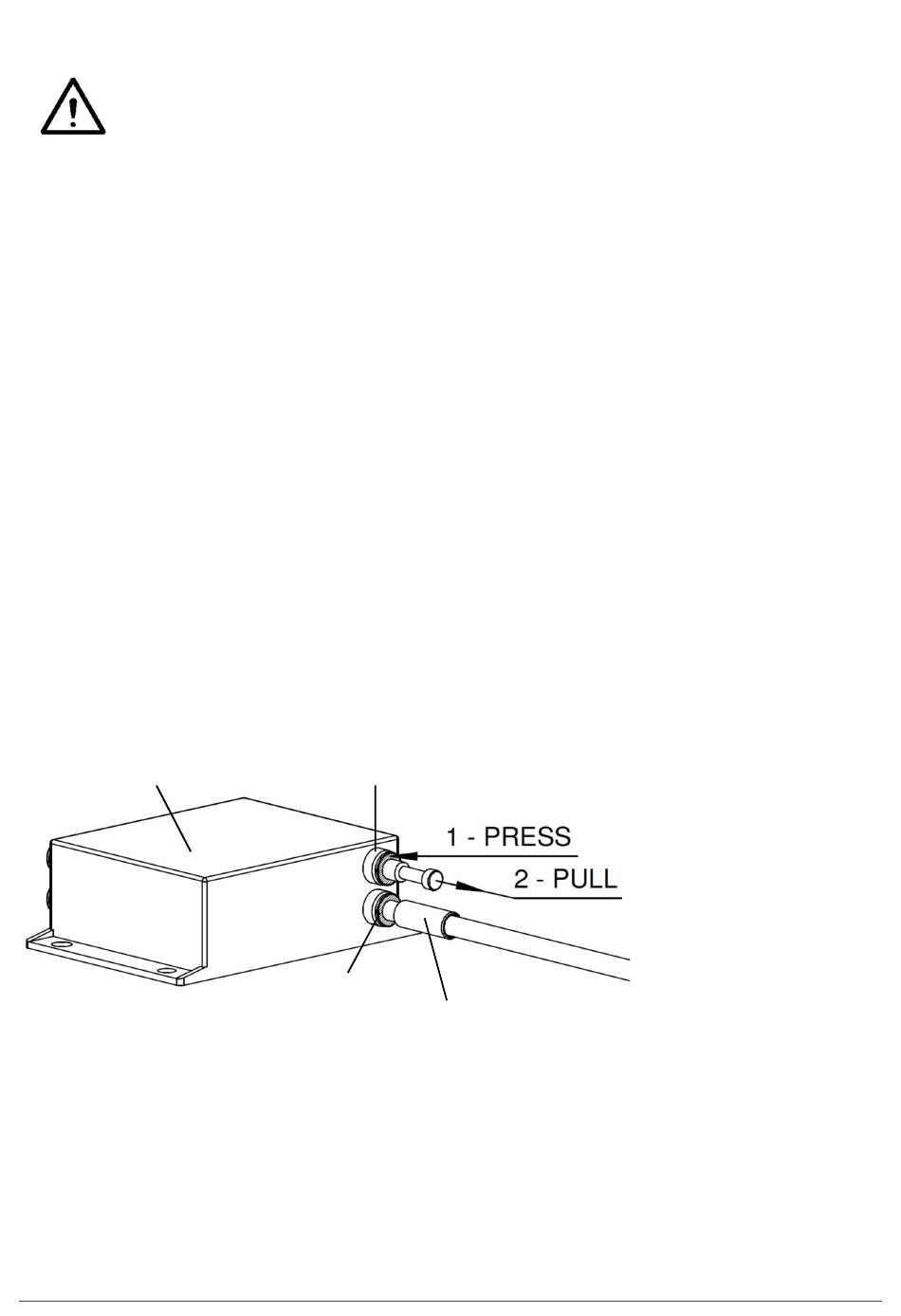

Fig. 3, IML Spider quick connectors
IMLSpider&JunctionBlock_UM_9752098610_NL_D_GB_F_V1_0
Quick connector
Ring
Connector
