SmartVide X | Installation
Safety warnings in the manual
⚠ Wa r n ing
"Warning" safety warnings could result in severe, irreversible
personal injuries or death.
⚠ Ca ut io n
"Caution" safety warnings could result in severe, reversible per-
sonal injuries.
Other warnings in the manual
Notice
"Notice" warnings could result in damage to the machine.
ℹ Information
The tables of "Information" contain advice on how to use the
machine correctly and efficiently.
2 Installation

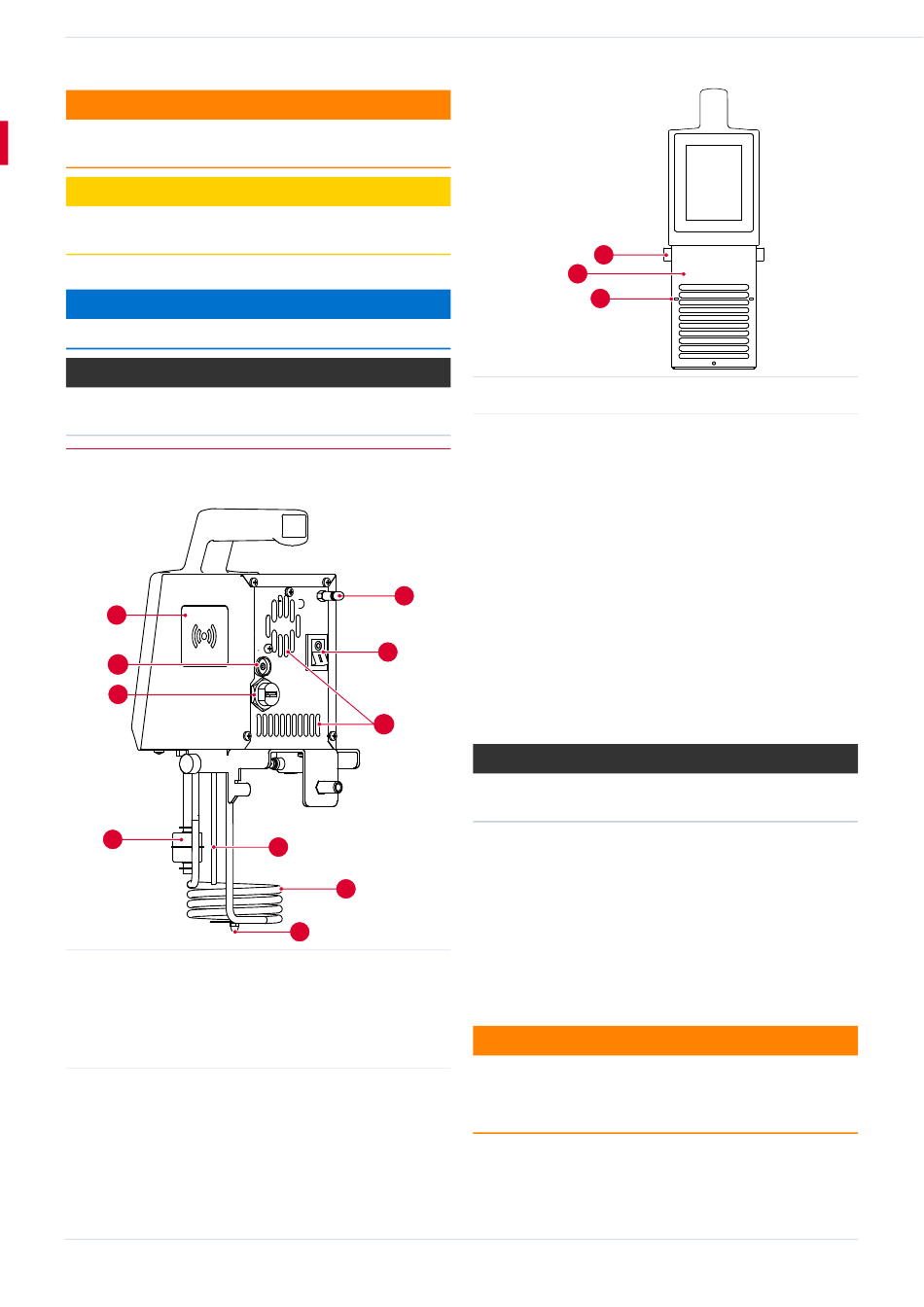

Fig. 1: SmartVide X, main components, part 1
10
9
8
7
1 BT/Wi-Fi antenna
2 On/Off switch
3 Ventilation area
4 Water temperature sensor
5 Heater element
4
1
2
3
4
5
6
6 Stirrer motor
7 Float, minimum level protection
8 USB connection for power-heated
▶
tank [ p. 9 ]
9 Connection jack for temperature
needle probe
10 RFID reader
Fig. 2: SmartVide X, main components, part 2
1
2
3
1 Knurled grating fastener
2 Protective grating
2.1

Supply scope

• Documentation:
– User manual.
– Warranty card and Declaration of Conformity.
– List of spare parts.
– Electrical circuit diagram.
• Machine with assembled components. [Fig. 1]
• Special bag for transporting the machine.
2.2

Preparation for installation

Tools and material required for installation
• Tank with the height dimensions indicated in the appendix at
the end of the manual and a capacity as indicated in
▶
chapter 6 [ p. 11 ].
Space required for installation
ℹ Information
Figure with machine dimensions: see appendix at the end of the
manual.
•
Use this machine in a ventilated kitchen and at an ambient tem-
perature of no more than 40 °C.
• Do not block or obstruct the ventilation slots.
•
Do not place the machine in contact with or near heat sources.
Electrical connections
Before installation, take note of the power input required by the
▶ 6
machine. [ Technical specifications p. 11 ].
2.3 Assembly
⚠ W a rn in g
Risk of serious accidents if the machine cannot be
disconnected or turned off
– When installing the machine, make sure the operator will be able
to reach the switch and plug without difficulty.
1) Place the tank on a flat, level, rigid and non-combustible sur-
face, preferably near a sink or drain for emptying.
2) Attach the machine to the tank as shown in the appendix at the
end of the manual.
3 Minimum level indicator
