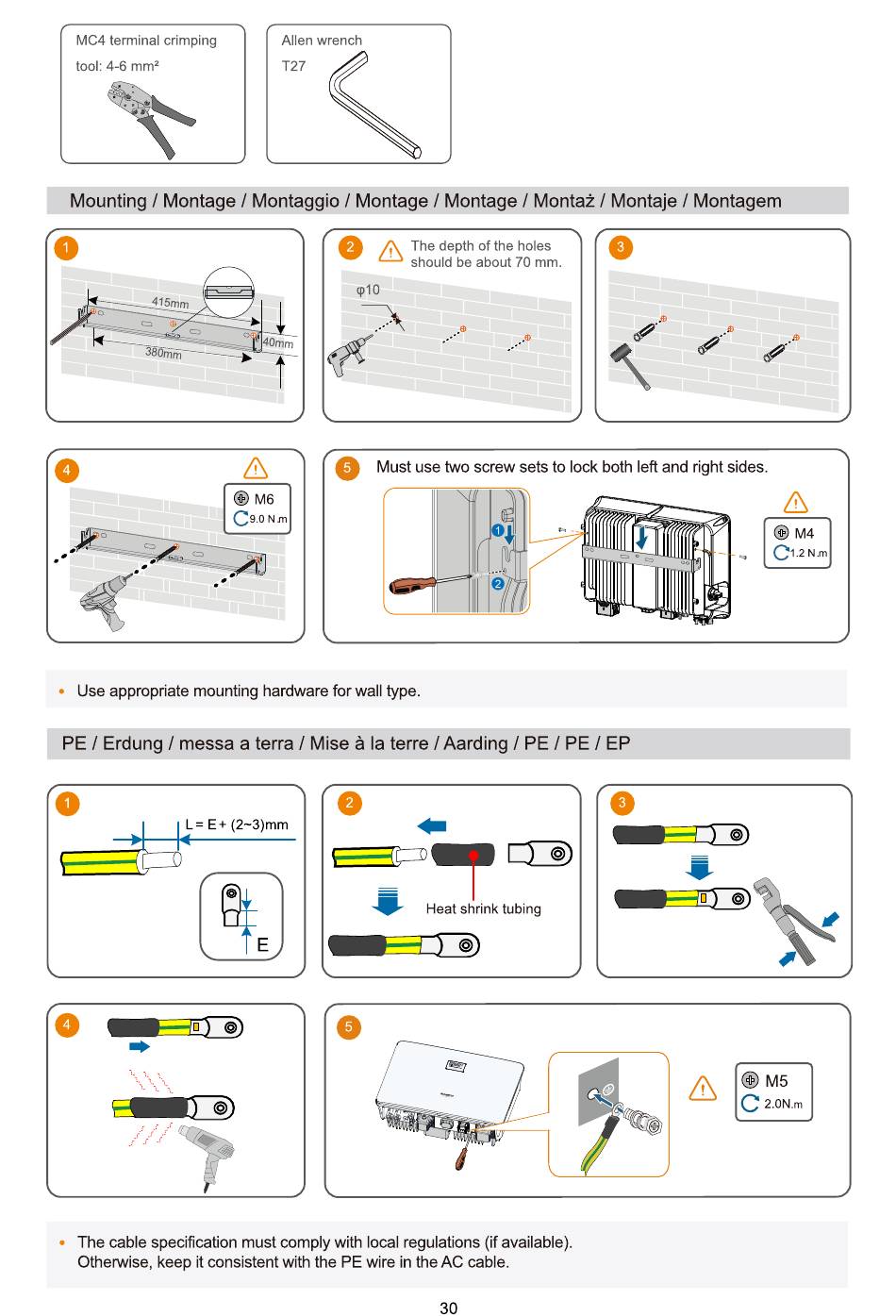

Sungrow SHS3.ORS Kurzanleitung Zur Installation Seite 31

MC4 terminal crimping
tool: 4-6 mrn2
Mounting / Montage / Montaggio / Montage / Montage / Montai / Montaje / Montagem
415mm
Use appropriate mounting hardware for wall type
PE / Erdung / messa a terra / Mise å Ia terre / Aarding / PE / PE / EP
L E+ (2-3)mm
The cable specification must comply with local regulations (if available).
Otherwise, keep it consistent with the PE wire in the AC cable.
Allen wrench
T27
The depth of the holes
should
010
40mm
Must use two screw sets to lock both eft and right sides.
Heat shrink tubing
be about 70 mm
30
