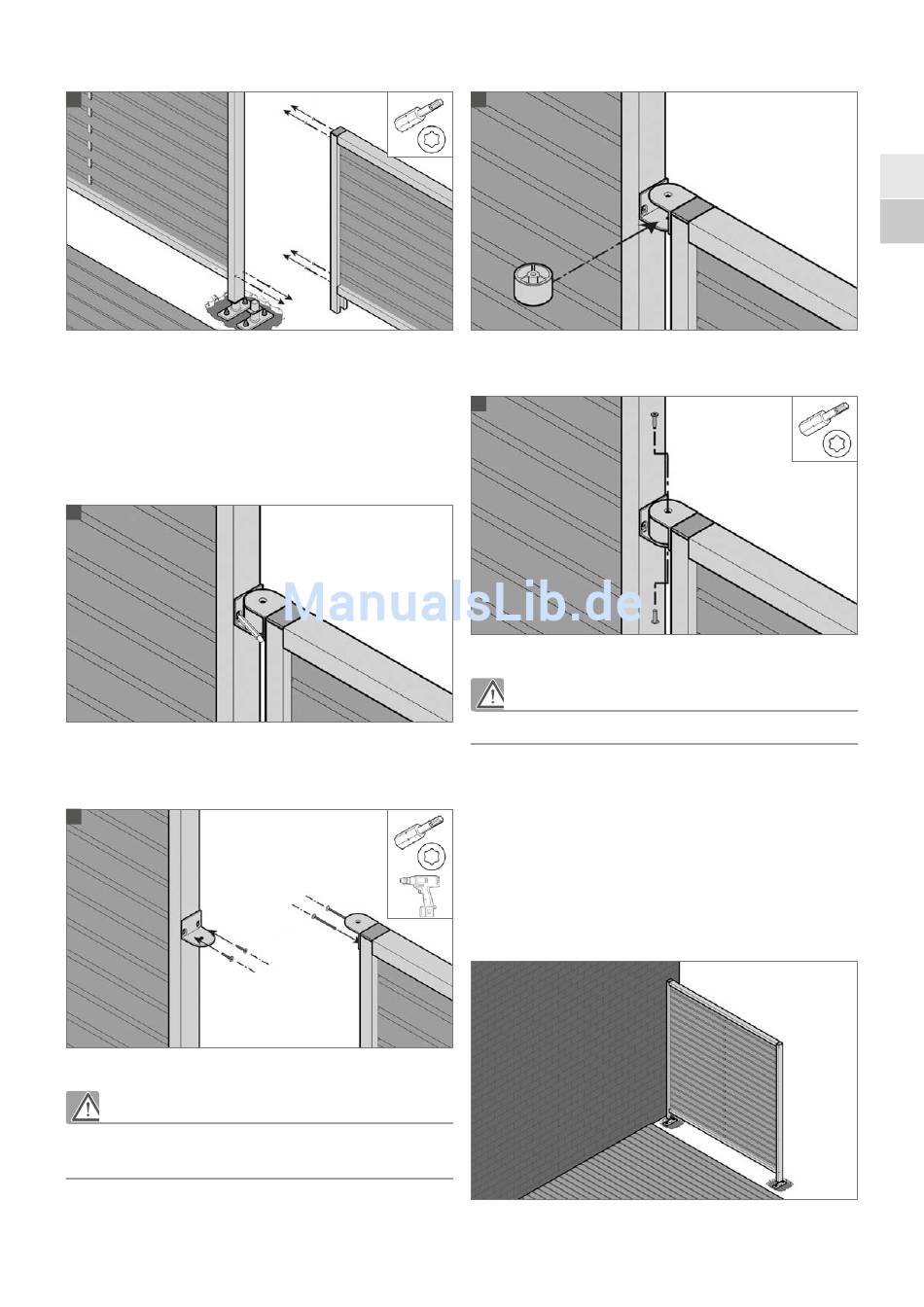

Unscrew the frame screws from the two screen elements and fit the
L-bracket with the frame screws.
1
Push the screen elements into the floor fixtures and hold the connec-
ting element between these parallel to the top cross beam of the 86 x
96 cm element.
Mark the holes on the large element so that these can be drilled. Then
remove the small screen element from the floor fixture again and drill
the holes in the large element.
2
To fix the bracket to the 86 x 96 cm element take the screws enclosed
in the „connecting element" packaging unit.
3
Ensure that the L-bracket pointing upwards is fixed to the small
element, otherwise further assembly will not be possible.
Insert the small screen into the designated floor fixture. The round part
can then be inserted between the two L-brackets.
4
Now screw in the individual parts of the connecting element.
5
Do not forget to screw the elements back into the floor fixture properly!
9 3 3

176 x 186 cm element to a house wall

When connecting screen elements to a house wall the connecting
elements are fixed using the screws from the frame at the height of
the cross beam in each case, for the other screw connections the
appropriate holes must be drilled into the house wall.
