176 X 186 Cm Element To A 86 X 96 Cm Element - Rehau RELAZZO SCREEN Montageanleitung

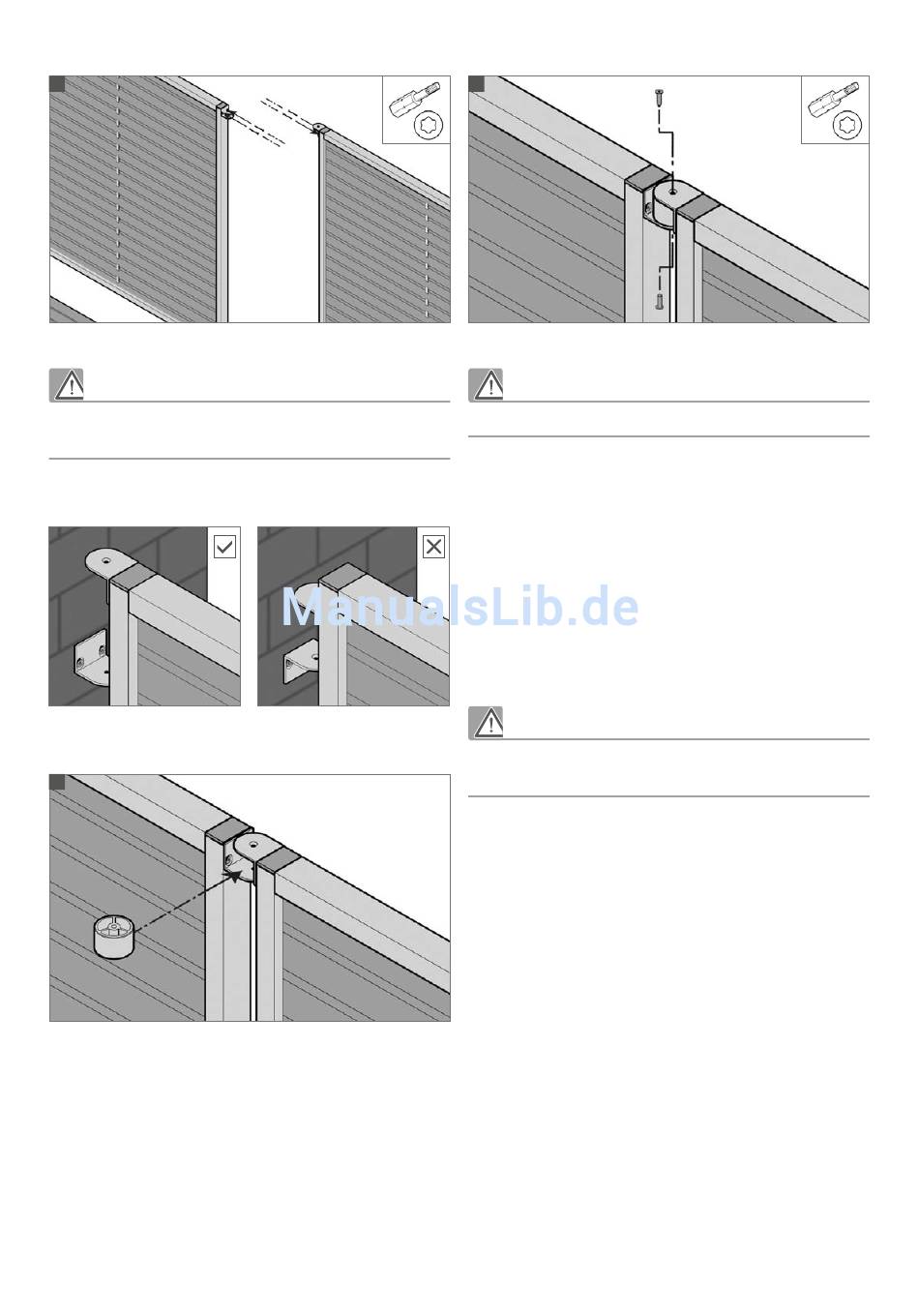

Screw the L-bracket into the two screen elements using the screws
from the frame screw connection.
2
Ensure that the L-bracket pointing upwards is attached to the new
element, otherwise further assembly is not possible.
Push the second screen element onto the floor fixture and then push
the round part in between the two pre-assembled L-brackets.
3
26
The individual parts of the connecting element can now be screwed to
each other.
4
Do not forget to screw the elements back into the floor fixture properly.
9 3 2

176 x 186 cm element to a 86 x 96 cm element

When connecting screen elements of different heights the connecting
elements are fixed in each case to the small element at the height of
the cross beam using the screws from the frame.
For the other screw connections another two holes must be drilled into
the frame of the large element.
The newly drilled holes will always remain visible in the case of a
subsequent change.
