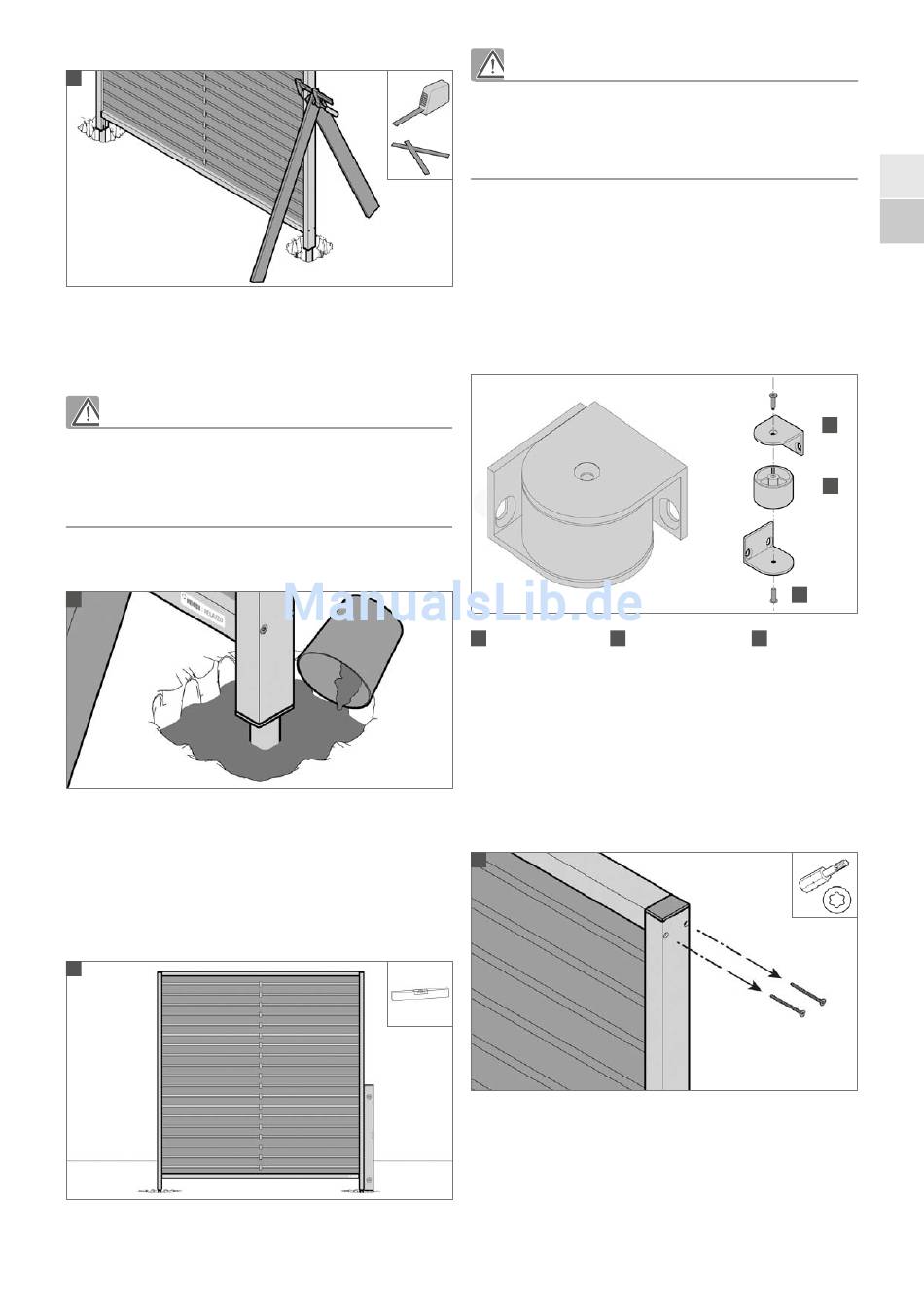

Attach two timber battens with a screw clamp for support.
6
Fill the holes with ready-mixed concrete or a cement-gravel mix (grain
size 0/16 in ratio 1:3), which are both mixed damp.
Ensure that the aluminium frame does not come into contact with
concrete or soil, as otherwise this will attack the aluminium surface and
may cause corrosion.
Wipe away spots of cement with a damp cloth.
7
Remove the screen element from the ground anchors carefully during
the curing time and let the concrete harden around the ground
anchors (at least 24 hours depending on the weather).
Check again that the screen is standing vertically and adjust it if
necessary, as long as the concrete is still damp.
8
The final stability of the concrete is only achieved after a curing time
of approx. 2-3 weeks (depending on the composition of the ground).
Until such time, damage may occur to the foundations in the case of
extreme weather conditions (storms).
9 3

Assembling the connecting element

With the connecting element several screen elements (also diagonally)
can be connected to each other at an equal distance from each other.
Furthermore, assembly to a fixed (house) wall is possible with equal
spacing.
1 2
L-bracket Round part
9 3 1

176 x 186 cm element to a 176 x 186 cm element

When connecting screen elements of the same height the connecting
elements are fixed at the height of the cross beam using the screws
from the frame.
Loosen the frame screws so that the L-bracket can be attached.
1
DE
EN
1
2
3
3
Sleeve bolt
25
