Ground Anchor - Rehau RELAZZO SCREEN Montageanleitung

To shield the base plate and screws from view, e.g. decorative gravel
can be laid up to max. the bottom edge of the aluminium frame.
9 2 2

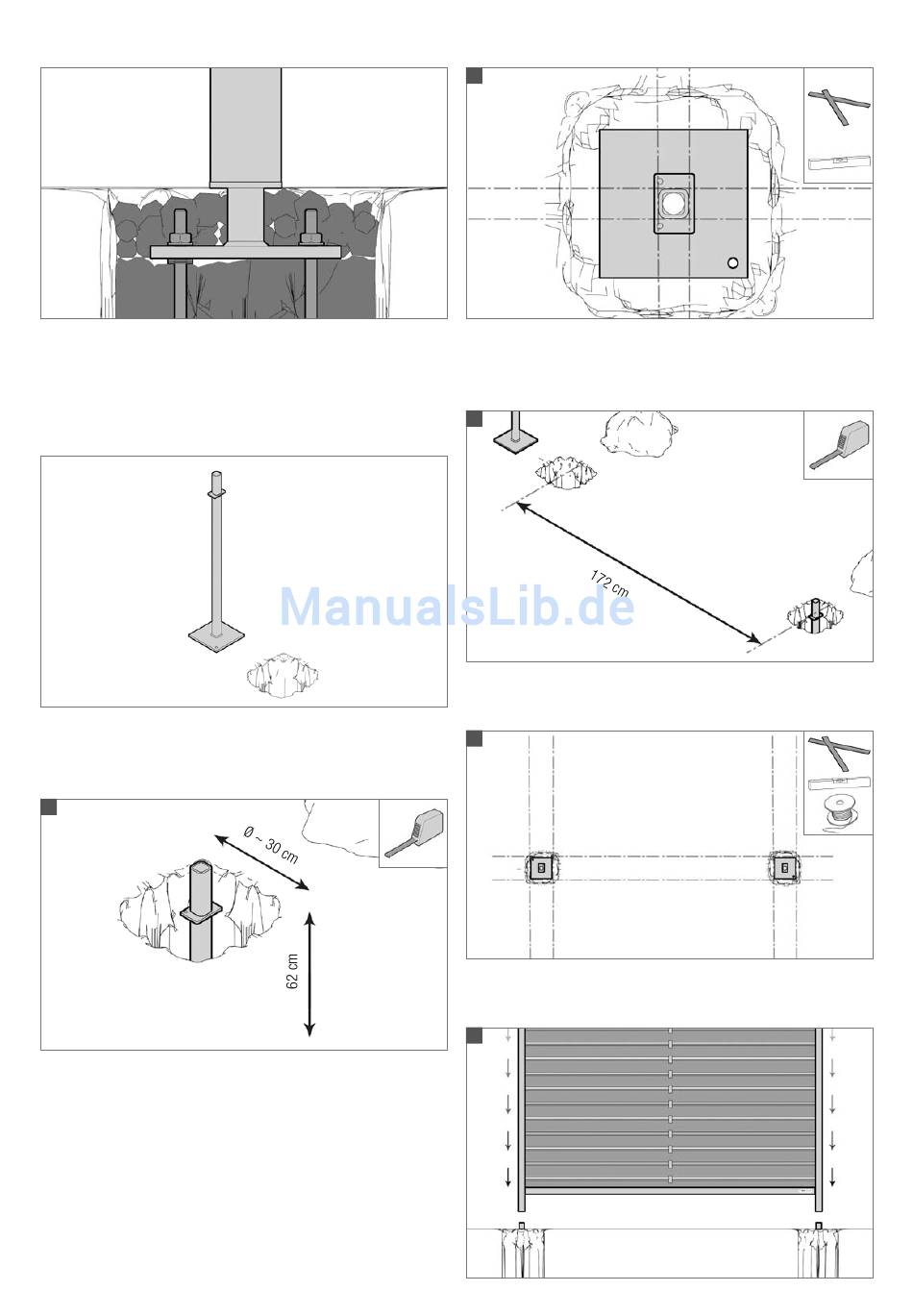

„Ground anchor"

This assembly for fixing the screen element to the ground can be used
if there are no existing concrete foundations.
Dig the holes at a sufficient depth (min. 62 cm) and width
(min. 30 cm x 30 cm).
1
If several screens are to be installed next to each other, it is recommended
that a joint foundation is constructed for the ground anchors next to each
other for two elements.
To do this the hole must be dug with a total diameter of approx. 70 cm.
24
Position the first anchor roughly in place. Timber battens can be used
as assistance here.
2
Dig the second hole at a distance of 172 cm from hole centre to hole
centre.
3
Align these with each other and check again the distance from anchor
to anchor.
4
Push the screen carefully onto the anchors.
5
