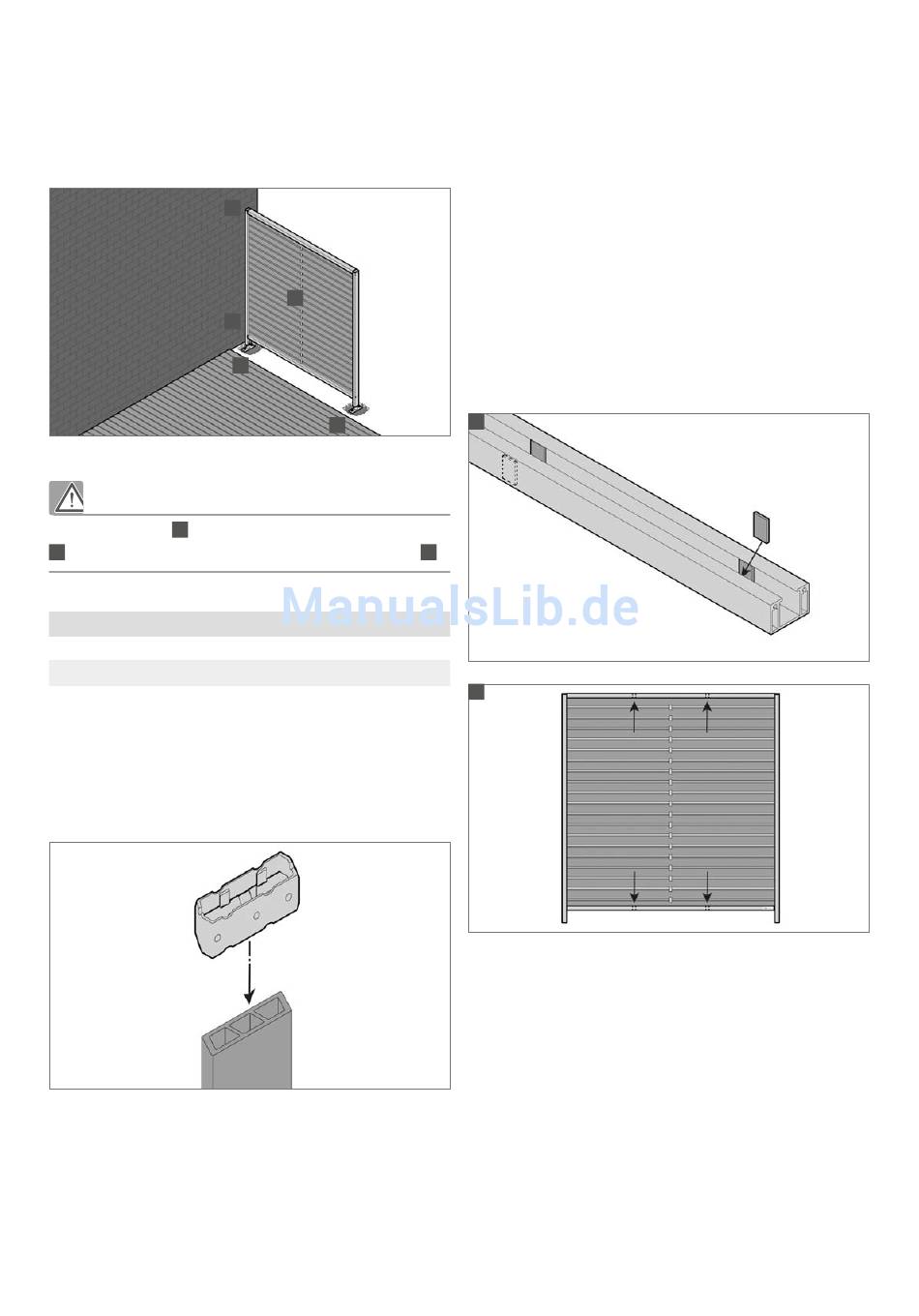

ASSEMBLY

Assembly sequence

1
First of all the screen must be assembled and fixed to the ground
2
, and then finally connected to each other or to the house wall
Assembly
Assembly of the floor fixture
Assembly for dismantling
Connecting the elements to each other
or to the house wall
9 1

Assembly of the RAU-WOOD profiles

Push the lateral spacers onto all WPC profiles on both sides.
20
3
1
3
2
2
From page Under point
22 9.2
29 10
25 9.3
9 1 1

Horizontal running direction

The internal frame spacers are self-adhesive on one side. To assemble
remove the protective foil and press the adhesive surface of the
spacer onto the inside of the aluminium frame. Do not touch the
adhesive surface itself when doing this if possible. The spacers should
be evenly spaced across the length of the aluminium profile:
2 pcs. in the centre on an 86 cm wide element and a total of 4 x on a
176 cm wide element (after approx. a third of the length of the
aluminium profile). Two frame spacers must always be fitted exactly
opposite each other.
1
3
.
2
