Parts List - Rehau RELAZZO SCREEN Montageanleitung

8

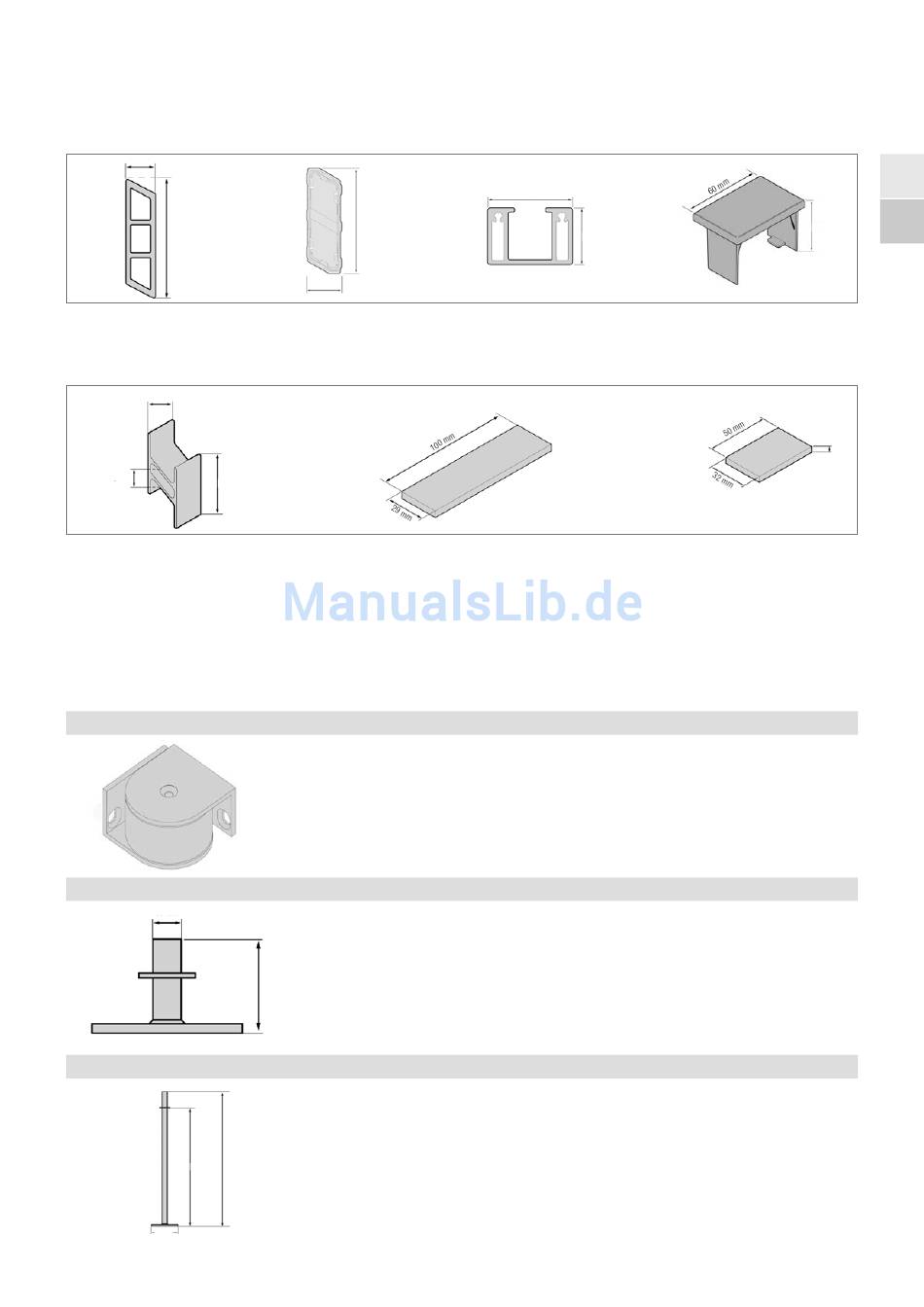

pARTS LIST

20 mm
81.2 mm
WPC profile
10 mm
13.2 mm
43 mm
Centre spacer
* Fitting required for 176 x 98 cm and
176 x 186 cm in horizontal running direction
Accessories available separately
Connecting element
Floor fixture - Base plate (pair)
30 mm
Floor fixture - Ground anchor (pair)
760 mm
660 mm
100 mm
92.5 mm
31 mm
Lateral spacer
160 mm
60 mm
40 mm
Outer frame (cross and supporting beams)
Lower spacer
Connecting element is fixed to the frame with the frame screws
Included in the scope of delivery:
- Screws for fixture when a new hole is drilled
(assembly step 4.3.2 Connecting a high screen element to a lower one)
The base plate is to be used for fixing the screen to an existing foundation
and is screwed to the frame.
Included in the scope of delivery:
- Screws for fixing the screen to the frame
- 2 threaded bolts
- 2 washers incl. nuts
The ground anchor is to be used for new foundations, which are
screwed to the frame after hardening
Included in the scope of delivery:
- Screws for fixing the screen to the frame
DE
EN
37 mm
End caps
5 mm
Internal frame spacer
