15. Display
Displays the reception frequency, reception band, reception mode,
MEMORY indicator, preset channels, input selector mode, and. MUTE
indicator.
STEREO: The STEREO indicator appears while FM stereo broadcast is
received.
SCM (Station Call Memory): This indicator appears when a broadcast
station name is entered.
16. PRESET STATION Buttons
Up to 30 FM and AM stations can be memorized under these buttons.
t

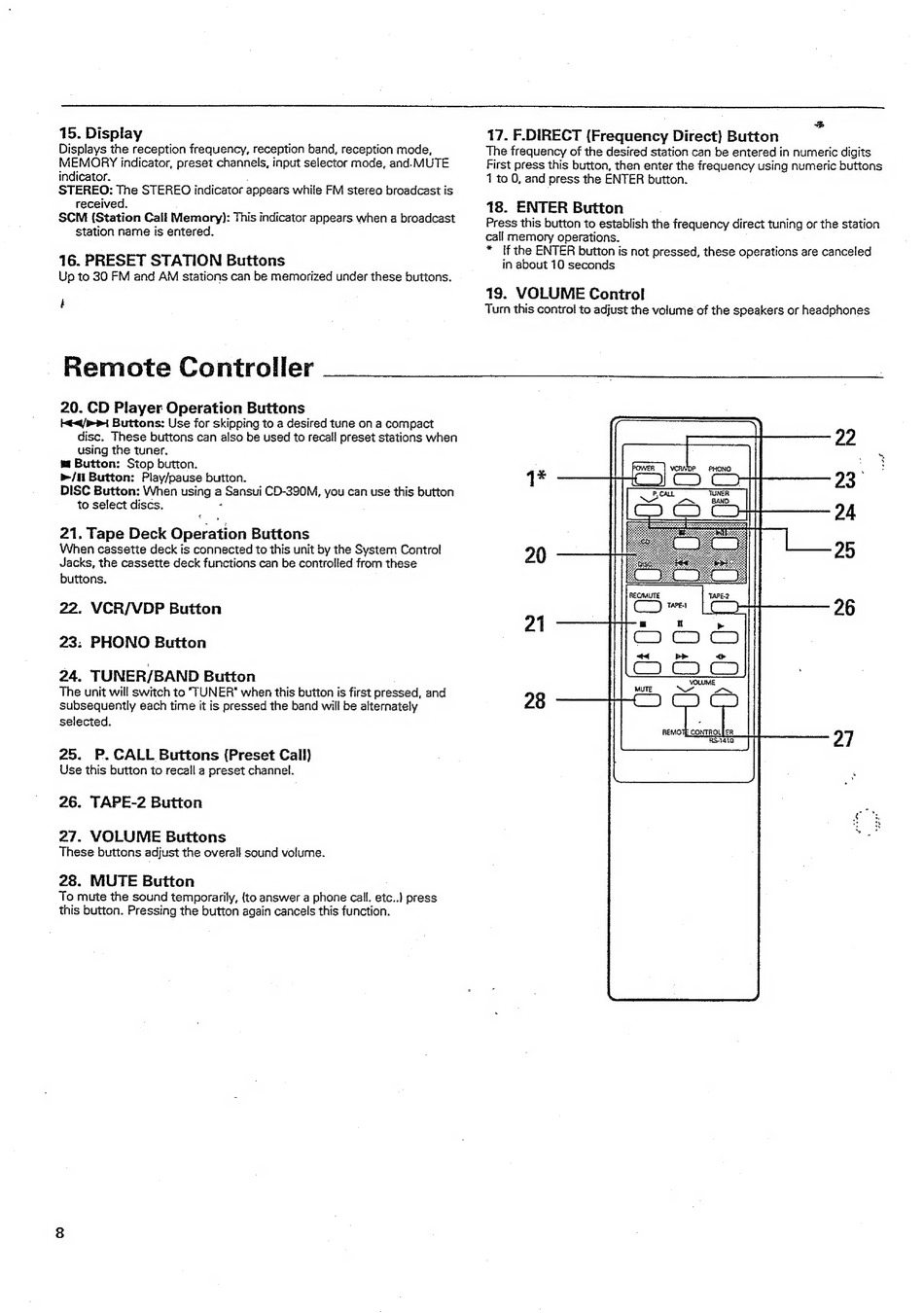

Remote Controller
20. CD Player Operation Buttons
t<d/>ri Buttons: Use for skipping to a desired tune on a compact
disc. These buttons can also be used to recall preset stations when
using the tuner.
ta Button: Stop button.
»>/i Button: Play/pause button.
DISC Button: When using a Sansui CD-390M, you can use this button
to select discs, *
21. Tape Deck Operation Buttons
When cassette deck is connected to this unit by the System Control
Jacks, the cassette deck functions can be controlled from these
buttons.
22. VCR/VDP Button
23: PHONO Button
24, TUNER/BAND Button
The unit will switch to "TUNER* when this button is first pressed, and
subsequently each time it is pressed the band will be alternately
selected.
25. P. CALL Buttons (Preset Call)
Use this button to recall a preset channel.
26. TAPE-2 Button
27. VOLUME Buttons
These buttons adjust the overall sound volume.
28. MUTE Button
To mute the sound temporarily, (to answer a phone call. etc..) press
this button. Pressing the button again cancels this function.
17. F.DIRECT (Frequency Direct) Button
The frequency of the desired station can be entered in numeric digits
First press this button, then enter the frequency using numeric buttons
1 to 0, and press the ENTER button.
18. ENTER Button
Press this button to establish the frequency direct tuning or the station
call memory operations.
* tf the ENTER button is not pressed, these operations are canceled
in about 10 seconds
19. VOLUME Control
Turn this control to adjust the volume of the speakers or headphones
