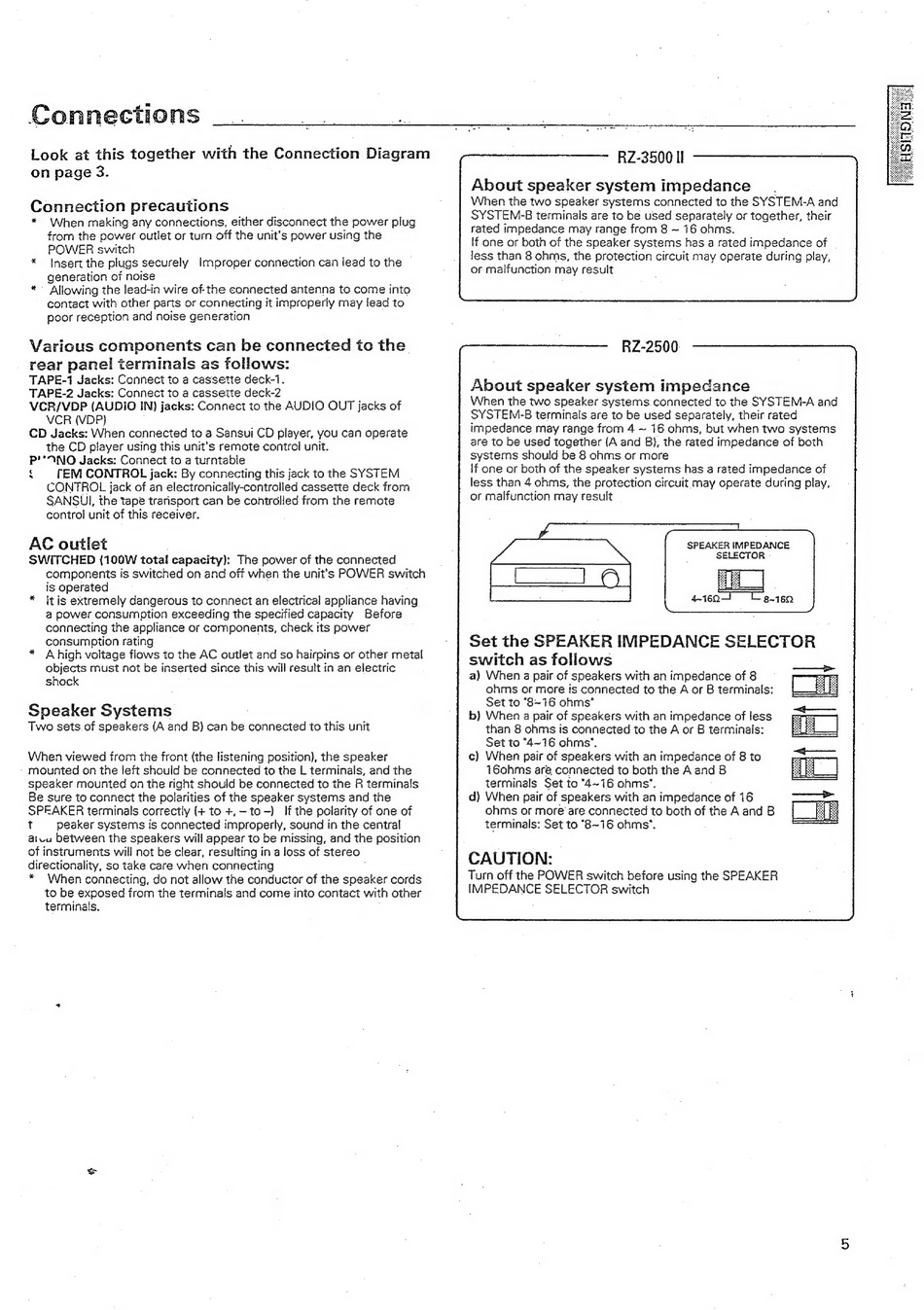

Connections
Look at this together with the Connection Diagram
on page 3.
Connection precautions
*
When making any connections, either disconnect the power plug
from the power outlet or turn off the unit's power using the
POWER switch
*
Insert the plugs securely
Improper connection can lead to the
generation of noise
*
Allowing the lead-in wire of-the connected antenna to come into
contact with other parts or connecting it improperly may lead to
poor reception and noise generation
Various components can be connected to the
rear panel terminals as follows:
TAPE-1 Jacks: Connect to a cassette deck-1.
TAPE-2 Jacks: Connect to a cassette deck-2
VCR/VDP (AUDIO IN) jacks: Connect to the AUDIO OUT jacks of
VCR (VDP)
CD Jacks: When connected to a Sansui CD player, you can operate
the CD player using this unit's remote control unit.
P''NO Jacks: Connect to a turntable
£
FEM CONTROL jack: By connecting this jack to the SYSTEM
CONTROL jack of an electronically-controlled cassette deck from
SANSUI, the tape trarisport can be controlled from the remote
control unit of this receiver.
AC outlet
SWITCHED (100W total capacity): The power of the connected
components is switched on and off when the unit's POWER switch
is operated
*
It is extremely dangerous to connect an electrical appliance having
a power consumption exceeding the specified capacity
Before
connecting the appliance or components, check its power
consumption rating
*
Ahigh voltage flows to the AC outlet and so hairpins or other metal
objects must not be inserted since this will result in an electric
shock
Speaker Systems
Two sets. of speakers (A and B) can be connected to this unit
When viewed from the front (the listening position), the speaker
mounted on the left should be connected to the L terminals, and the
speaker mounted on the right should be connected to the R terminals
Be sure to connect the polarities of the speaker systems and the
SPEAKER terminals correctly (+ to +,-to-)
If the polarity of one of
t
peaker systems is connected improperly, sound in the central
atca between the speakers will appear to be missing, and the position
of instruments will not be clear, resulting in a loss of stereo
directionality, so take care when connecting
*
When connecting, do not allow the conductor of the speaker cords
to be exposed from the terminals and come into contact with other
terminals.
RZ-3500 ll
About speaker system impedance.
When the two speaker systems connected to the SYSTEM-A and
SYSTEM-B terminals are to be used separately or together, their
rated impedance may range from 8 ~ 16 ohms.
If one or both of the speaker systems has a rated impedance of
less than 8 ohms, the protection circuit may operate during play,
or malfunction may result
RZ-2500
About speaker system impedance
When the two speaker systems connected to the SYSTEM-A and
SYSTEM-B terminals are to be used separately, their rated
impedance may range from 4 ~ 16 ohms, but when two systems
are to be used together (A and B), the rated impedance of both
systems should be 8 ohms or more
\f one or both of the speaker systems has a rated impedance of
less than 4 ohms, the protection circuit may operate during play,
or malfunction may result
SPEAKER IMPEDANCE
SELECTOR
od
Set the SPEAKER IMPEDANCE SELECTOR
switch as follows
a) When a pair of speakers with an impedance of 8
ohms or more is connected to the A or B terminals:
Set to "8~16 ohms"
b) When a pair of speakers with an impedance of less
than 8 ohms is connected to the A or B terminals:
Set to "4~16 ohms".
c) When pair of speakers with an impedance of 8 to
16ohms are connected to both the A and B
terminals Set to "4~16 ohms".
d) When pair of speakers with an impedance of 16
ohms or more are connected to both of the A and B
terminals: Set to "8~16 ohms'.
CAUTION:
Turn off the POWER switch before using the SPEAKER
IMPEDANCE SELECTOR switch
