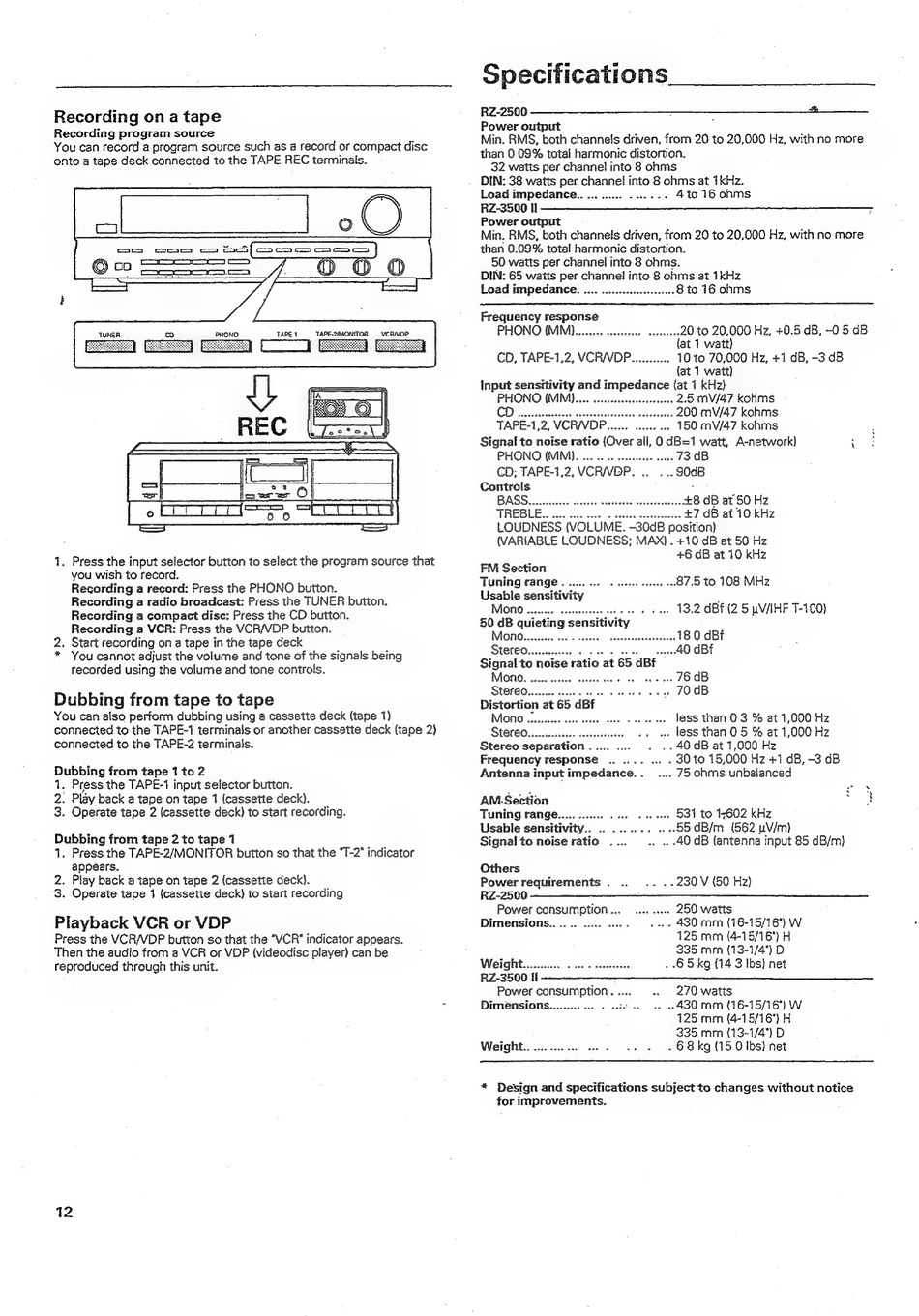

Recording ona tape
Recording program source
You can record a program source such as a record or compact disc
onto a tape deck connected to the TAPE REC terminals.
TAPE 1
TAPE-2MONTTOR
kO2
© |
senerecoenne
©
esa
1. Press the input selector button to select the program source that
you wish to record.
Recording a record: Press the PHONO button.
Recording a radio broadcast: Press the TUNER button.
Recording a compact disc: Press the CD button.
Recording a VCR: Press the VCR/VDP button.
2. Start recording on a tape in the tape deck
* You cannot adjust the volume and tone of the signals being
recorded using the volume and tone controls.
Dubbing from tape to tape
You can also perform dubbing using a cassette deck (tape 1)
connected to the TAPE-1 terminals or another cassette deck (tape 2)
connected to the TAPE-2 terminals.
Dubbing from tape 1 to 2
1. Press the TAPE-1 input selector button.
2. Play back a tape on tape 1 (cassette deck).
3. Operate tape 2 (cassette deck) to start recording.
Dubbing from tape 2 to tape 1
1. Press the TAPE-2/MONITOR button so that the "T-2" indicator
appears.
2. Play back a tape on tape 2 (cassette deck).
3. Operate tape 1 (cassette deck) to start recording
Playback VCR or VDP
Press the VCR/VDP button so that the "VCR" indicator appears.
Then the audio from a VCR or VDP (videodisc player) can be
reproduced through this unit.
12
Specifications
RZ-2500 ——________—_—_________________»___——
Power output
:
Min. RMS, both channels driven, from 20 to 20,000 Hz, with no more
than 0 09% total harmonic distortion.
32 watts per channel into 8 ohms
DIN: 38 watts per channel into 8 ohms at 1kHz.
Load impedance..... ..............
4to 16 ohms
RZ-3500 Il
Power output
Min, RMS, both channels driven, from 20 to 20,000 Hz, with no more
than 0.09% total harmonic distortion.
50 watts per channel into 8 ohms.
DIN: 65 watts per channel! into 8 ohms at 1kHz
Load impedance. .... .........eeeeeee 8 to 16 ohms
Frequency response
PHONO (MM)........ ccssccese ceseeeees 20 to 20,000 Hz, +0.5 dB, -05 dB
(at 1 watt)
CD, TAPE-1,2, VCR/VDP........... 10 to 70,000 Hz, +1 dB, -3 dB
(at 1 watt)
Input sensitivity and impedance {at 1 kHz)
PHONO (MM)... ..cscsssesesceseseeee 2.5 mV/47 kohms
CD so ceatisacdasecesvcrseieeadeszie
ceaseless 200 mV/47 kohms
TAPE-1,2, VCR/VDP......
cseee eee 150 mV/47 kohms
Signal to noise ratio (Over all, 0 dB=1 watt, A-network)
;:
PHONO (MM). ... 0... eeseeenee eens 73 OB
CD; TAPE-1,2, VCR/VDOP. ..
...90dB
Controls
:
BASS x. cetsees: aise Ratbsoieneetee +8 dB at 50 Hz
TREBLE..
.. £7 dB at 10 kHz
LOUDNESS. (VOLUME. ~30dB position)
{VARIABLE LOUDNESS; MAX) . +10 dB at 50 Hz
+6 dB at 10 kHz
FM Section
Tuning range. ..... ...
Usable sensitivity
prédesadvorsaseaed 87.5 to 108 MHz
Mono ..
sa
. 13.2 dBF (2 5 pV/IHF T-100)
50 dB quieting g sensitivity
Mono...
d j Seacientd
Mawetaceeaiundetnes 18 0 dBf
Stereo...
ee 40 dBf
Signal to noise 'ratio 'at 65 dBE
Mono. .
Wibwiecie
2 saa TOUR
Stereo...
. 70 dB
Distortion at 65 'dB
Mono ..
ss
..
less than 03 % at 1,000 Hz
Stereo... USSos dead eeadenveeesuwsses
... less than 05 % at 1,000 Hz
Stereo separation. .... ....
. . 40 dB at 1,000 Hz
. 30 to 15,000 Hz +1 dB, -3 dB
.. 75 ohms unbalanced
Frequency response
.. ....
...
Antenna input impedance. .
AM Section
Tuning range..... 2.0.0.0...
0... ++. 537 to 1602 kHz
Usable sensitivity...
.......
....55dB/m
(562 uV/m)
Signal to noise ratio
....
.. 40 dB (antenna input 85 dB/m)
Others
Power requirements .
. -230 V (50 Hz)
RZ-2500
Power consumption ...
ables
250 watts
. -. - 480 mm (16-15/16") W
125 mm (4-15/16") H
335 mm (13-1/4") D
Dimensions.. .. .. ..... 1...
Weight...
6 cee eters
. 65 kg (14 3 lbs) net
RZ-3500 Il
Power consumption.
....
270 watts
Dimensions............0.
006 -
--430 mm (16-15/16"} W
125 mm (4-15/16") H
335 mm (13-1/4") D
Weight. .... .... ...
-
68 kg (15 0 Ibs) net
*
Design and specifications subject to changes without notice
for improvements.
