Mains supply cord
QACCV O001AGZZ
Bushing =
LBSHCOO04AGZZ
QACCBO0S2AF 09
LBSHCO0O 2AGZZ
(A) : Brown
(B) : Blue
OQACCLOOO1AFZZ
LBSHCOOO7AF ZZ
(A) : Brand stamp
(B) : Projection Stripe
QACCZO002T AOF
LBSHCOOO7AFZZ
(A) : Brown
(B) : Brown
OACCZO053AF00
LBSHCOO07AFZZ
(A) : Black
(B) : Black
ACIIO /220 /240V
50/60Hz
To POWER SUPPLY PWB
(CNPI)
VOLTAGE ak
SELECTOR TIMER SOCKET
To LOGIC PWB
(CNP47)
To METER PWB
(CNP-TR2)
YELLOW
CNS-TR2
YELLOW
T5Ol
POWER
TRANSFORMER
To POWER SUPPLY PWB
(CNP-TRI)
CNS-TRI
swi4(A,B)
Power
switch

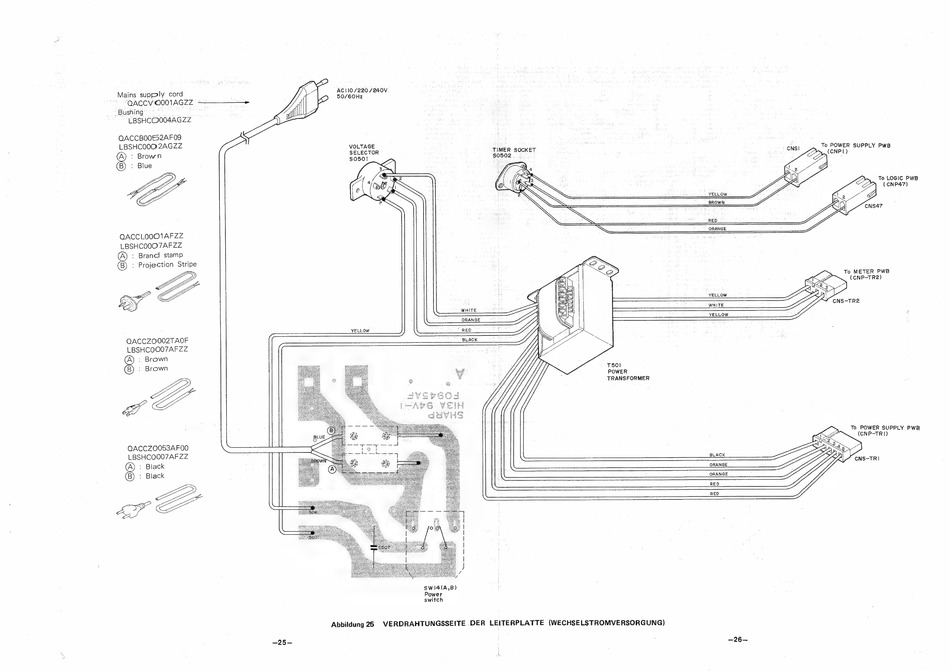

Abbildung 25. VERDRAHTUNGSSEITE DER LEITERPLATTE (WECHSELSTROMVERSORGUNG)
