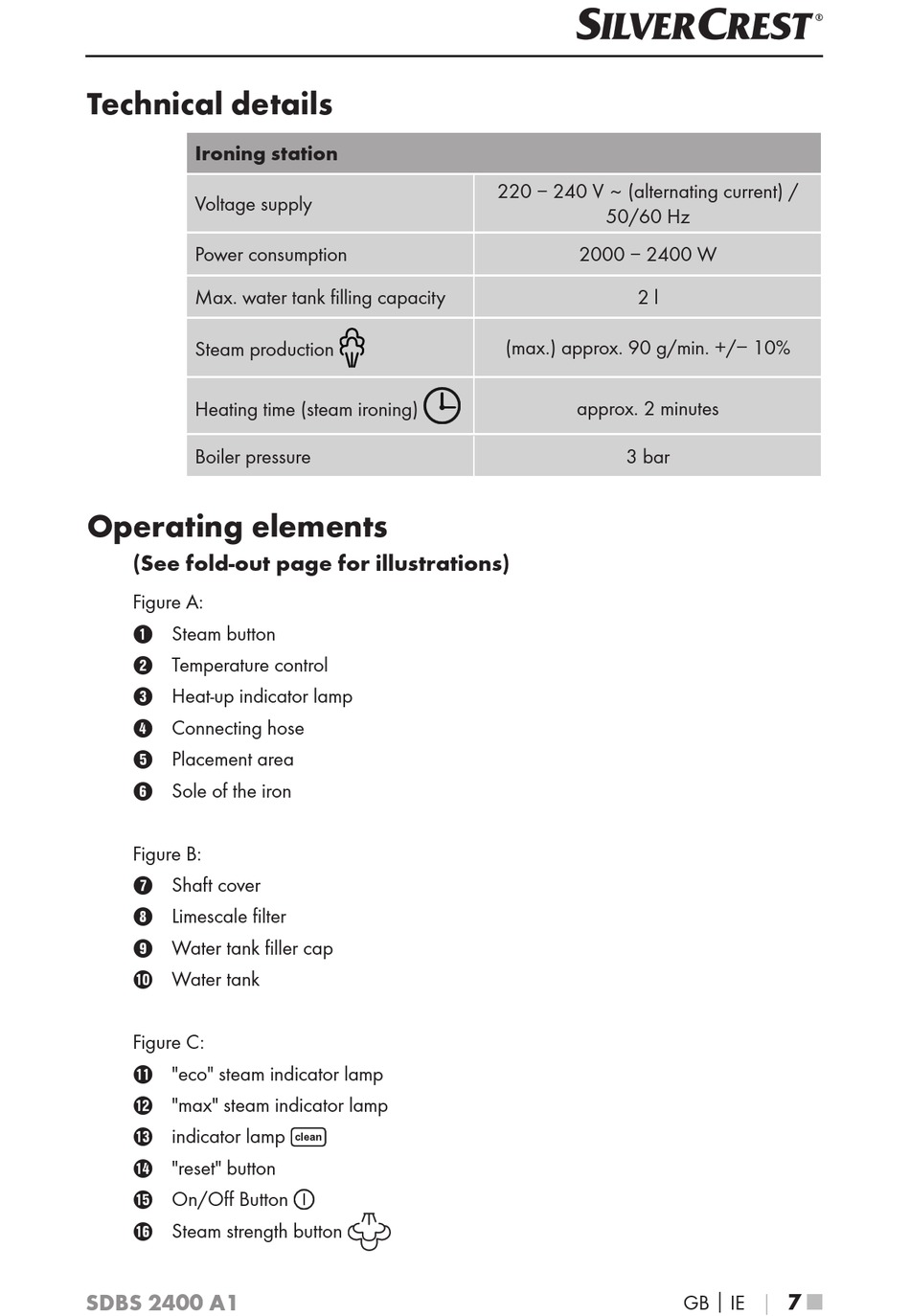

Technical Details; Operating Elements - Silvercrest SDBS 2400 A1 Kurzanleitung

Technical details

Ironing station
Voltage supply
Power consumption
Max . water tank filling capacity
Steam production
Heating time (steam ironing)
Boiler pressure

Operating elements

(See fold-out page for illustrations)
Figure A:
1 Steam button
2 Temperature control
3 Heat-up indicator lamp
4 Connecting hose
5 Placement area
6 Sole of the iron
Figure B:
7 Shaft cover
8 Limescale filter
9 Water tank filler cap
0 Water tank
Figure C:
q "eco" steam indicator lamp
w "max" steam indicator lamp
e indicator lamp
r "reset" button
t On/Off Button
z Steam strength button
SDBS 2400 A1
220 – 240 V ~ (alternating current) /
50/60 Hz
2000 – 2400 W
2 l
(max .) approx . 90 g/min . +/− 10%
approx . 2 minutes
3 bar
GB │ IE 7 ■
│
