Fronius Magic Wave 2600 Umbauanleitung Seite 6

Mount the power
source

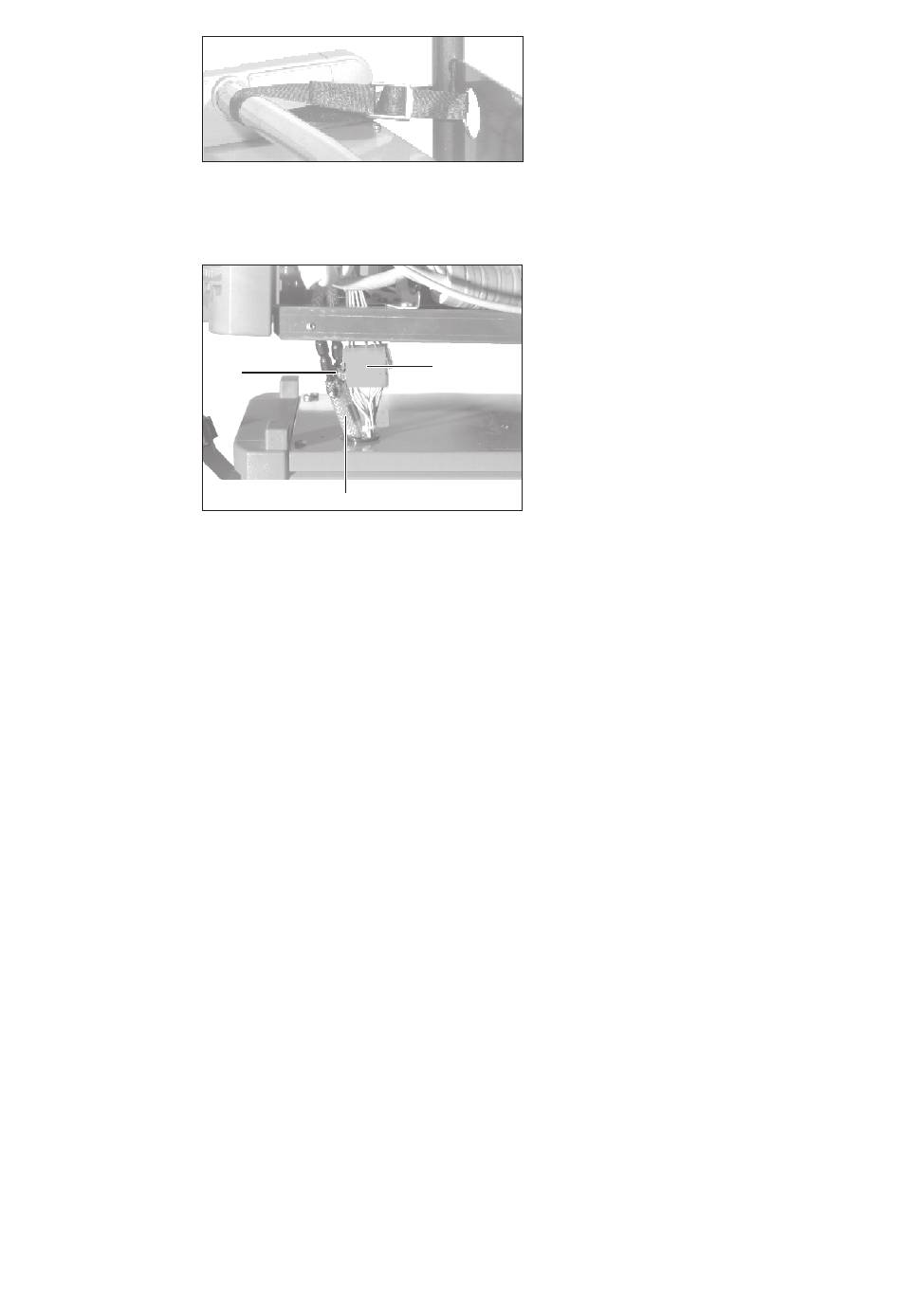

Fig. 4 Mount the power source onto the cooling
unit
Mounting the
cooling unit with
the MW / TT 2600
Fig. 5 Cooling unit with mounting rails
Important! Make sure that there are no kinks in the hoses!
(B)
(A)
1. Mount the power source onto the
cooling unit (see "Mounting the
cooling unit with the MW/TT 2600")
2. Using the two belts (1), strap the
power source firmly to the trolley
(fig.4)
1. Unscrew the protective cover on the
underside of the MW / TT 2600
2. Pull
- water forward-flow hose (A),
- water return-flow hose (B) (red)
(C)
- X10 plug connector (C)
as far out of the machine as possible
3. Connect
- water forward-flow hose (A),
- water return-flow hose (B) (red)
- plug connector (C)
of the welding machine to those of the
cooling unit (fig.5)
4. Place the MW / TT 2600 onto the
cooling unit and fix with the bolts
supplied
2
