EASY trolley reinforcement
Safety
Scope of supply

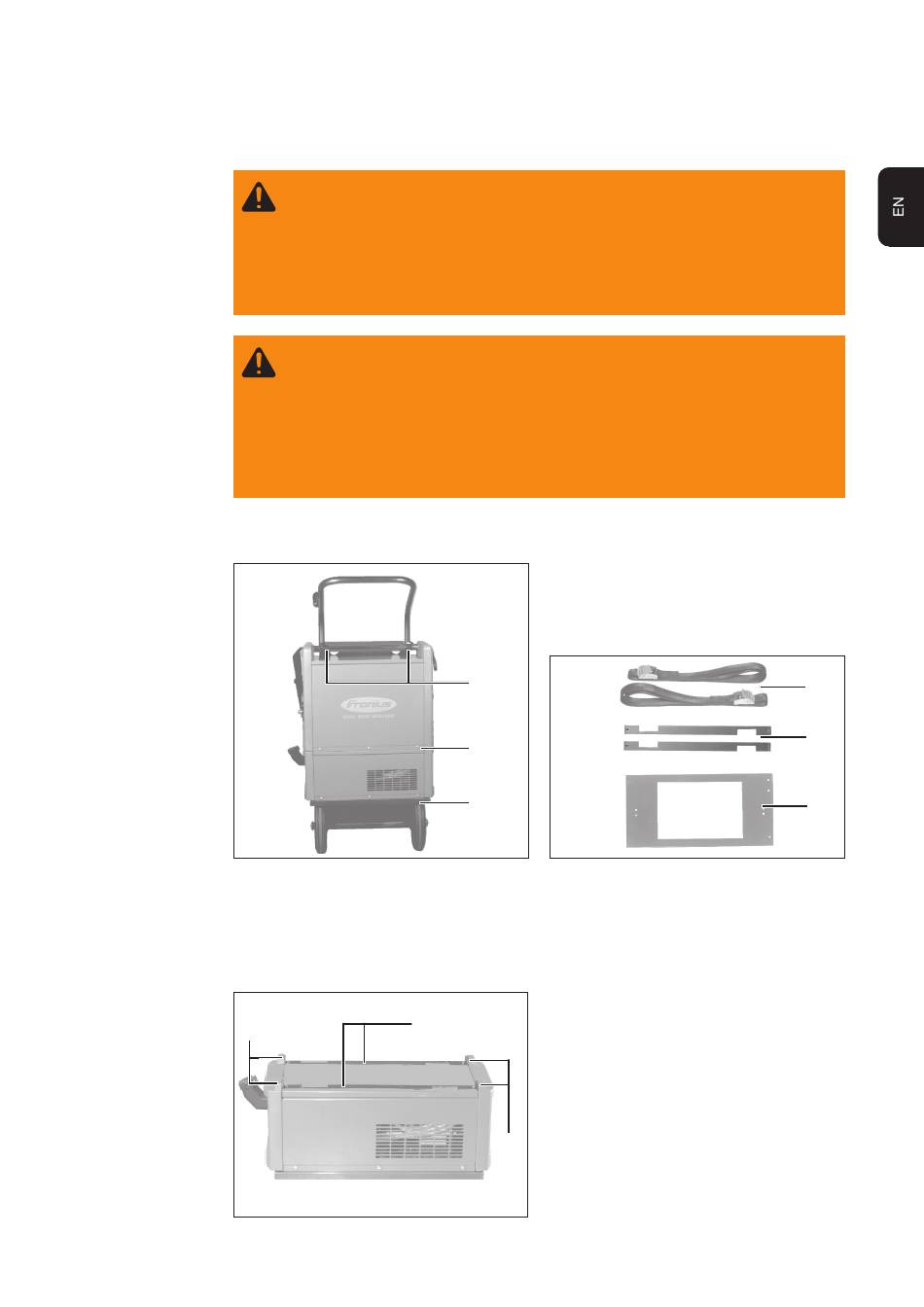

Fig. 1
Mount the rein- 1.
forcement 2.
(4)
Fig. 3 Mount connecting plate
WARNING! Incorrect operation or shoddy workmanship can cause serious
injury or damage. All functions described in this document may only be carried
out by trained and qualified personnel after they have fully read and understood
the following documents:
- this document
- all documents relating to the system components, especially the safety
rules
WARNING! An electric shock can be fatal. Before starting work:
- turn the power source mains switch to the "O" position
- disconnect the power source from the mains
- ensure that the power source remains disconnected from the mains until
all work has been completed
After opening the device, use a suitable measuring instrument to check that
electrically charged components (e.g. capacitors) have been discharged.
Dismount the power source and the cooling unit from the trolley.
Mount the reinforcement plate (3), together with the standard connecting plate.
(2)
Item Article
(1) Belt
(2) Connecting plate long
Connecting plate short
(3) Reinforcement
(1)
(2)
(3)
Fig. 2 Scope of supply
Only applies to water-cooled machines:
1. Mount the cooling unit on the trolley
2. Unscrew all four M5 nuts (4) from the
top of the cooling unit (fig.3)
3. Screw the connecting plates (2) onto
the top of the cooling unit
-using M5 nuts (4) (fig.3)
(4)
1
N° of pcs.
4
2
2
1
(1)
(2)
(3)
