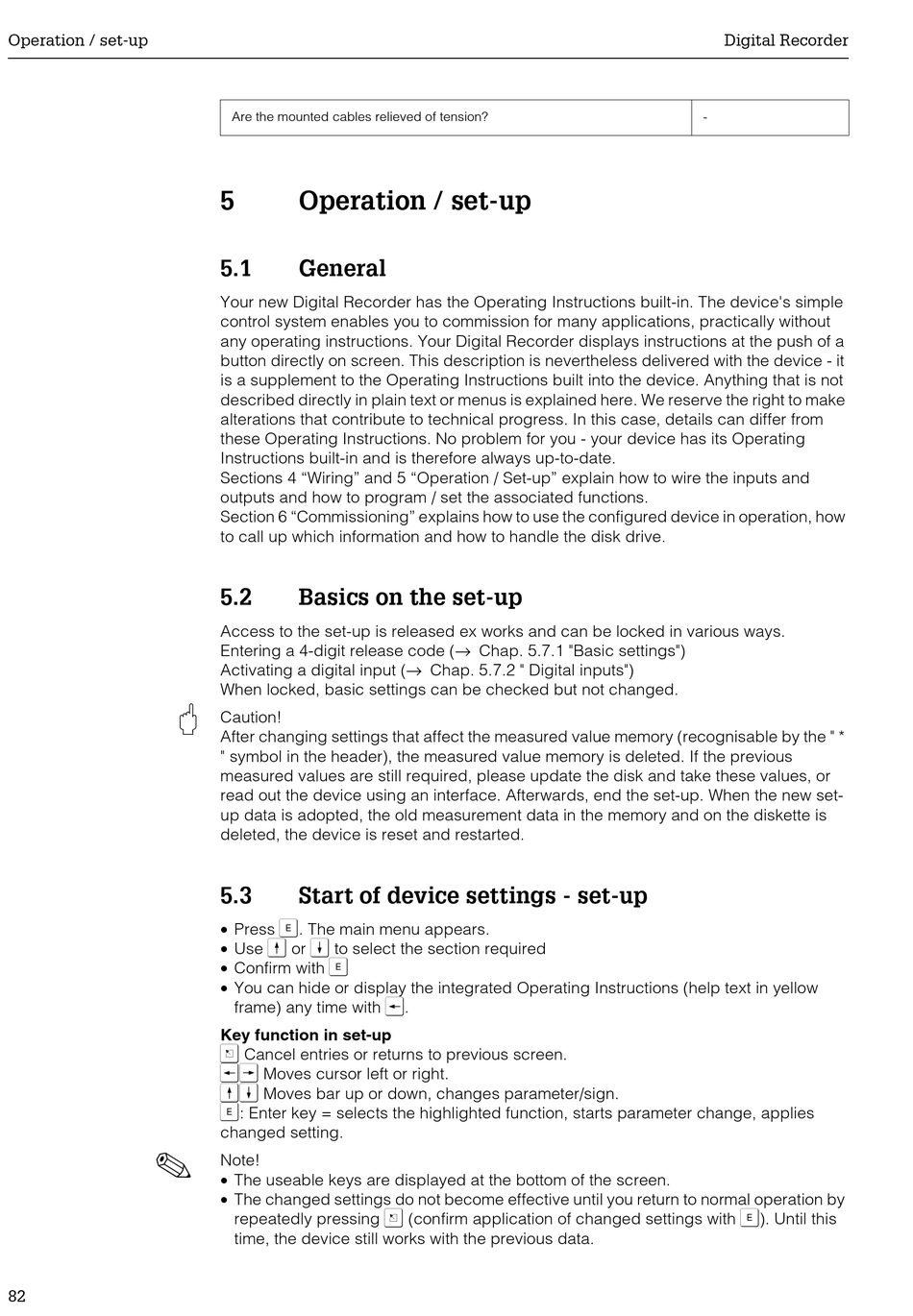

Operation / set-up

"
!
82
Are the mounted cables relieved of tension?
5 Operation / set-up
5.1

General

Your new Digital Recorder has the Operating Instructions built-in. The device's simple
control system enables you to commission for many applications, practically without
any operating instructions. Your Digital Recorder displays instructions at the push of a
button directly on screen. This description is nevertheless delivered with the device - it
is a supplement to the Operating Instructions built into the device. Anything that is not
described directly in plain text or menus is explained here. We reserve the right to make
alterations that contribute to technical progress. In this case, details can differ from
these Operating Instructions. No problem for you - your device has its Operating
Instructions built-in and is therefore always up-to-date.
Sections 4 "Wiring" and 5 "Operation / Set-up" explain how to wire the inputs and
outputs and how to program / set the associated functions.
Section 6 "Commissioning" explains how to use the configured device in operation, how
to call up which information and how to handle the disk drive.
5.2

Basics on the set-up

Access to the set-up is released ex works and can be locked in various ways.
Entering a 4-digit release code (→ Chap. 5.7.1 "Basic settings")
Activating a digital input (→ Chap. 5.7.2 " Digital inputs")
When locked, basic settings can be checked but not changed.
Caution!
After changing settings that affect the measured value memory (recognisable by the " *
" symbol in the header), the measured value memory is deleted. If the previous
measured values are still required, please update the disk and take these values, or
read out the device using an interface. Afterwards, end the set-up. When the new set-
up data is adopted, the old measurement data in the memory and on the diskette is
deleted, the device is reset and restarted.
5.3

Start of device settings - set-up

• Press F
. The main menu appears.
V W
• Use
or to select the section required
• Confirm with F
• You can hide or display the integrated Operating Instructions (help text in yellow
U
frame) any time with
Key function in set-up
Z
Cancel entries or returns to previous screen.
UT
Moves cursor left or right.
VW
Moves bar up or down, changes parameter/sign.
F
: Enter key = selects the highlighted function, starts parameter change, applies
changed setting.
Note!
• The useable keys are displayed at the bottom of the screen.
• The changed settings do not become effective until you return to normal operation by
Z
repeatedly pressing
time, the device still works with the previous data.
.
(confirm application of changed settings with
Digital Recorder
-
F
). Until this
