8.1

Vmax start through light control

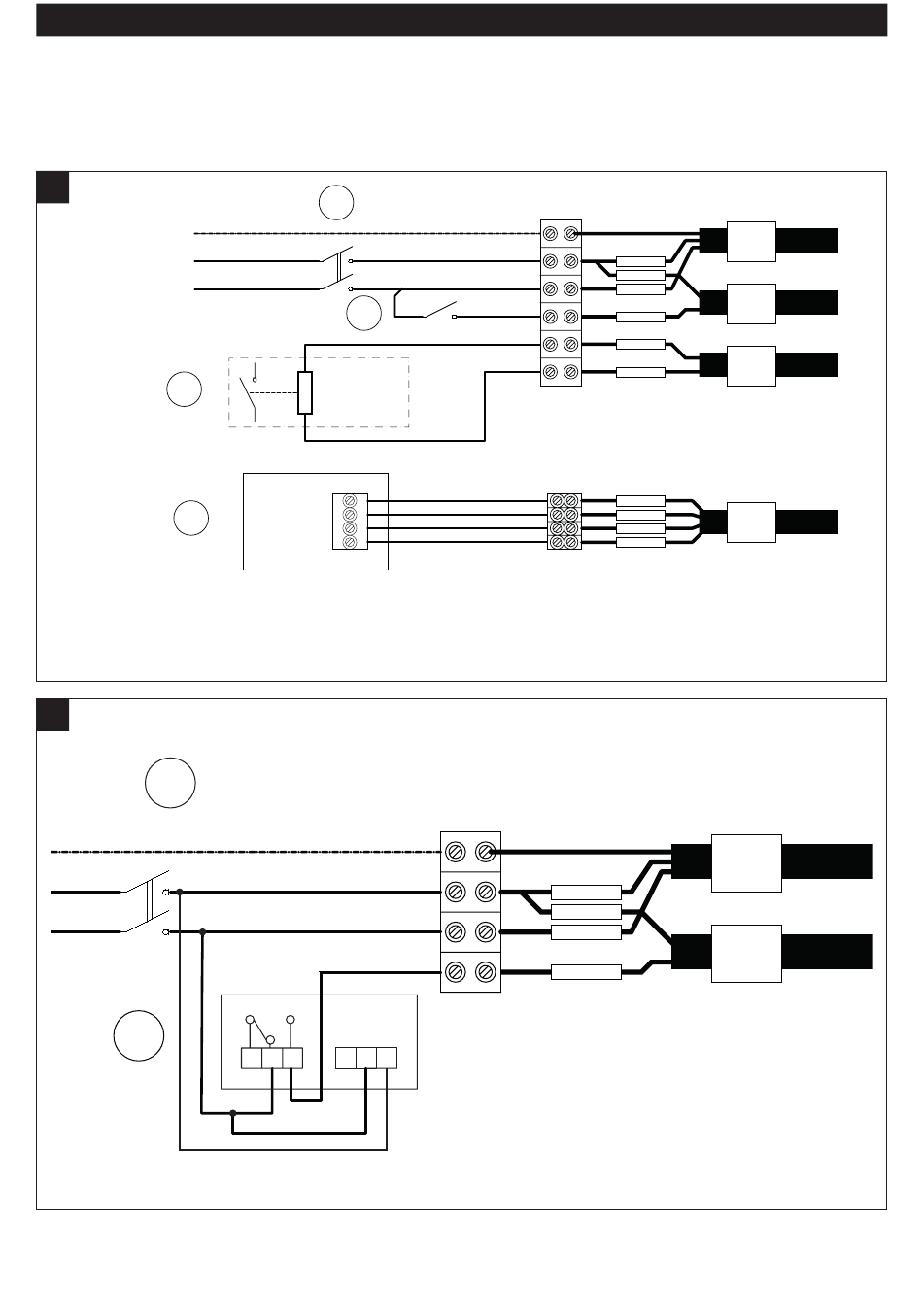

Through contact n.2 in fig. 10, the machine can be connected to the switch of a room, which coming on it starts
the machine at maximum speed. The machine start-up and shutdown delay they can be adjusted using the
appropriate "ON DELAY" and "OFF DELAY" menus as described in the section "12 Operation via remote control
panel".
10
PE
Alimentation
N
220-240V ~50Hz L
3
4
1. Mains 2 poles switch
2. Room Light Switch / Relay contact from remote sensor (C-HCS / C-SMOKE)
3.
Preheater (remote 220-240Vac relay coil)
4.
Mains 2 poles switch
11
2
PE
N
L
2
1
2
220-240V ~50Hz
VCC
A
B
GND
3 2 1 TM L N
GNYE
BU
BN
BN
BU
BN
GNYE
BU
N
N
BN
L
BN
BOOST
C HCS cod. 12.994
2. Dry contact (remote switch / relay )
ENGLISH
MAINS
N
N
L
BOOST
BOOST
N
PREH
PREH
VCC
A
HMI
B
GND
MAINS
BOOST
