12
1. Fold down cover caps (8) on both sides and lock them with key (4).
2. If available, remove cover strips (3)
Note
Do not subject protective caps which have been folded down to any
loads. This may damage the protective caps or cause them to break
off.
3. Push the attachments bracket into slot (12).
Installing the cover profile
1. Cut cover strip (3) to size according to the gaps present.
2. Place cover strip (3) on the basic carrier bar and push into
groove (12).

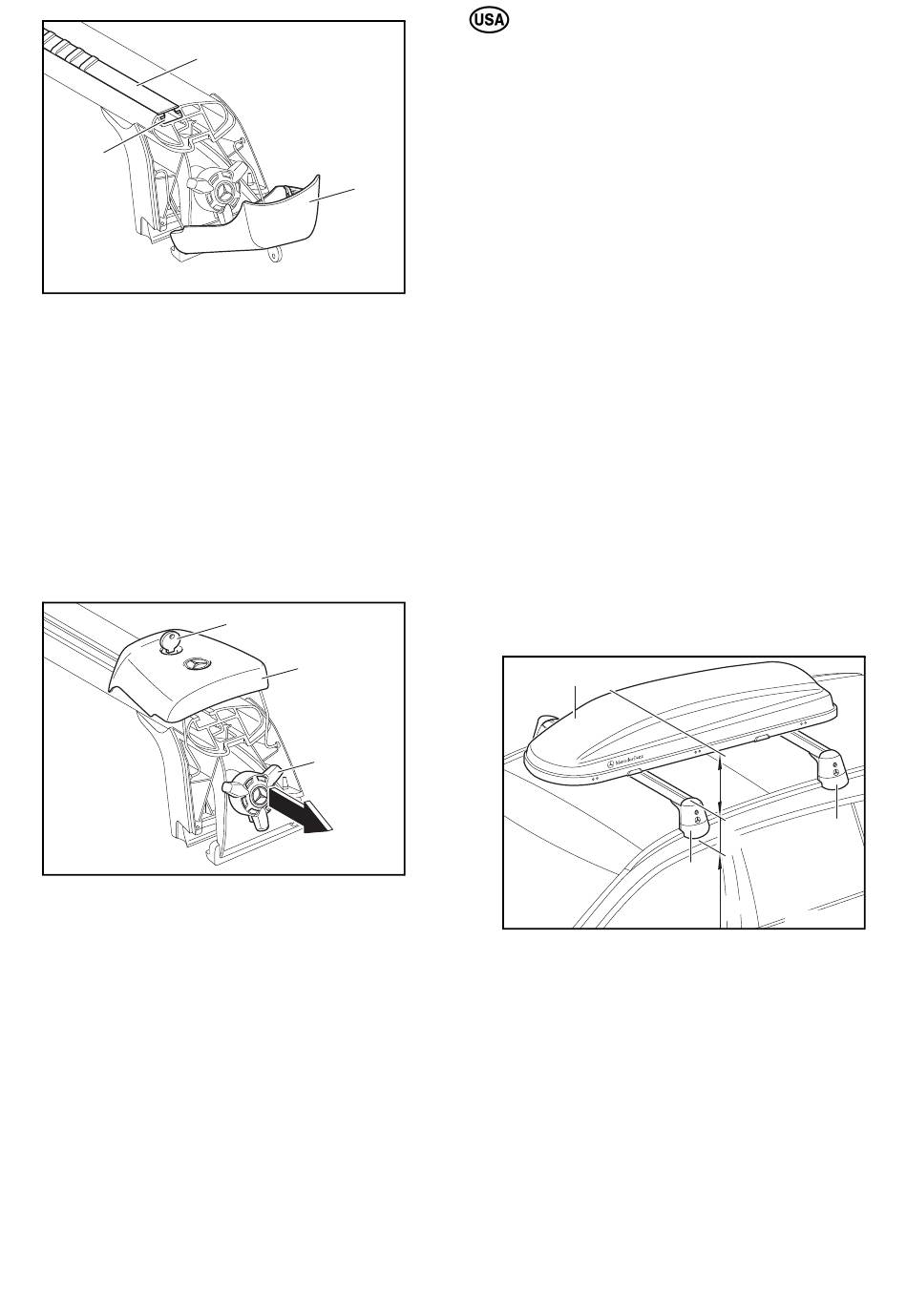

Removing the basic carrier bars
Removal should be carried out with the help of a second person in order
to avoid damaging the vehicle.
To remove the add-on carrying equipment present:
1. Unlock covers (8) with key (4) and fold them down.
2. Remove the add-on carrying equipment from the basic carrier bars
for rails.
To remove the basic carrier bars for rails:
1. Fold covers (8) up.
2. Pull quick-tightening device (9) in the direction of the arrow and turn
anti-clockwise as far as it will go.
3. Remove the basic carrier bars from the roof rails.
4. Turn quick-tightening device (9) clockwise until a resistance can be
felt.
5. Push quick-tightening device (9) in the opposite direction to the
arrow and engage it in position.
6. Fold down covers (8) on both sides and lock them with key (4). If
cover (8) cannot be closed, slightly turn quick-tightening device (9).
Note
Store the basic carrier bars for rails in a clean and safe place.
Mercedes-Benz recommends you use the transport and stowage bag for
basic carrier bars or basic carrier bars for rails.
3
8
M+P-03F-8517
4
8
9
M+P-03F-8518
Congratulations on the purchase of your new Genuine
Mercedes-Benz basic carrier bars for rails.
We hope you enjoy using your new accessory.
Validity
These installation instructions for the basic carrier bars for rails are
approved for the Mercedes-Benz GLC, X254 model series.
The basic carrier bars enable add-on carrying equipment (roof box, ski
rack, etc.) to be attached. For safety reasons, Mercedes-Benz
recommends only using accessories approved for use on Mercedes-Benz
vehicles in conjunction with these basic carrier bars for rails.
General notes
Observe the safety notes and work instructions in these Installation
Instructions in order to avoid personal injury and damage to property.
If you experience difficulties during installation, contact a qualified
specialist workshop. Mercedes-Benz recommends that you use an
authorized Mercedes-Benz Center for this purpose.
The manufacturer reserves the right to change any of the technical
details shown in the illustrations of these Installation Instructions.
Parts included
(1) Front basic carrier bar for rails
•
(2) Rear basic carrier bar for rails
•
(3) Cover profile (set of 2)
•
(4) Key (set of 4)
•
(5) Measuring tape
•
Marked positions
(6) Installation location, front left
•
(7) Installation location, rear left
•
Technical data
7
Weight of basic carrier bars for rails (1+2):
Maximum load on basic carrier bars for rails
Usable width of basic carrier bars for rails
Installation height of basic carrier bars for rails (b)
- 6 -
c
2
b
1
a
M+P-03F-9908
13,3 lbs
207,2 lbs
(94 kg)
39,4 inch
(1000 mm)
3,9 inch
(100 mm)
(6 kg)
