1. To install the flue panel brackets, draw a vertical line upwards.
2. Hold the flue panel brackets against the wall and mark the drill holes.
3. Drill the holes and insert the dowels.
4. Screw on the brackets.
5. Place the lower flue panel on the hood and snap into the bracket.

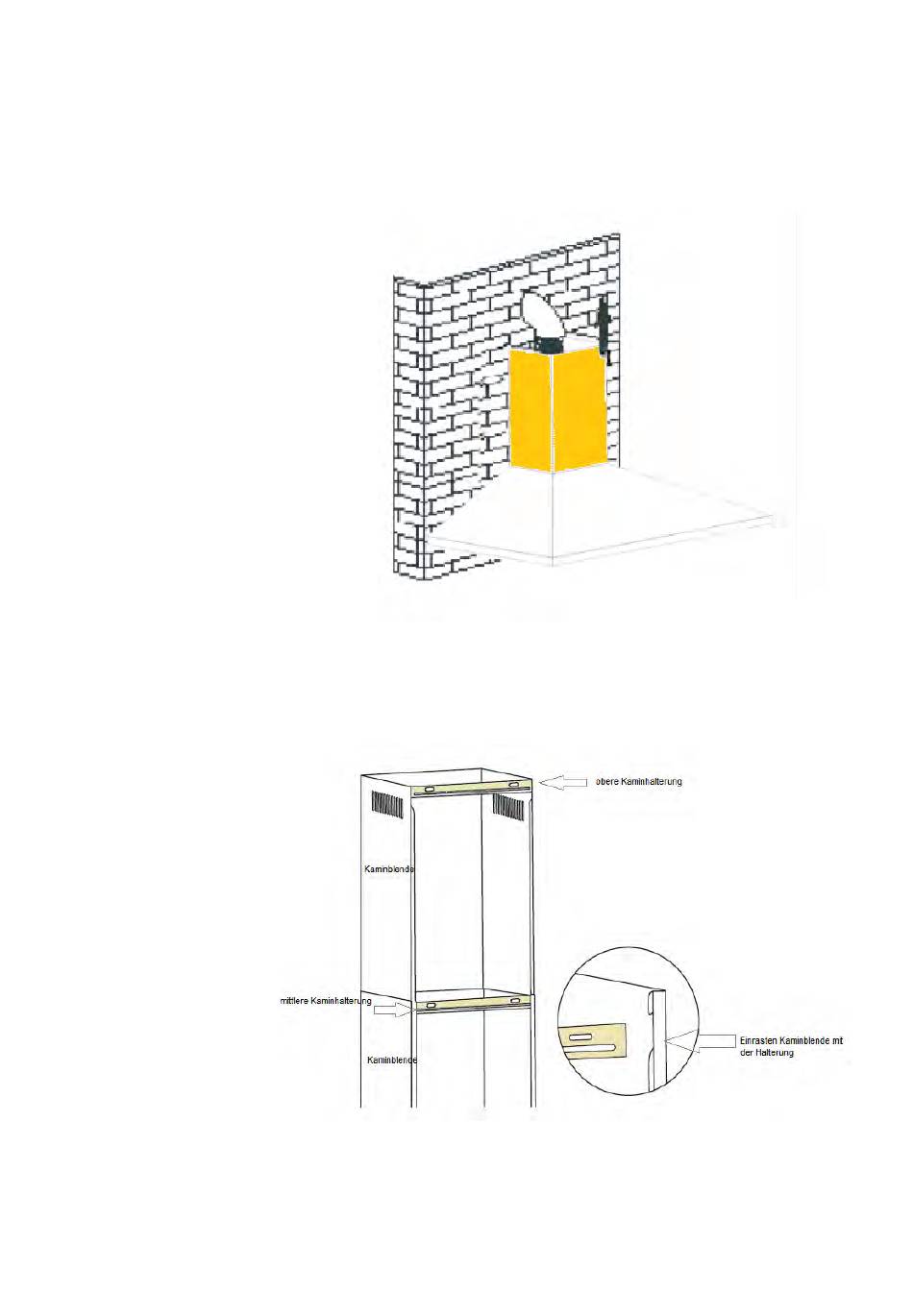

Fig..4
6. Place the upper flue
panel on the lower flue panel.
7. Slide the upper flue panel (Fig. 6) until the desired height for fixing is
reached.
Fig. 5
