A
Mounting
A lock cylinder with integrated LED can be obtained as an accessory.
C
J
Note that to attain the household insurance, the cylinder is not to protrude on
the outside to ensure that it cannot be pulled. It must either be flush in (unable
to be dismantled from outside) the door fitting or covered by a rosette.
The lock cylinder must have emergency and hazard functionality (double
cylinder). That means that it must be able to be opened with a second key from
the outside whether a key is inserted from the inside or not.
Some lock cylinders are not to be replaced by the resident. This occurs e.g. in
large apartment complexes that have special lock cylinders. In this case, your
key will not fit in the neighbours lock but the caretaker can open all doors with a
single "master key".
If in doubt, ask your landlord whether you can replace the lock cylinder or not.
5.2

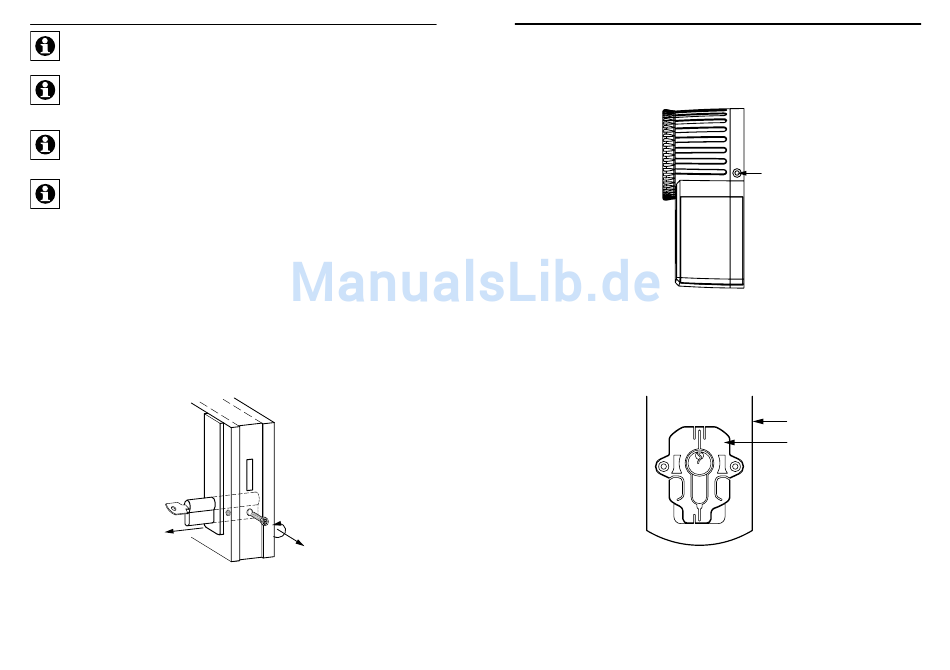

Replacing the lock cylinder
In order to replace the existing lock cylinder, proceed as follows:
•
Open the door.
•
Insert a key in the lock cylinder on the inside of the door.
Turn the fastening screw completely out (O) - (P).
•
•
Move the key slightly to the left or right (clockwise or counter-clockwise) until the lock
cylinder can be pulled out of the lock (Q).
•
Inserting the new lock cylinder is done in reverse order.
L
M
Q
Fig. 4:
Replacing the lock cylinder
Innenmaß Außenmaß
nnenmaß +
zlicher Abstand
34
A
D
E
F
B
H
G
A
A
C
D
I
E
F
J
H
G
I
J
O
P
A
5.3
Mounting the drive
To install the door lock drive, proceed as follows:
•
Loosen the screws (A) for the base fastener (S) (see fig. 6) on the left and right of
the door lock drive with the Allen key supplied.
R
S
A
Fig. 5:
Loosen the screws of the wireless door lock drive
•
Remove the base fastener (S) from the door lock drive.
•
Make sure that the nuts remain in the base fastener.
K
•
Put the base fastener on the protruding part of the lock cylinder (door leaf (R)). If
necessary, slightly loosen the two screws of the base fastener (I) (see fig. 7).
L
M
N
Fig. 6:
Base fastener with door leaf
1
2
Fasten the base fastener with the screw (I) on top and bottom on the lock cylinder. In
3
certain cases, the base fastener can also be fastened to the door with two wood-screws
(J).
A
A
R
S
R
S
K
Mounting
35
