General information about the HomeMatic system

4 General information about the HomeMatic system
This device is part of the HomeMatic home control system and works with the bidirec-
tional BidCoS wireless protocol. All devices are delivered in a standard configuration.
®
The functionality of the device can also be configured with a programming device and
software. The additional functions that can be made available in this way and the sup-
plementary functions provided by the HomeMatic system when it is combined with other
components are described in the HomeMatic WebUI Manual.
You can find the latest versions of all technical documents and the latest updates at
www.homematic.com
5

Mounting

5.1

Requirements on the door and the used lock cylinder

Read this section entirely before starting to mount the device!
Door requirements:
The door lock drive can only be used on doors with locks and bolts that move easily and
do not jam.
Please note!
Doors with locks that can only be operated by pushing, pulling, lifting, lowering
or twisting the door are not suitable for operation with the door lock drive!
• Note, especially with wooden doors, that weather can cause the door to warp,
which can in turn make the door unsuitable for locking and unlocking operation with
the door lock drive at times. The door lock drive cannot handle the forces that are
required by a warped door on the door latch.
• Make sure that the door can be locked and unlocked smoothly and easily under all
climatic conditions before implementing the drive. This can be tested by locking and
unlocking the door lock with the key and without using the door handle. Set the door
hinges and/or the striking plate in the door frame so that locking and unlocking is
smooth and easy with the key as described previously.
• In order to use the door opening function of the KeyMatic system, the door seals
must be intact and designed so that the door will open on its own after completely
unlatching the lock because of the expansion of the door seal.
Lock cylinder requirements:
The door lock drive is mounted directly on the cylinder lock (N) and moves the cylinder
with the respective key inserted. Accordingly, the cylinder lock must be dimensioned so
that it juts out on the inside of the door (K) by 8 -15 mm more than the handle fitting.
Determine the dimensions of the required lock cylinder using fig. 3. When selecting the
lock cylinder, the dimensions "inside" (inside cylinder dimension) and "outside" (outside
32
cylinder dimension) are important. In each case, measure from the fastening screw of
the cylinder in the lock fitting (including the door fittings (M)) and add 8 - 15 mm (ideally
10 mm) to the inside dimension to calculate the suitable standard dimensions.
Example: You measure an outside dimension (2) of 40 mm and an inside dimension
(1) of 40 mm as well. Therefore, the cylinder is a 40/40 cylinder. In order to use the
KeyMatic drive, you therefore need the next standard size, a 40/50 cylinder. The cylin-
der will then protrude inside by 10 mm (3).
K
N
dimension
inside dimension
additional distance

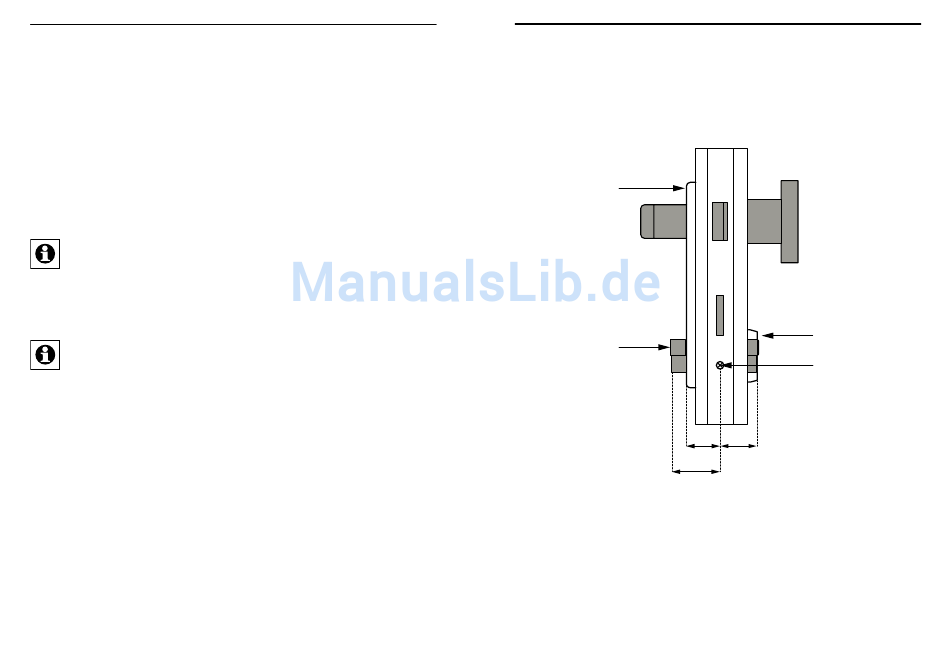

Fig. 3: Lock cylinder
K – Inside door fitting
L – Rosette
M – Screw for fastening the lock cylinder in the mortise lock
N – Lock cylinder
L
M
inside outside
dimension
+
