Wiring Harness and Cab Control
Installation
REMEMBER
After the Spreader is installed on the
vehicle, the Pre-Delivery Check List and Delivery
Check List must be completed.

Tool List

Safety Goggles
Wire Crimp Tool
Utility Knife

Cab Control (Gas Spreader)

1. Attach the Spreader Harness to the side of the
spreader using pre-drilled holes and number six clamp
loops.
2. Plug the Vehicle Harness into the Spreader Harness.
NOTE: Use Quaker State NYK-77 dielectric grease or
equivalent on all electrical connections.
3. Layout the path for vehicle harness through the rear
window of vehicle. Unplug harness when not in use and
keep in cab until needed.
IGNITION SWITCH
ON/OFF/START
LIGHTER HARNESS
MAIN HARNESS
ELECTRIC
THROTTLE SWITCH

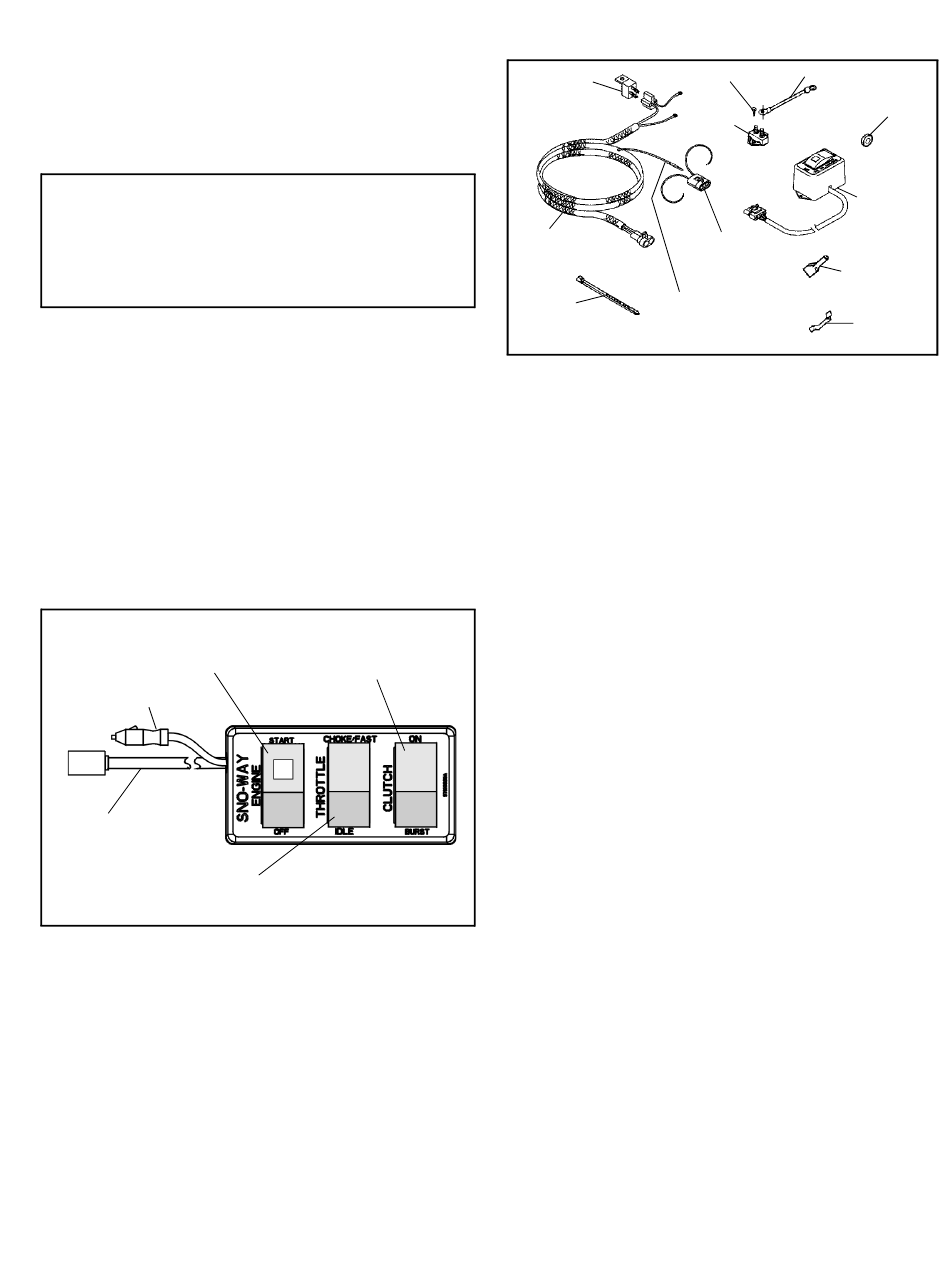

Figure 1-2
4. Mount the Cab Control (See Figure 1-2) in a
convenient location. Due to the variety of possible in-cab
locations, Velcro® is provided. A suitable bracket should
be made and fastened to the cab.
5. Plug cigarette lighter power lead into power outlet in
vehicle.
12 Volt Test Light
Drill
Drill Bit, 3/8"
ELECTRIC
CLUTCH SWITCH

On/Off Control (Electric Spreader)

Relay
Main Wire
Harness
Yellow Wire
Cable
(terminal attached)
Tie
Figure 1-3
1. Locate the following parts:
• Controller
• Wire Harness, Main
• Circuit Breaker.
• Fuse Tap
• Terminal, Female
• Grommet
• Neoprene Seal
• Red Wire, Short
• Cable Tie, Plastic
• Self Tapping Screw
• Relay, 70A
• Metri-Pack Connector
(For reference to part numbers, see service parts listing
page 32).
NOTE: Take the extra time needed to plan the routing of
the wiring harness before drilling any holes or fastening
the harness or control box in place. Read all the
instructions carefully to ensure all the required conditions
are met for a safe and professional installation.
Red Wire
Screw
Circuit
Grommet
Breaker
Controller
Metri-Pack
Connector
Terminal
Fuse
Tap
6
