EX-6124-2
3. Layout, Connections & LED's

3.2 Connections

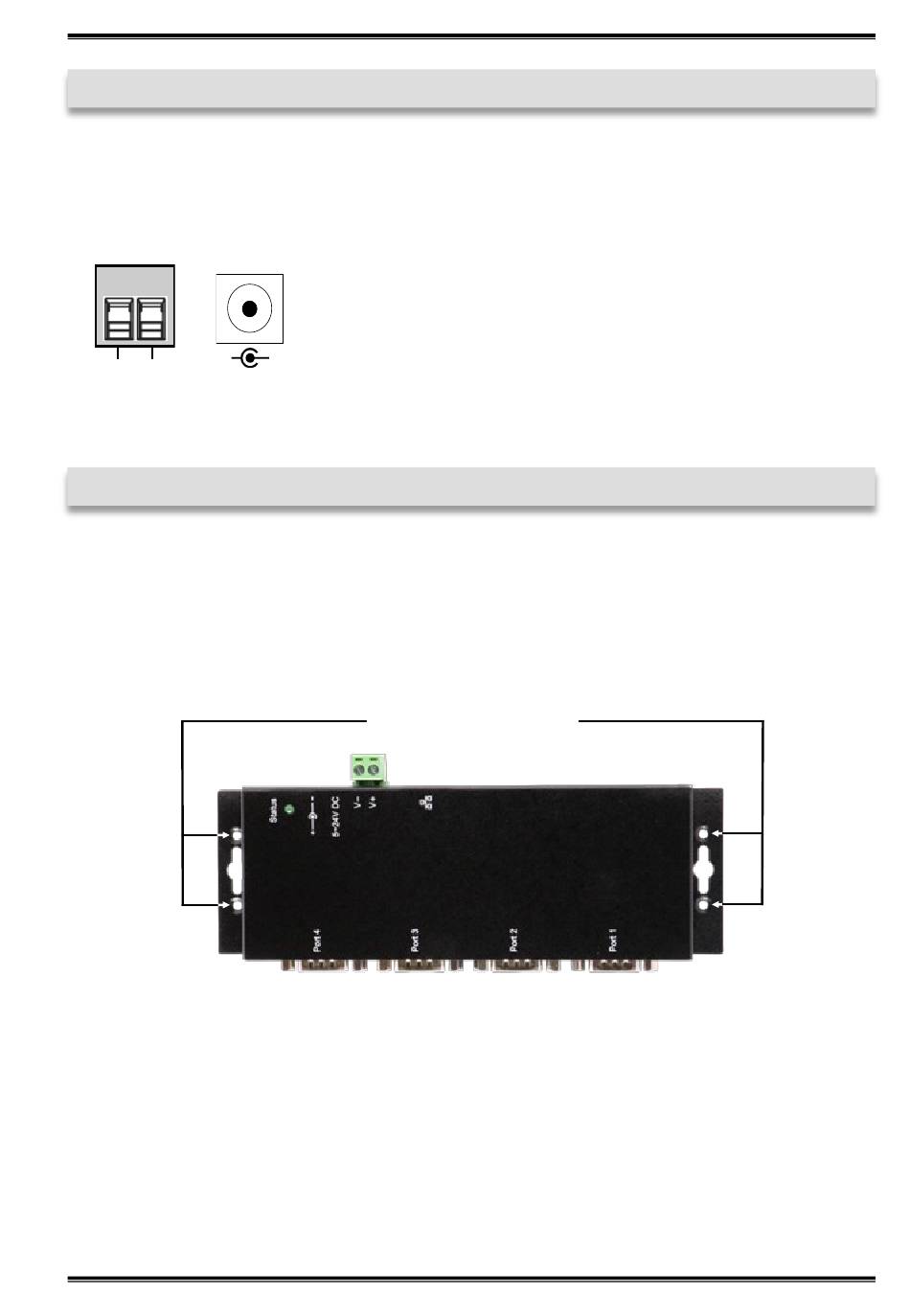

+5V to +24V DC-Jack / T-Block:
-
+V -V

4. Hardware Installation

Please follow the installation instructions below. As there are major differences between PCs, we
can only give you general instructions on how to connect the EX-6124-2. If anything is unclear,
please refer to your computer system's user manual.
1. Install the EX-6124-2 on the wall or on a 35mm DIN-Rail using the optional DIN-Rail kit.
2. Connect the EX-6124-2 to your network using an RJ45 Ethernet CAT.5/6 patch cable.
3. Connect your serial end devices to the 9-pin D-SUB connectors of the EX-6124-2.
4. Connect the supplied 12V power supply to the power socket on the EX-6124-2. Alternatively,
the EX-6124-2 Device Server can also be connected to an existing DIN-Rail power supply
(+5V to 24 VDC) via the terminal block.
5. The LED display shows the status of the Device Server (see page 17).
© Copyright 2023 by EXSYS Vertriebs GmbH. All rights reserved
Attention!
Only for use with the power supply unit supplied or another
compliant power supply unit!
+
Pay attention to the correct polarity, an incorrectly connected
power supply unit can destroy your hardware!
Holes for wall installation
