MCS 20 – MCS 263 System Unit
ON
1* Microphone unit is counted to
the limit
2* Microphone unit is counted to
the limit in the "VOICE"
operation
3* Limit refers to microphone unit
4* "VOICE" operation allowed
5* Microphone unit cannot be
cleared; can be turned on in all
operating modes - observe
switch 3
6 without functionClear button
activated, only when used as
sub-chairman
7 Prior button activated, only when
used as sub-chairman
8 Microphone button enabled in
"VOICE" operation
*When this switch is set to "OFF", the maximum number of simultaneously open delegate microphone units is more
than 8. This results is an increased power consumption.

3.4.3 Installation

The MCS 263 system unit provides removable mounting clips for installations under the table or in armrests.
OFF
Microphone unit is not counted
to the limit
Microphone unit is not counted
to the limit in the "VOICE"
operation
Limit does not refer to
microphone unit
"VOICE" operation not allowed
Microphone unit can be cleared
Clear button not activated
Prior button not activated
Microphone button disabled in
"VOICE" operation

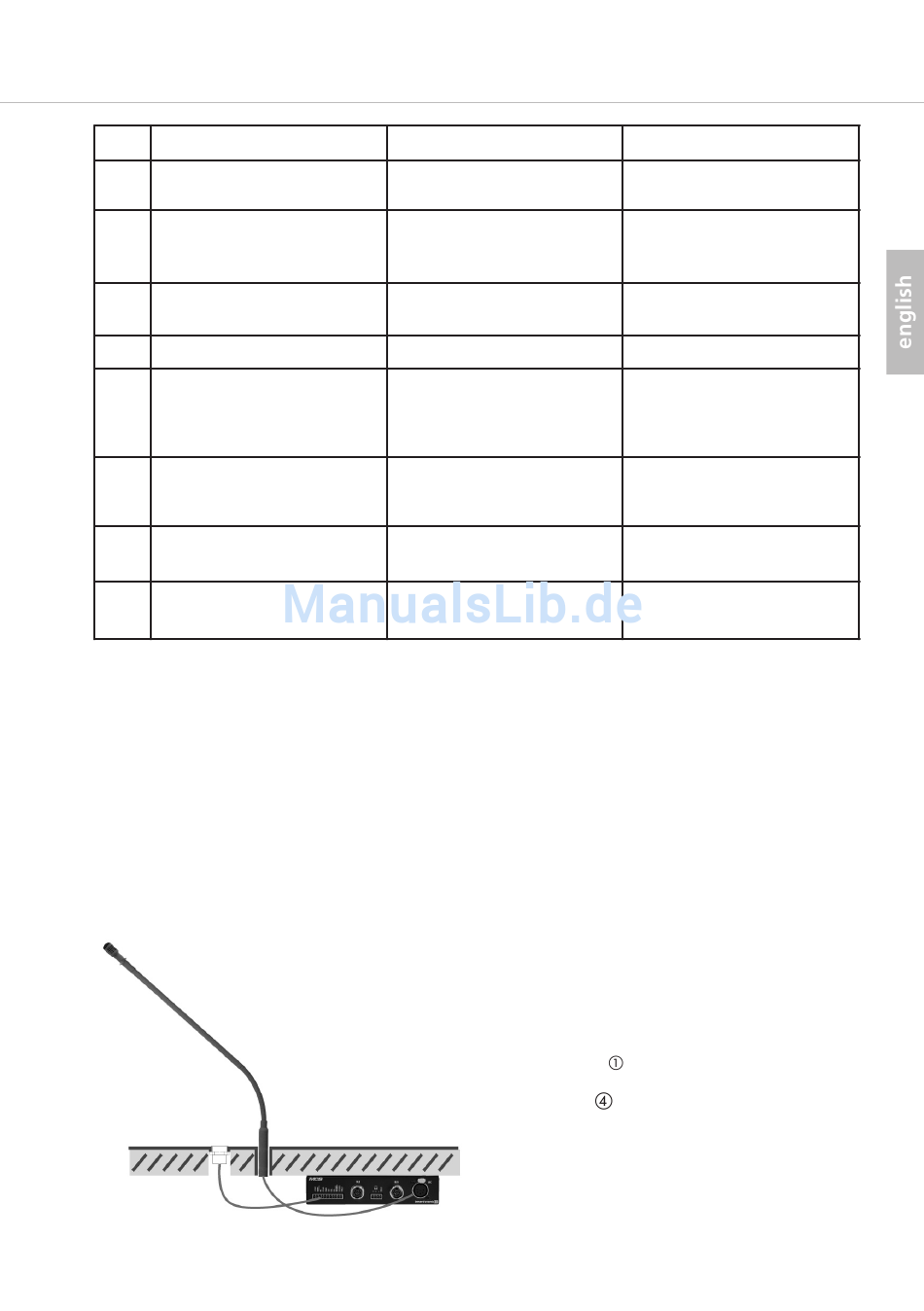

Installation under the table
• Provide appropriate holes for the button, microphone
and loudspeaker in the tabletop.
• Mount the system unit with the mounting clips and
appropriate (or supplied) screws to the tabletop.
• Connect the button to the "Mic" connection of the
terminal strip
• Connect the gooseneck microphone to the 5-pin XLR
connection
Default Settings
ON
ON
ON
ON
OFF
OFF
OFF
ON
.
.
55
