Amendment DSX TWIN MA
Group setting
2
1
+
Press
≥ 3 sec
4 3
5 6
Display flashes
9 8 7
10

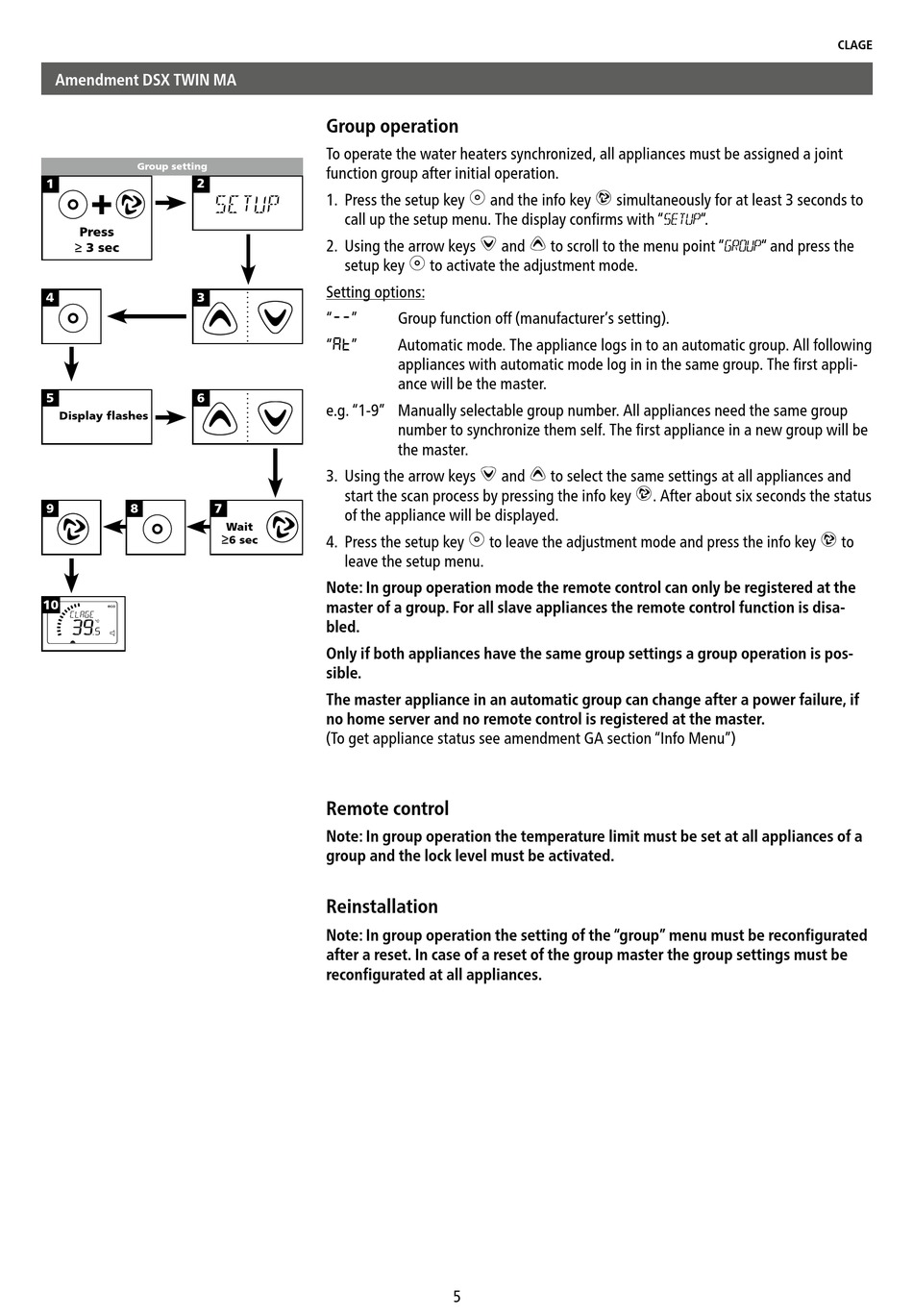

Group operation
To operate the water heaters synchronized, all appliances must be assigned a joint
function group after initial operation.
1. Press the setup key
call up the setup menu. The display confirms with " Setup ".
2. Using the arrow keys
setup key
Setting options:
"--"
"At"
e.g. "1-9" Manually selectable group number. All appliances need the same group
3. Using the arrow keys
start the scan process by pressing the info key
of the appliance will be displayed.
Wait
≥
4. Press the setup key
6 sec
leave the setup menu.
Note: In group operation mode the remote control can only be registered at the
master of a group. For all slave appliances the remote control function is disa-
bled.
Only if both appliances have the same group settings a group operation is pos-
sible.
The master appliance in an automatic group can change after a power failure, if
no home server and no remote control is registered at the master.
(To get appliance status see amendment GA section "Info Menu")
Remote control
Note: In group operation the temperature limit must be set at all appliances of a
group and the lock level must be activated.
Reinstallation
Note: In group operation the setting of the "group" menu must be reconfigurated
after a reset. In case of a reset of the group master the group settings must be
reconfigurated at all appliances.
and the info key
and to scroll to the menu point " Group " and press the
to activate the adjustment mode.
Group function off (manufacturer's setting).
Automatic mode. The appliance logs in to an automatic group. All following
appliances with automatic mode log in in the same group. The first appli-
ance will be the master.
number to synchronize them self. The first appliance in a new group will be
the master.
and to select the same settings at all appliances and
to leave the adjustment mode and press the info key
5
simultaneously for at least 3 seconds to
. After about six seconds the status
