• h e tube used for the air feed port should have an outer diameter of φ4 mm. (See Fig.
2.)
• Injection of air causes the spindle to perform the ejection operation.
• Use dry air for air injection.
• Calibration is recommended every year.
• h is unit is equipped with an anti-dust bellows on the spindle. Organic solvents,
ozone, ultraviolet rays, and other adverse conditions in the ambient atmosphere can
cause rapid deterioration of the anti-dust bellows. When using in these environments,
replace anti-dust bellows periodically (every six months to one year).
2
(E)
Fixing ring

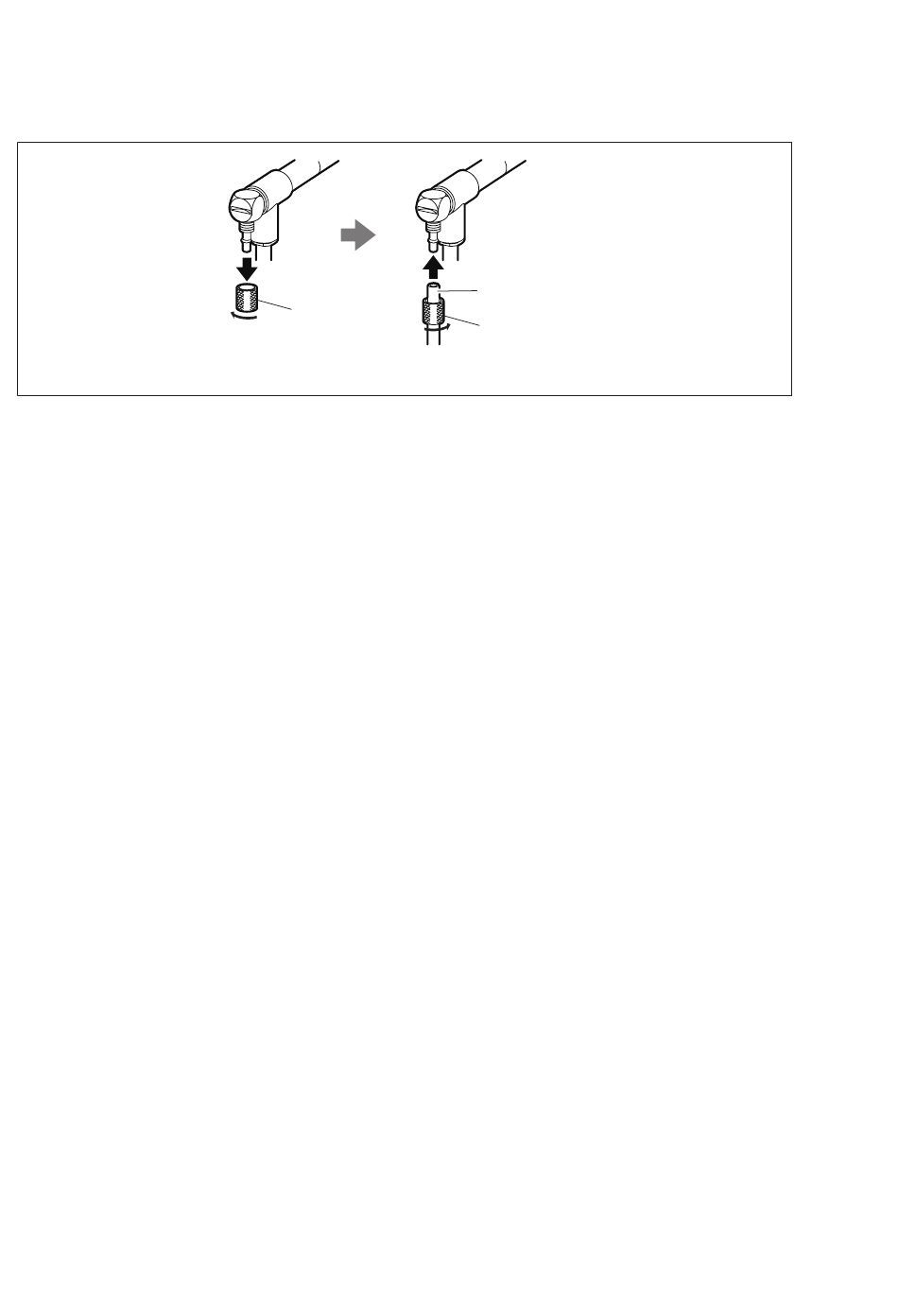

Fig. 2 Attaching the φ4 mm tube
φ4 mm tube
Fixing ring
