1. Operating Cautions

• Do not use the unit in places where it may receive excessive shocks. Otherwise the
inside of the unit may be damaged or the unit may become unable to produce normal
output signals.
• Be sure to turn of the power before connecting or disconnecting connectors in order
to prevent damage or misoperation.
• Insert the connector into the counter unit until it locks. Be sure to turn of the power
switch before connecting or disconnecting the connector.
• Locate the measuring unit at least 10 cm away from a strong magnetic source. (h e
measuring unit must not be used in magnetic i elds exceeding 5 mT.)
• Do not forcibly pull the cable for connecting or disconnecting, or it may cause breakage.
• h e measuring unit is short circuited to the frame GND (ground terminal) of the
counter unit by shield wire of the cable. When the measuring unit is used with an other
signal processing device on a machine tool, etc., be aware of the ground level.
• Do not place the measuring unit where it is exposed to splash of water or oil.
• When operating the feeler through the air feed port, use an air-pass system such as
shown in Fig. 1 to enable air driving. h e optimum air pressure is 0.055 ±0.01 MPa,
but pressure control adjustment is necessary depending on the hardness of the
measured object, the range within the measuring unit stroke where measurement is to
be performed, and other factors. Use a precision regulator (example: SMC IR2000 or
equivalent) for pressure control.
• If the spindle ejection speed is too fast, an error may appear on the display the moment
that the workpiece is touched. Excessive impact may dislodge the retainer inside the
bearing, causing the measuring range to be reduced. In this case, use a speed controller
as shown in Fig. 1 to adjust the spindle speed.
AIR
Pressure
source
Air i lter
Mist separator
P
R
Regulator Solenoid valve

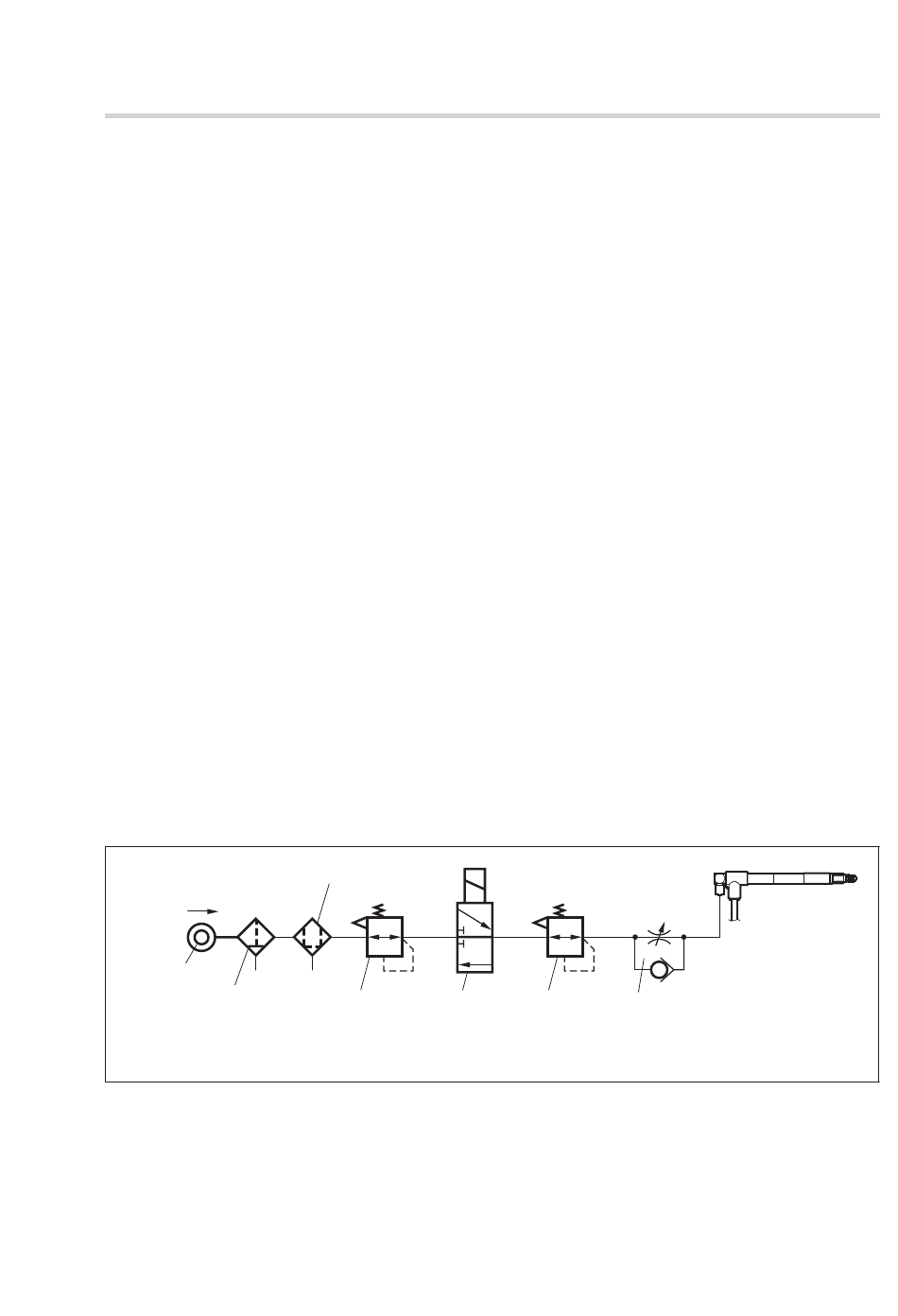

Fig. 1 Air-pass system
A
Precision Speed controller
regulator
1
(E)
