5.5 Wiring

Input
Global Standby
Heating/Cooling
External
Antenna

5.6 Power Supply

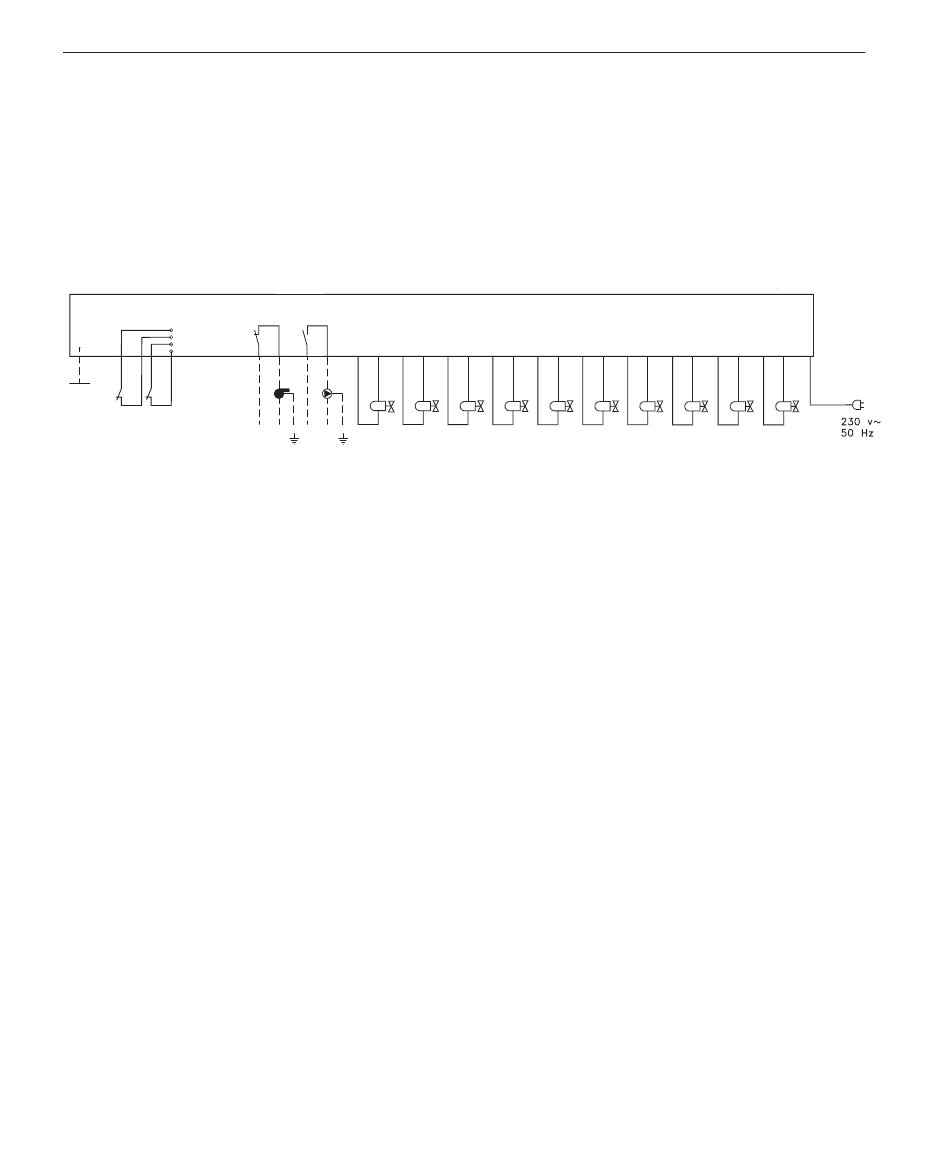

• When all actuators, pump and boiler controls and other inputs are
installed, connect the Master Controller's power supply plug to a 0V
power supply. (fig. 18)
Note: If the power supply plug is removed from the power supply cable
during installation make sure that the connection is made according to
existing law/legislation.
VI.UH.K1.52
Relays
1 2
L N L N
Produced by Danfoss Floor Heating Hydronics 08.005
Actuator outputs
3 4 5 6 7 8 9 10
11
