Preface and general information

0Fig. 0Tab. 0

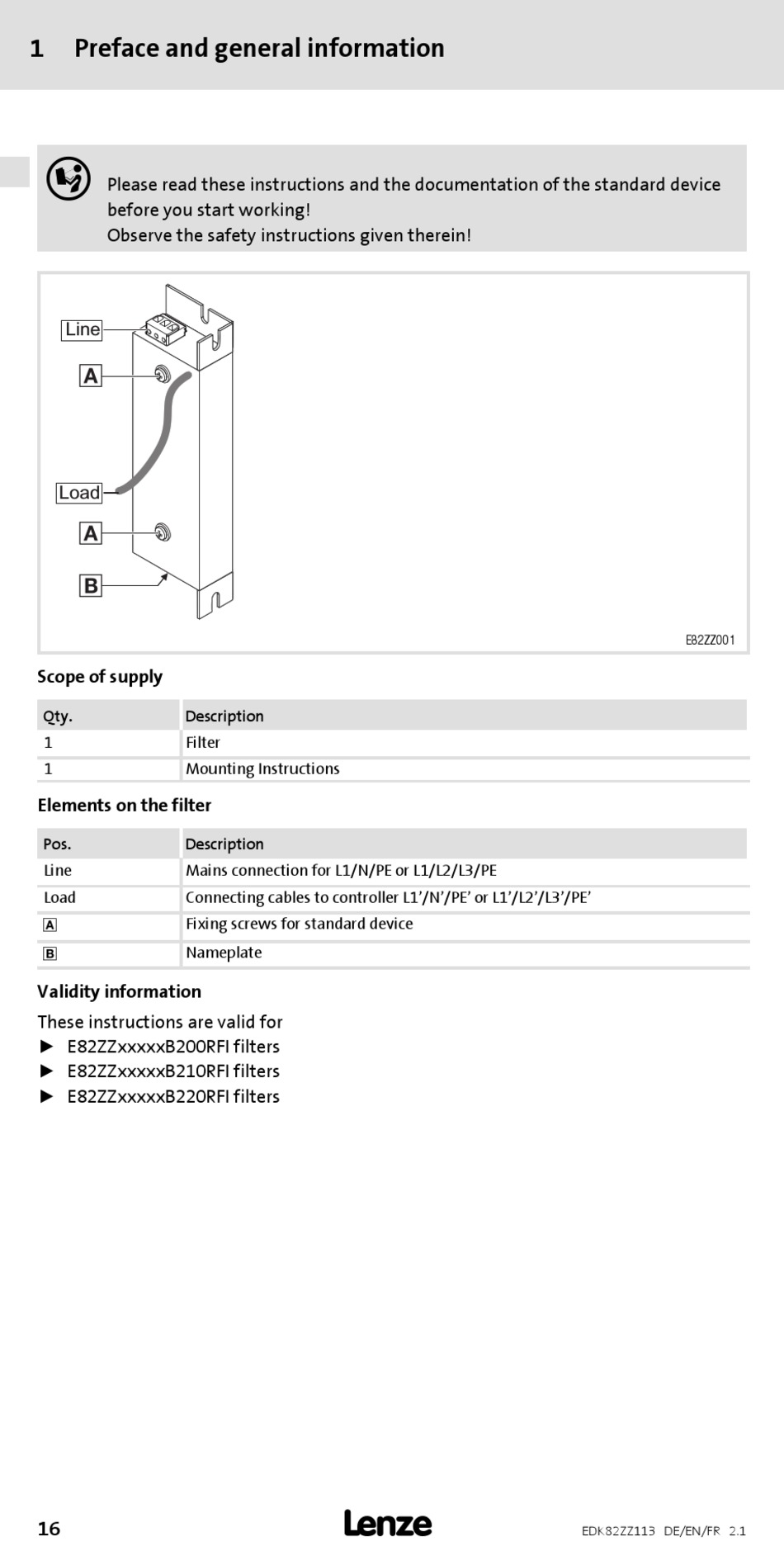

1 Preface and general information

Please read these instructions and the documentation of the standard device
before you start working!
Observe the safety instructions given therein!
Line
0
Load
0
1
Scope of supply
Qty.
1
1
Elements on the filter
Pos.
Line
Load



Validity information

These instructions are valid for
ƒ E82ZZxxxxxB200RFI filters
ƒ E82ZZxxxxxB210RFI filters
ƒ E82ZZxxxxxB220RFI filters
16
Description
Filter
Mounting Instructions
Description
Mains connection for L1/N/PE or L1/L2/L3/PE
Connecting cables to controller L1'/N'/PE' or L1'/L2'/L3'/PE'
Fixing screws for standard device
Nameplate

E82ZZ001
EDK82ZZ113 DE/EN/FR 2.1
