1.3 Wall-mounted installation

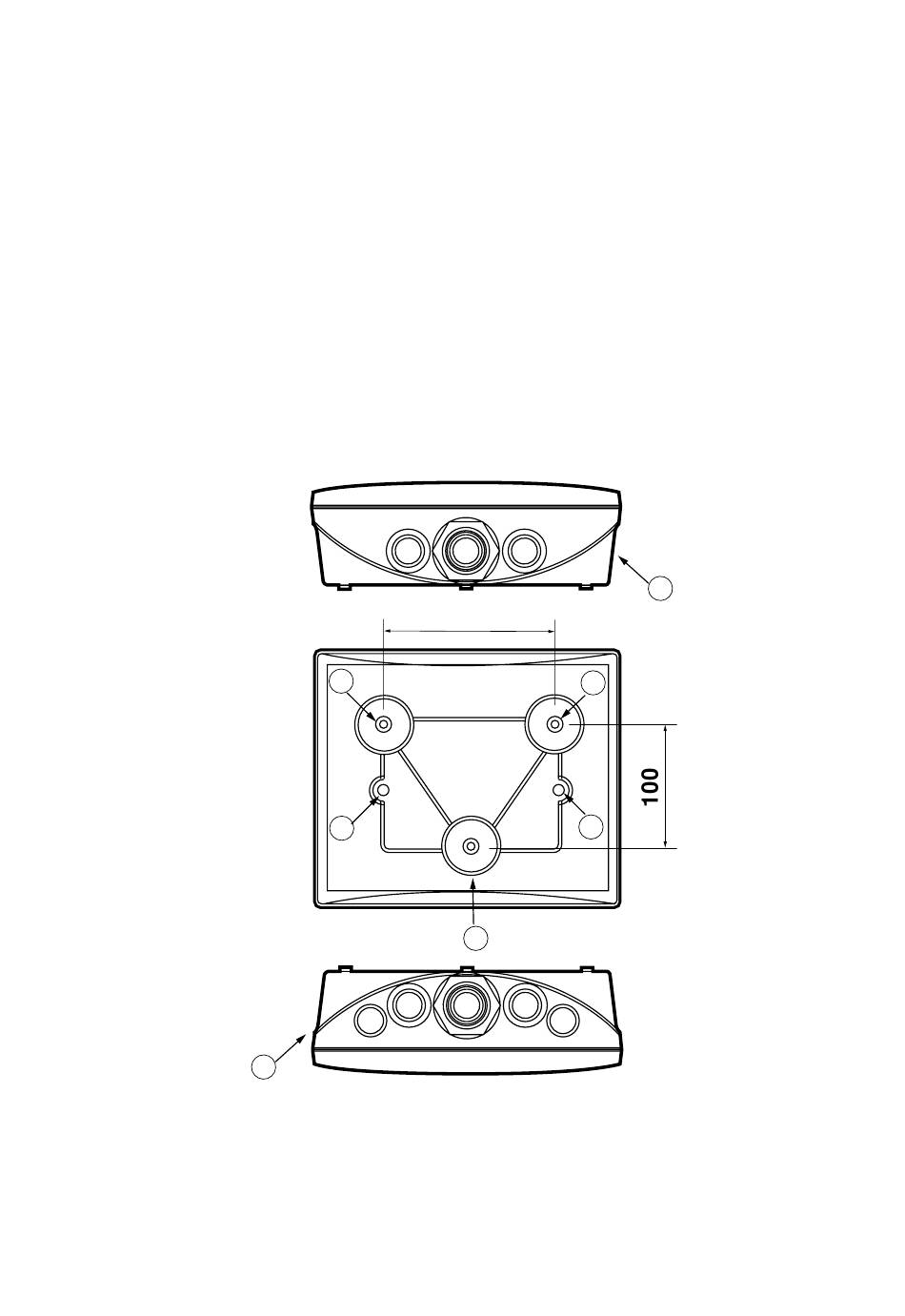

With reference to Fig. 1.3.1:
1. Unscrew the two frontal screws (Fig. 1.1.1, parts a, b) and remove the central door (part c).
2. Unscrew the two screws (parts d, e) that keep the lower and frontal cover of the MasterCella connected
and separate the two parts.
3. Once having decided where to pass the cable duct or the cables (from above or from below) and having
made the proper holes (in the part drilled in advance - parts i, l) for cablepresses and pipepresses, make
three holes (parts m, n, o) both in the MasterCella and in the wall itself.
4. Insert the wall-nugs, contained in the kit, into the holes made in the wall and then fix the back part of the
MasterCella with the three screws (parts m, n, o) and the relevant O-Rings to the wall itself.
5. Fix the cablepresses or pipepresses before mounting the frontal part of the datalogger.
6. Mount the frontal part, being careful with the positioning of the upper teeth (part h) and the proper fixing
of the two screws (parts d, e) (do not press excessively in order to avoid plastic deformation).
7. After connecting the cables to the terminal block, shut the door (part c).
m
parte
posteriore
back
side
f
i
parte superiore
upper part
120
g
o
parte inferiore
lower part
25
l
n
Fig. 1.3.1
