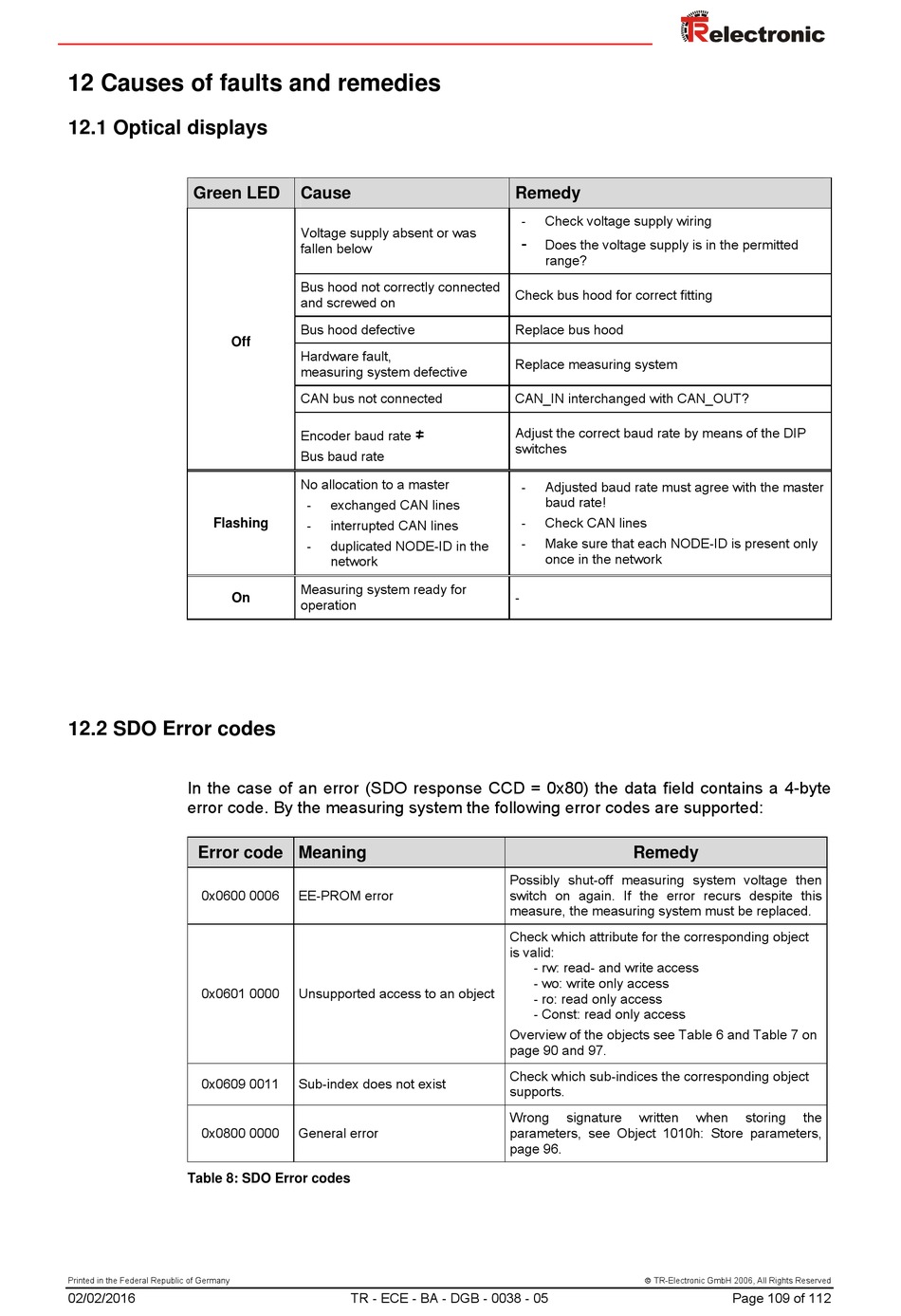

12 Causes of faults and remedies

12.1 Optical displays

Green LED
Off
Flashing
On

12.2 SDO Error codes

In the case of an error (SDO response CCD = 0x80) the data field contains a 4-byte
error code. By the measuring system the following error codes are supported:
Error code Meaning
0x0600 0006
0x0601 0000
0x0609 0011
0x0800 0000
Table 8: SDO Error codes
Printed in the Federal Republic of Germany
02/02/2016
Cause
Voltage supply absent or was
fallen below
Bus hood not correctly connected
and screwed on
Bus hood defective
Hardware fault,
measuring system defective
CAN bus not connected
≠
Encoder baud rate
Bus baud rate
No allocation to a master
- exchanged CAN lines
- interrupted CAN lines
- duplicated NODE-ID in the
network
Measuring system ready for
operation
EE-PROM error
Unsupported access to an object
Sub-index does not exist
General error
TR - ECE - BA - DGB - 0038 - 05
Remedy
- Check voltage supply wiring
-
Does the voltage supply is in the permitted
range?
Check bus hood for correct fitting
Replace bus hood
Replace measuring system
CAN_IN interchanged with CAN_OUT?
Adjust the correct baud rate by means of the DIP
switches
- Adjusted baud rate must agree with the master
baud rate!
- Check CAN lines
- Make sure that each NODE-ID is present only
once in the network
-
Remedy
Possibly shut-off measuring system voltage then
switch on again. If the error recurs despite this
measure, the measuring system must be replaced.
Check which attribute for the corresponding object
is valid:
- rw: read- and write access
- wo: write only access
- ro: read only access
- Const: read only access
Overview of the objects see Table 6 and Table 7 on
page 90 and 97.
Check which sub-indices the corresponding object
supports.
Wrong signature written
parameters, see Object 1010h: Store parameters,
page 96.
 TR-Electronic GmbH 2006, All Rights Reserved
when storing the
Page 109 of 112
