SYSTEM ASSEMBLY

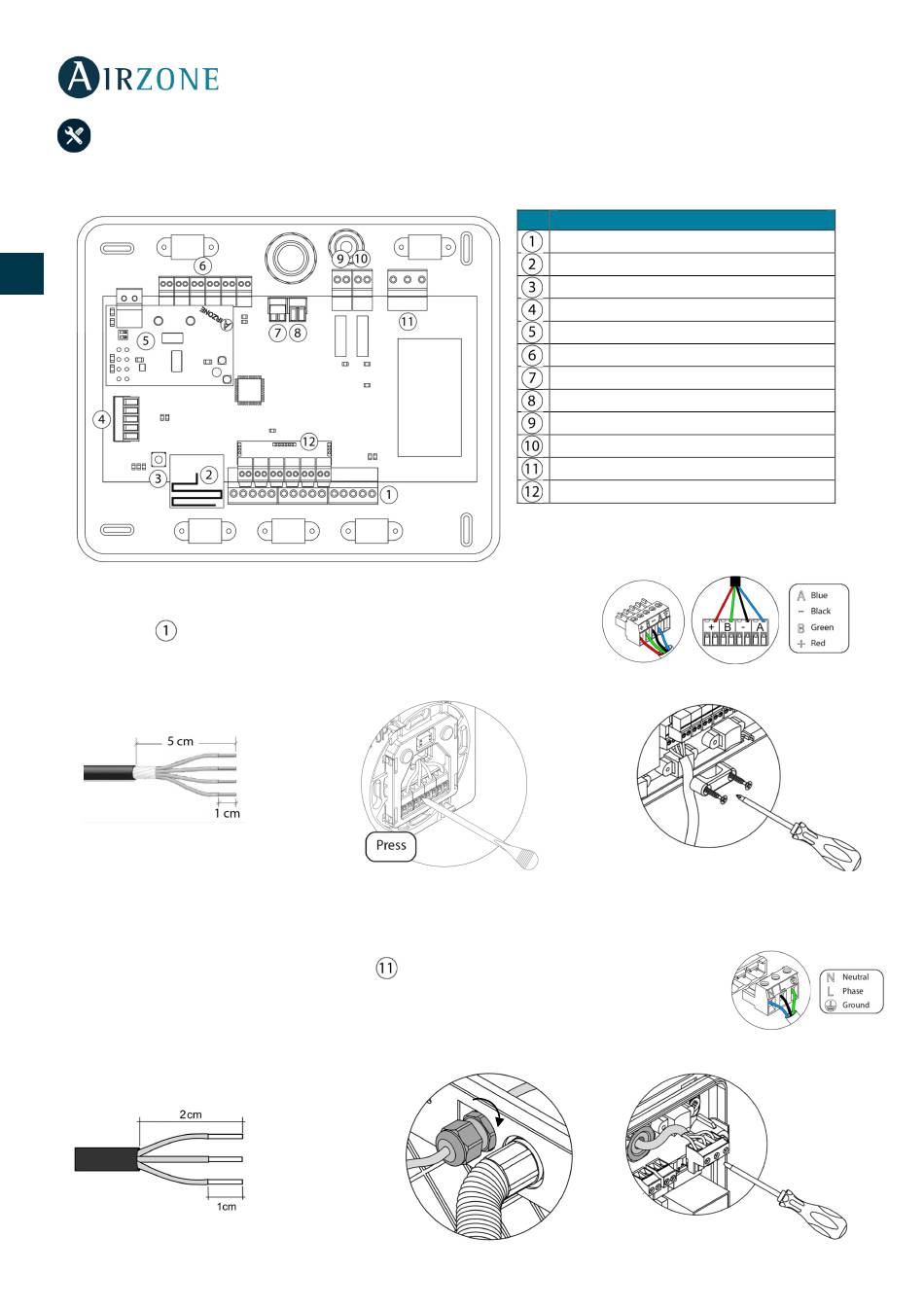

INNOBUS PRO6 MAIN CONTROL BOARD (AZCE6IBPRO6)

ES
EN
FR
IT
PT
DE
1.- Airzone thermostats
Connect the control elements of the system in any of the 3 Airzone connection
bus terminals . The connection can be both a Bus connection or a star
connection. Follow the color code. For added security, secure the wires using the
turrets.
In case of wireless element, check it has the battery on.
2.- Powering the system
Use the power input to power at 110 / 230 Vac
elements that require it. Use the appropriate cable (3x1.5 mm²). To power supply the Main Board of
the system, loosen the cable gland if necessary and insert the cable through the hole (Ø: 5-10 mm),
attach the cables with the terminal following the indicated polarity. Connect the terminal to the power
supply input and tighten the cable gland to attach the power supply cable.
36
No.
Airzone connection bus
Wireless module
SW1
Domotic bus
Daikin gateway
Actuator outputs
Alarm input (normally closed)
Temperature probe
CMV/Boiler
AC Start-stop relay
Power supply
On/off module
Important: Use a shielded twisted cable to control the
inputs of the on/off module.
the main control board and any others control
Description
