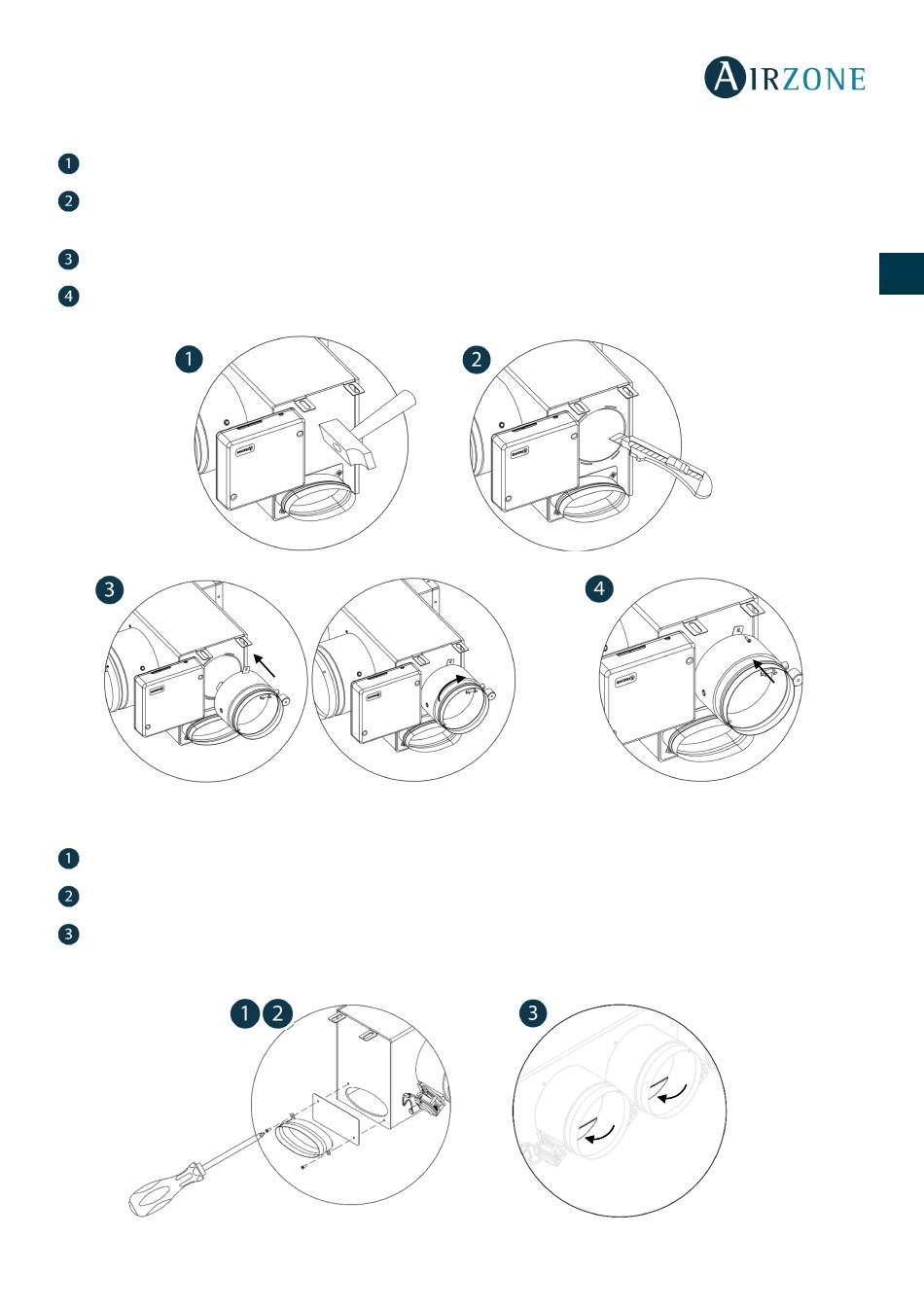

BYPASS DAMPER ASSEMBLY

Sharply hit it to take away the pre-cut area of the sides corresponding to the bypass.
Use a sharp blade to remove the insulation that covers the area of the bypass and uncover the mounting slots on the
bypass.
Fit the bypass damper in the slots and rotate it clockwise until the stop.
Attach the bypass damper to the plenum using a sheet metal screw (Ø: 3.9 mm).

VENTILATION AIR INLET ASSEMBLY

Remove the elliptical neck that is secured by screws.
Remove the protection plate that covers the external air intake and reattach the elliptical neck.
Double or cut the lid at the bottom of the pressure dampers to allow the air to pass.
