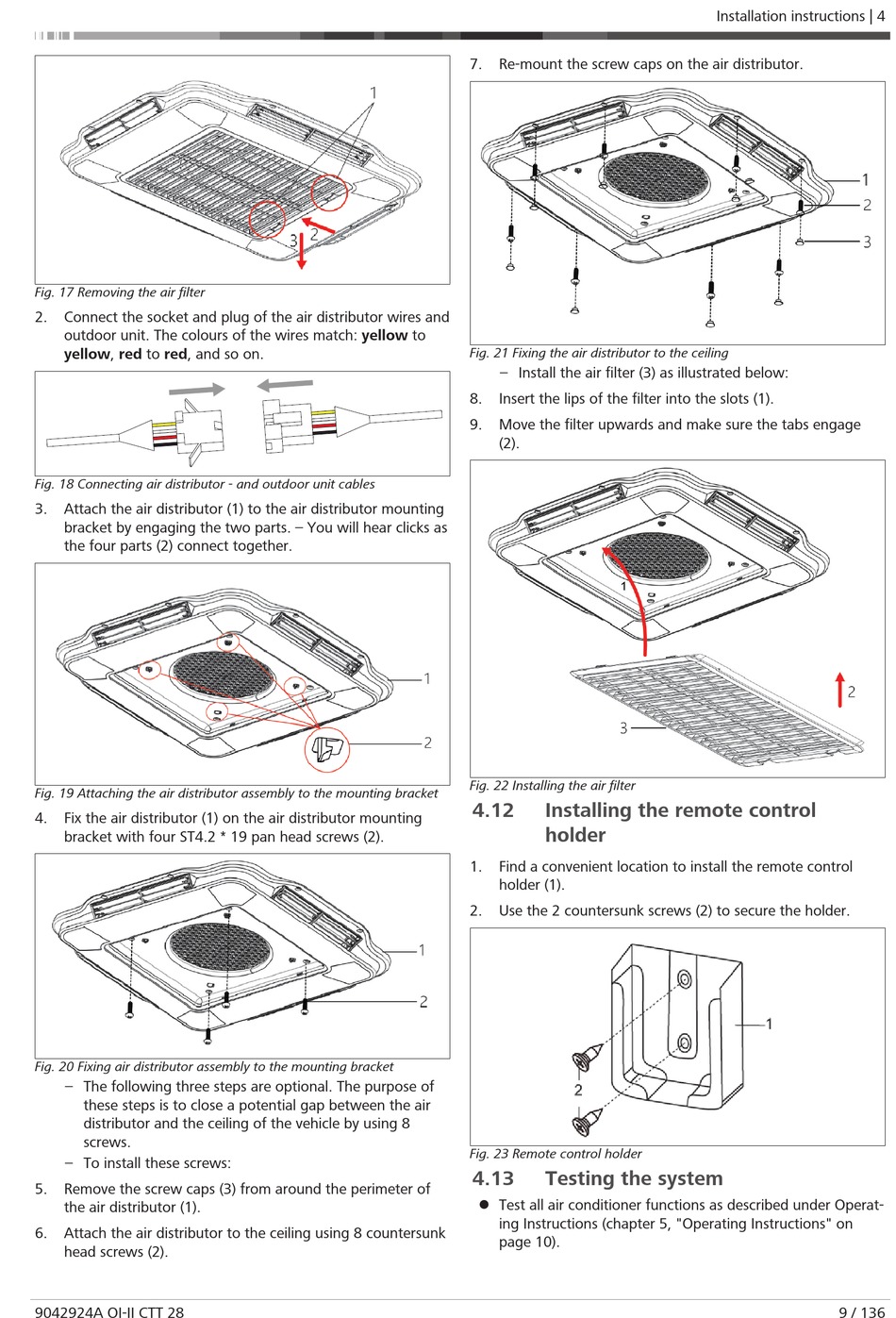

Fig. 17 Removing the air filter
2.
Connect the socket and plug of the air distributor wires and
outdoor unit. The colours of the wires match: yellow to
yellow, red to red, and so on.
Fig. 18 Connecting air distributor - and outdoor unit cables
3.
Attach the air distributor (1) to the air distributor mounting
bracket by engaging the two parts. – You will hear clicks as
the four parts (2) connect together.
Fig. 19 Attaching the air distributor assembly to the mounting bracket
4.
Fix the air distributor (1) on the air distributor mounting
bracket with four ST4.2 * 19 pan head screws (2).
Fig. 20 Fixing air distributor assembly to the mounting bracket
– The following three steps are optional. The purpose of
these steps is to close a potential gap between the air
distributor and the ceiling of the vehicle by using 8
screws.
– To install these screws:
5.
Remove the screw caps (3) from around the perimeter of
the air distributor (1).
6.
Attach the air distributor to the ceiling using 8 countersunk
head screws (2).
9042924A OI-II CTT 28
7.
Re-mount the screw caps on the air distributor.
Fig. 21 Fixing the air distributor to the ceiling
– Install the air filter (3) as illustrated below:
8.
Insert the lips of the filter into the slots (1).
9.
Move the filter upwards and make sure the tabs engage
(2).
Fig. 22 Installing the air filter
4.12
Installing the remote control
holder
1.
Find a convenient location to install the remote control
holder (1).
2.
Use the 2 countersunk screws (2) to secure the holder.
Fig. 23 Remote control holder
4.13
Testing the system
l Test all air conditioner functions as described under Operat-
ing Instructions (chapter 5, "Operating Instructions" on
page 10).
Installation instructions | 4
