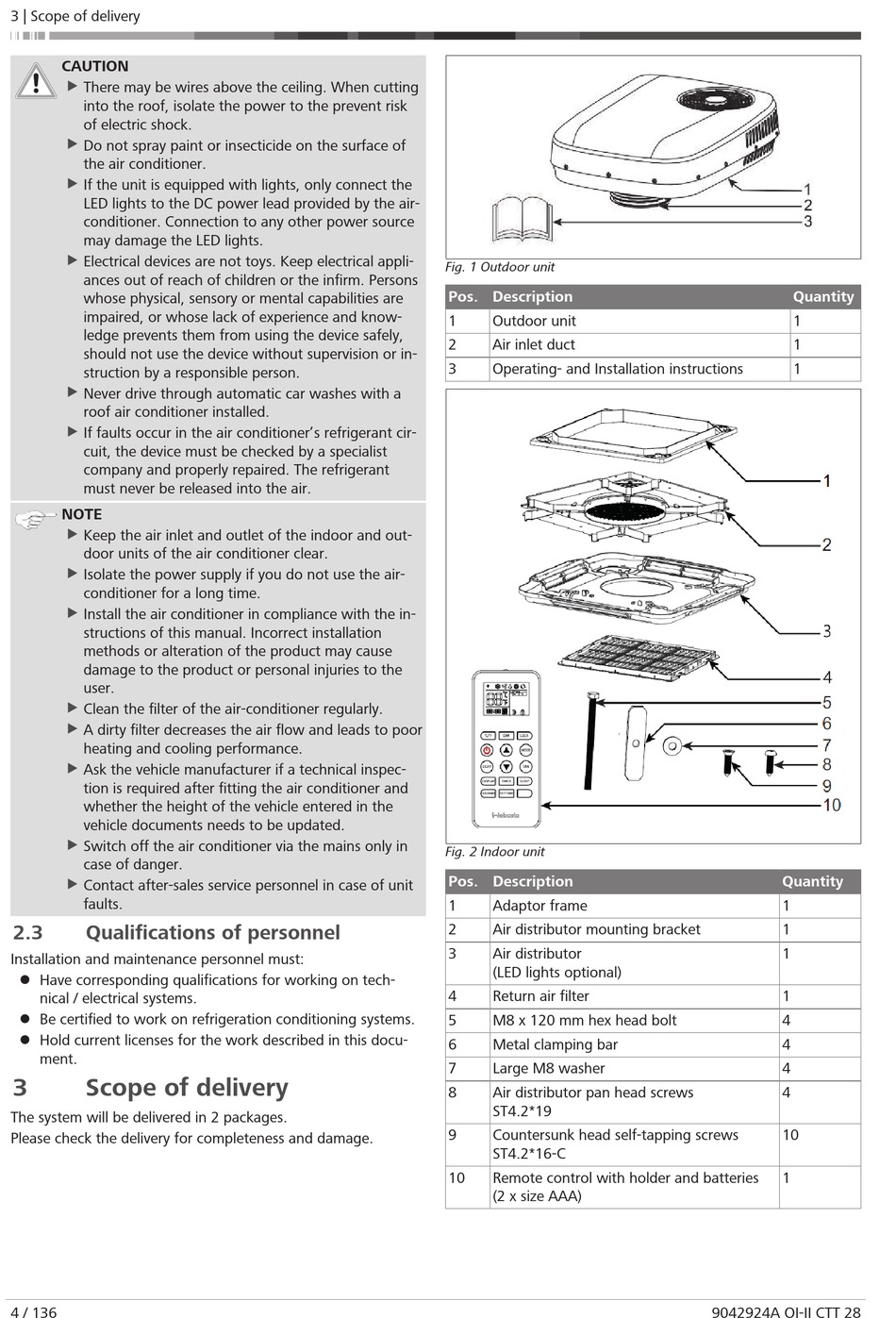

3 | Scope of delivery
CAUTION
u
There may be wires above the ceiling. When cutting
into the roof, isolate the power to the prevent risk
of electric shock.
u
Do not spray paint or insecticide on the surface of
the air conditioner.
u
If the unit is equipped with lights, only connect the
LED lights to the DC power lead provided by the air-
conditioner. Connection to any other power source
may damage the LED lights.
u
Electrical devices are not toys. Keep electrical appli-
ances out of reach of children or the infirm. Persons
whose physical, sensory or mental capabilities are
impaired, or whose lack of experience and know-
ledge prevents them from using the device safely,
should not use the device without supervision or in-
struction by a responsible person.
u
Never drive through automatic car washes with a
roof air conditioner installed.
u
If faults occur in the air conditioner's refrigerant cir-
cuit, the device must be checked by a specialist
company and properly repaired. The refrigerant
must never be released into the air.
NOTE
u
Keep the air inlet and outlet of the indoor and out-
door units of the air conditioner clear.
u
Isolate the power supply if you do not use the air-
conditioner for a long time.
u
Install the air conditioner in compliance with the in-
structions of this manual. Incorrect installation
methods or alteration of the product may cause
damage to the product or personal injuries to the
user.
u
Clean the filter of the air-conditioner regularly.
u
A dirty filter decreases the air flow and leads to poor
heating and cooling performance.
u
Ask the vehicle manufacturer if a technical inspec-
tion is required after fitting the air conditioner and
whether the height of the vehicle entered in the
vehicle documents needs to be updated.
u
Switch off the air conditioner via the mains only in
case of danger.
u
Contact after-sales service personnel in case of unit
faults.
2.3
Qualifications of personnel
Installation and maintenance personnel must:
l Have corresponding qualifications for working on tech-
nical / electrical systems.
l Be certified to work on refrigeration conditioning systems.
l Hold current licenses for the work described in this docu-
ment.
3
Scope of delivery
The system will be delivered in 2 packages.
Please check the delivery for completeness and damage.
4 / 136
Fig. 1 Outdoor unit
Pos. Description
1
Outdoor unit
2
Air inlet duct
3
Operating- and Installation instructions
Fig. 2 Indoor unit
Pos. Description
1
Adaptor frame
2
Air distributor mounting bracket
3
Air distributor
(LED lights optional)
4
Return air filter
5
M8 x 120 mm hex head bolt
6
Metal clamping bar
7
Large M8 washer
8
Air distributor pan head screws
ST4.2*19
9
Countersunk head self-tapping screws
ST4.2*16-C
10
Remote control with holder and batteries
(2 x size AAA)
Quantity
1
1
1
Quantity
1
1
1
1
4
4
4
4
10
1
9042924A OI-II CTT 28
