Operation instructions | MIE 8-00N | MIE 16-00N | MIE 32-00N | MIE 4-02N | MIE 8-02N | MIE 3-02N | MIE 6-02N

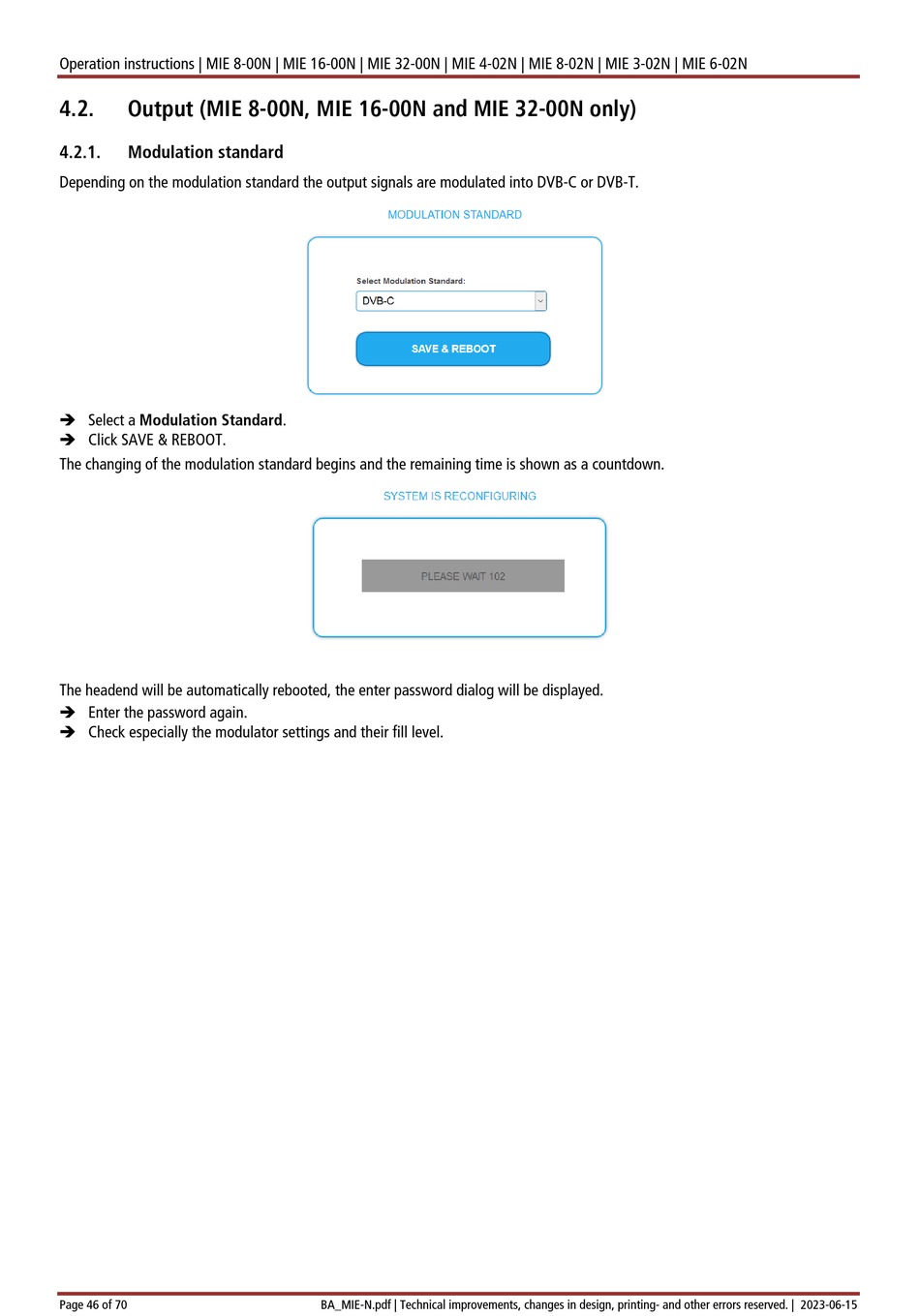

4.2. Output (MIE 8-00N, MIE 16-00N and MIE 32-00N only)
4.2.1. Modulation standard
Depending on the modulation standard the output signals are modulated into DVB-C or DVB-T.
 Select a Modulation Standard.
 Click SAVE & REBOOT.
The changing of the modulation standard begins and the remaining time is shown as a countdown.
The headend will be automatically rebooted, the enter password dialog will be displayed.
 Enter the password again.
 Check especially the modulator settings and their fill level.
Page 46 of 70 BA_MIE-N.pdf | Technical improvements, changes in design, printing- and other errors reserved. | 2023-06-15
