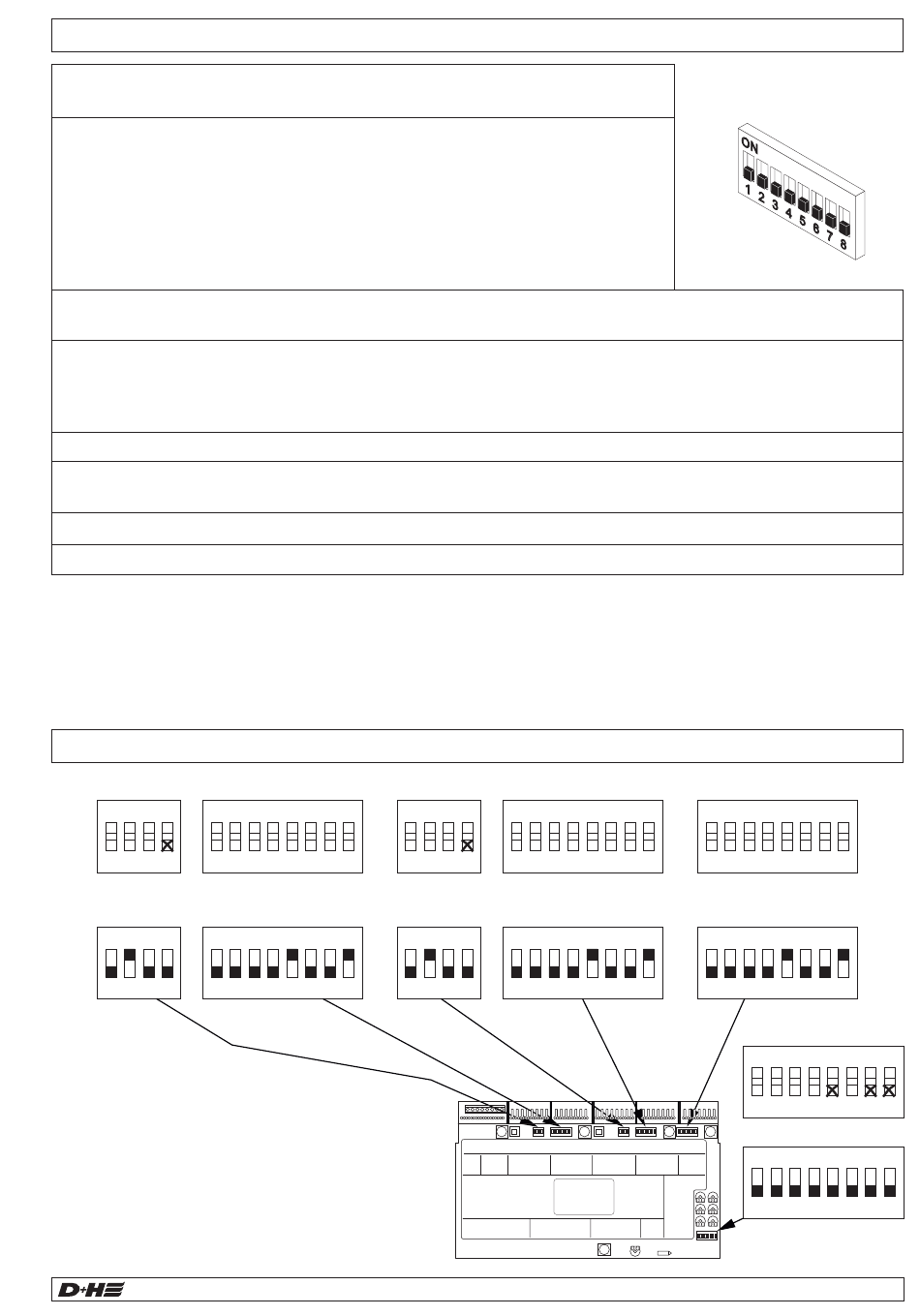

Encoding of control panel – DIP switch S6
1 = ON *
Line 2 on group 3. Line 2 is also effective on group 3.
1 = OFF *
Group 3 is independent of line 2. Group 3 is not monitored!
2 = ON *
Central alarm
In case of alarm of one line, the other line will be set on alarm
as well. With the setting Central alarm and only one line
connected and with several groups, the fault, for example,
at the last group will not be shown at the first line.
In this case, fault and control must be set at the E-slot.
(No indication of the servicetimer in the smoke vent button.
See page 20)
3 = ON
Power failure "CLOSE" (Only if DIP switch S2.4, S4.4, S5.4 = ON).
In case of power failure the drives will close.
4 = ON
AdComNet Bus Control
When using the control panel within an AdComNet network (in conjunction with the
connection module ACN-CM 501) the switch must be on ON.
4 = OFF
When using the control panel without an AdComNet connection..
5 =
idle
6 = ON
LED Test / Reset WDT Fehler (Watch Dog Timer)
Actuate DIP switch (ON / OFF). LED's will light up for 3 seconds in control panel.
7 =
idle
8 =
idle
* In AdComNet operation (S6.4 = ON) these DIP switches are disabled.
The setting of the functions carried out over the AdComNet software.
DIP switch settings
Enter the configuration at start-up:
ON
ON
1 2 3 4
1 2 3 4 5 6 7 8
S1
S2
Delivery state:
ON
ON
1 2 3 4
1 2 3 4 5 6 7 8
S1
S2
99.823.21 3.9/01/22
ON
ON
1 2 3 4
1 2 3 4 5 6 7 8
S3
S4
ON
ON
1 2 3 4
1 2 3 4 5 6 7 8
S3
S4
English
Delivery state:
S6
ON
1 2 3 4 5 6 7 8
S5
ON
1 2 3 4 5 6 7 8
S5
ON
1 2 3 4 5 6 7 8
S6
ON
1 2 3 4 5 6 7 8
S6
25/36
RZN 4416-M
