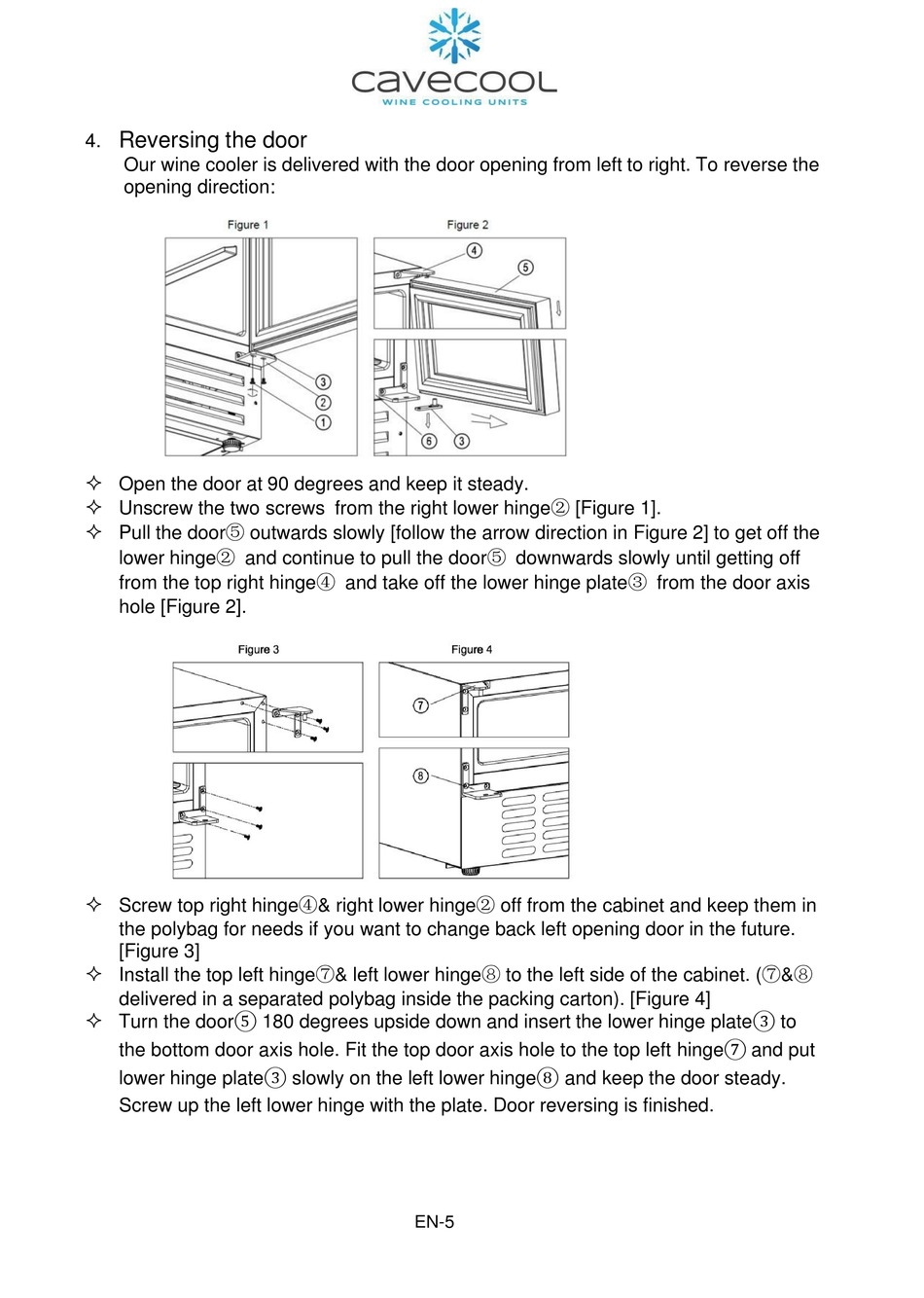

Reversing the door

4.
Our wine cooler is delivered with the door opening from left to right. To reverse the
opening direction:
 Open the door at 90 degrees and keep it steady.
 Unscrew the two screws from the right lower hinge② [Figure 1].
 Pull the door⑤ outwards slowly [follow the arrow direction in Figure 2] to get off the
lower hinge② and continue to pull the door⑤ downwards slowly until getting off
from the top right hinge④ and take off the lower hinge plate③ from the door axis
hole [Figure 2].
 Screw top right hinge④& right lower hinge② off from the cabinet and keep them in
the polybag for needs if you want to change back left opening door in the future.
[Figure 3]
 Install the top left hinge⑦& left lower hinge⑧ to the left side of the cabinet. (⑦&⑧
delivered in a separated polybag inside the packing carton). [Figure 4]
 Turn the door⑤ 180 degrees upside down and insert the lower hinge plate③ to
the bottom door axis hole. Fit the top door axis hole to the top left hinge⑦ and put
lower hinge plate③ slowly on the left lower hinge⑧ and keep the door steady.
Screw up the left lower hinge with the plate. Door reversing is finished.
EN-5
