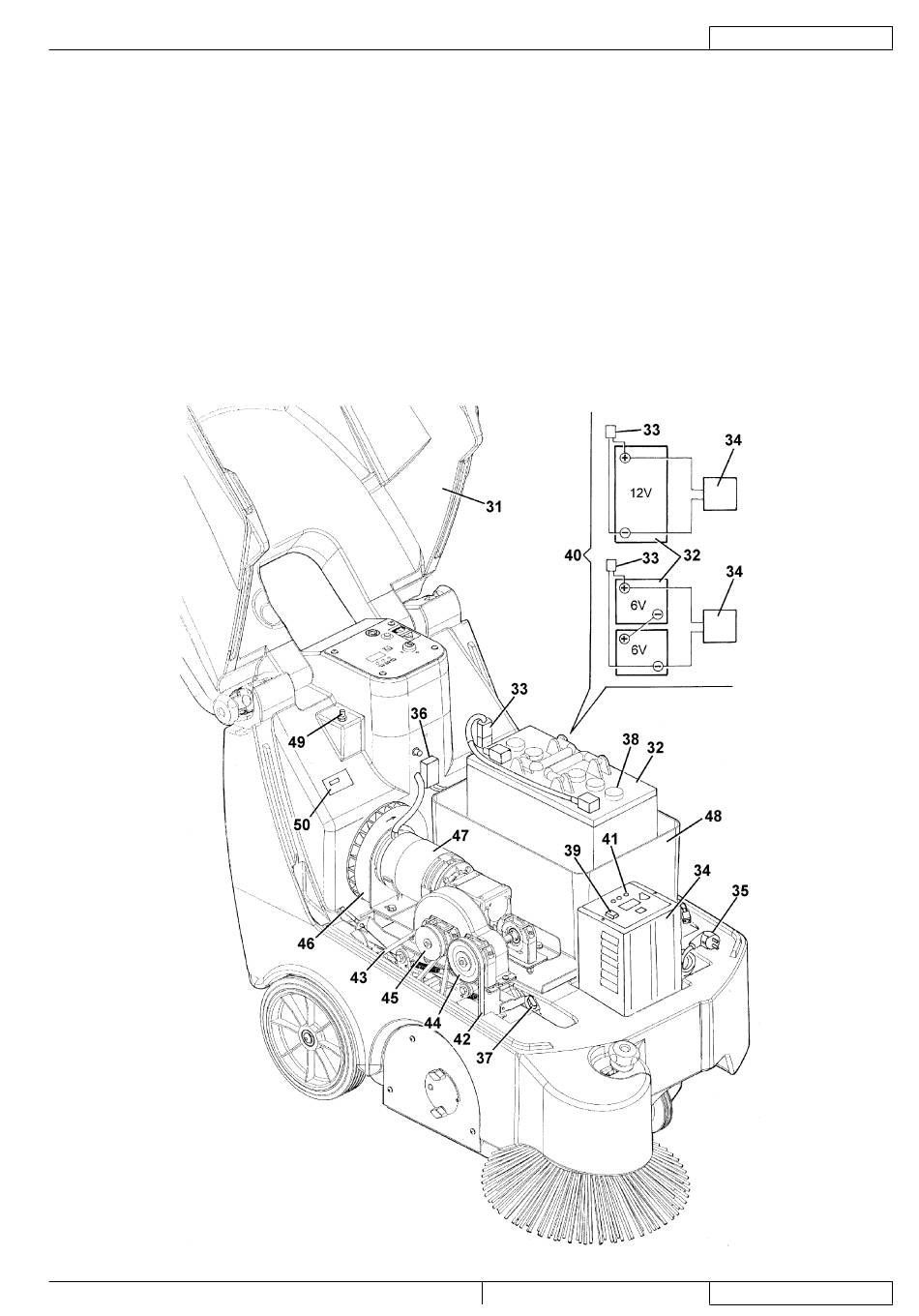

MACHINE STRUCTURE (Continues)
31. Hood (open)
32. Batteries
33. Battery connector
34. Electronic battery charger (optional)
35. Electronic battery charger cable
36. Main fuse
37. Side broom fuse
38. Battery caps (for WET batteries only)
39. Lead (WET) or gel (GEL) battery selector on the optional
electronic battery charger
40. Battery connection diagram
41. Charged battery warning light (green)
42. Main broom belt
43. Driving belt
44. Main broom drive pulley
45. Rear wheel drive pulley
46. Vacuum fan
47. Main motor
48. Battery case
49. Hood safety switch
50. Serial number plate/technical data/conformity certifi cation
