CHAPTER 5
PROGRAMMING

5.1 CONTROL PANEL DESCRIPTION

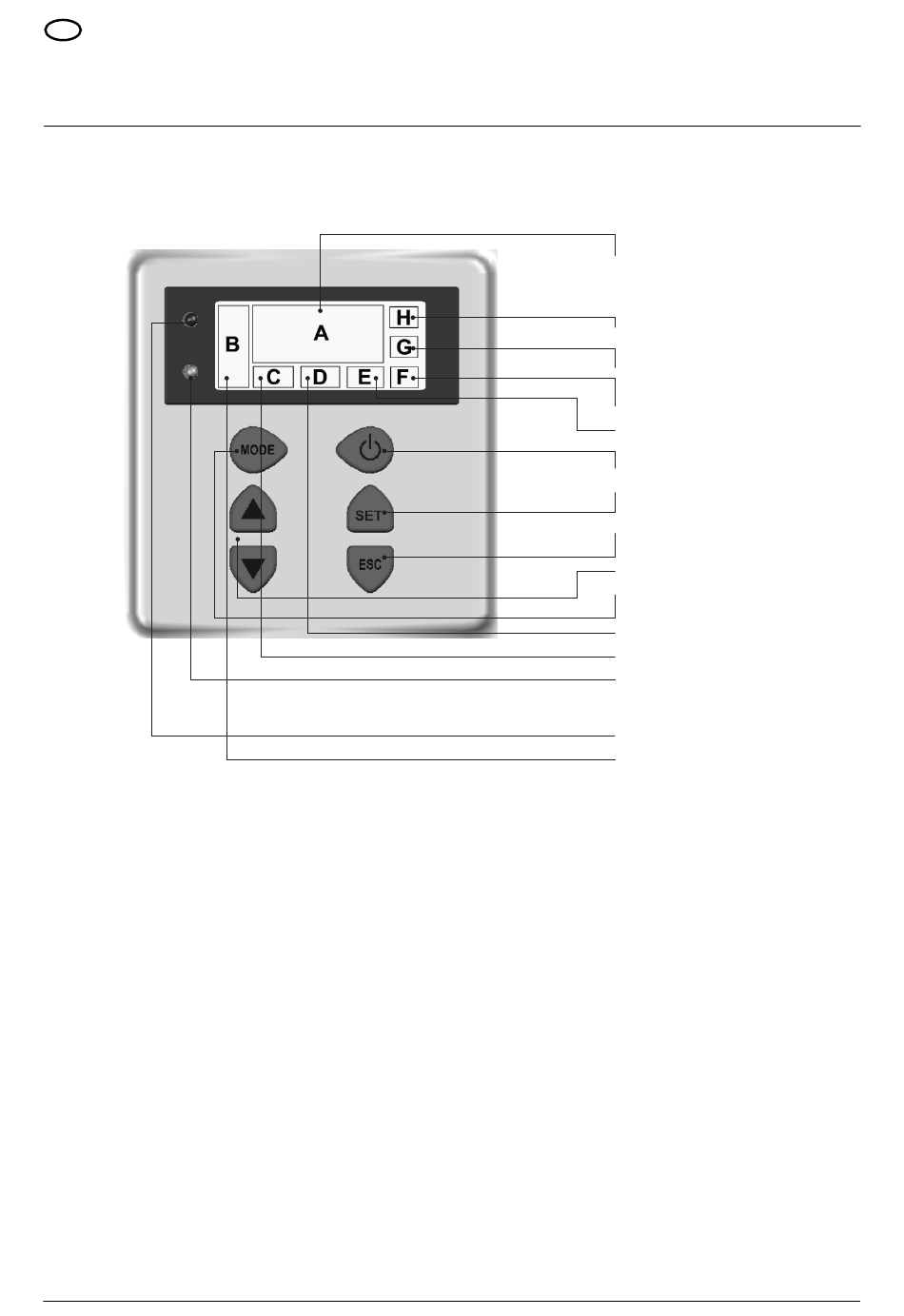

The control panel is shown in picture below.
Press the START/STOP button to start and/or stop the pump

5.2 DESCRIPTION OF SIGNALS ON DISPLAY

When running normally (that is, in the absence of any alarms) press the MODE button to alternate the various displays available:
1. BAR/PSI - SYSTEM PRESSURE
•
Current pressure, shown in large
numbers on the display
•
Currently active set point (set 1 or set
2), shown in small numbers on the
display
2. HZ - MOTOR FREQUENCY
•
Current frequency of the pump in Hz
28
•
Pressure unit of measurement
(bar or PSI)
•
Frequency graph indicator
•
Frequency graph indicator
•
Indication: Day/Hour/Pressure/Alarms/
Faults/Advanced parameters
Frequency/Current/State of the pump.
•
Indication of access to settings.
•
Unit of measure of the displayed
parameter.
•
Temperature alarm indication.
•
Address module (Primary/Secondary).
•
START/STOP/Reset key.
•
Key to confirm the changes made.
•
Key for cancelling the changes made
during setup.
•
Parameters change pushbuttons.
•
Display change pushbutton.
•
Control type display icon.
•
Indication of displayed SET-POINT.
•
Operation LED (green)
Alarm/Fault (red).
•
Line LED green.
•
Graphic display of the frequency
supplied to the motor.
•
Day of the week
•
Master (P) or Slave (S), only for unit
configuration
•
Day of the week
