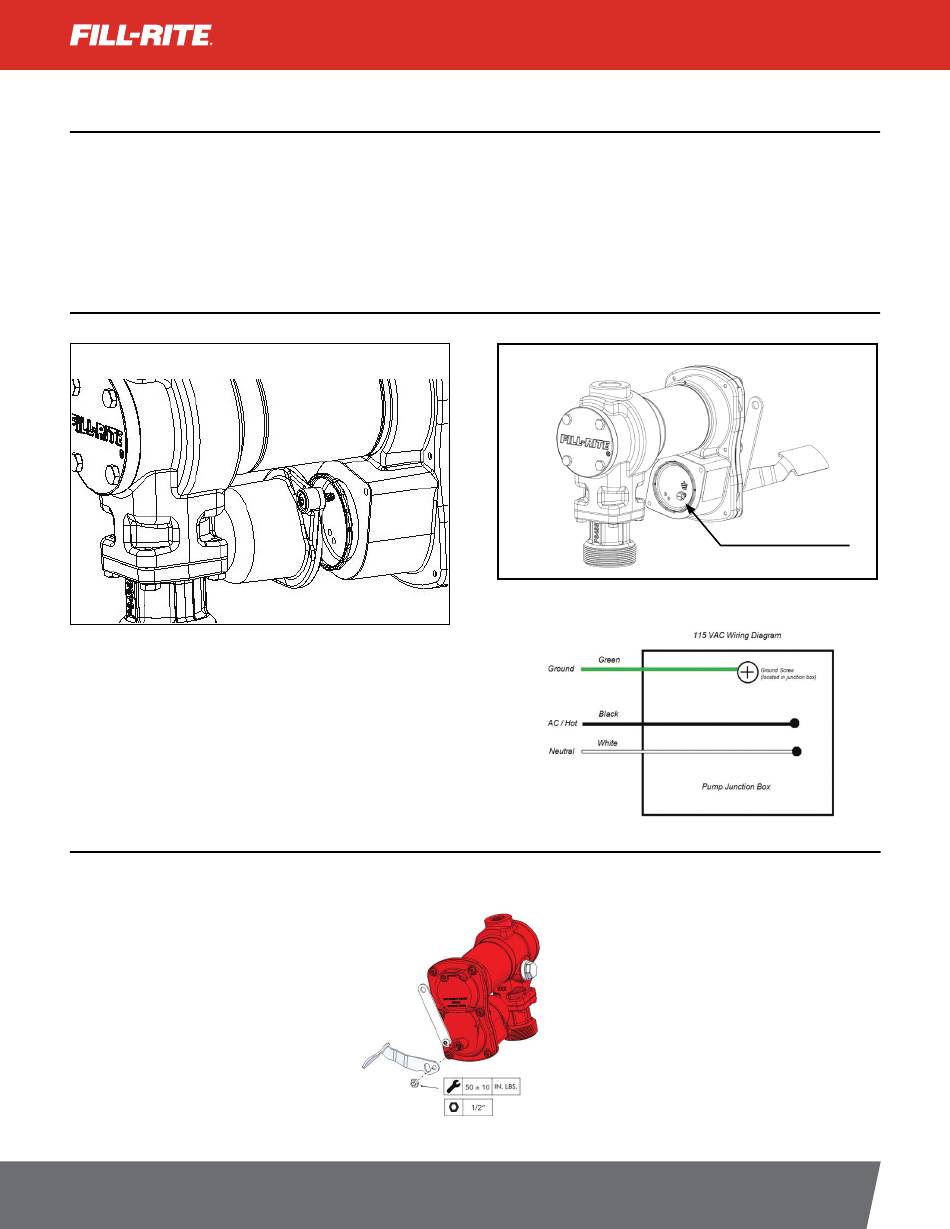

115V AC Wiring Procedure
1. Remove the junction box cover and straighten the wires to make sure the stripped wire ends are accessible outside the junction box.
2. Install rigid conduit and appropriate wiring from power source to the junction box to maintain the explosion-proof integrity.
3. Connect the pump wires to the power supply lines according to the wiring diagram. Be certain to properly insulate the connections with the appropriate
wire nuts or other connectors. NOTE: The ground wire MUST be connected. Ground wire connection is inside the junction box (Diagram 6b).
4. Fold the wires back into the junction box and replace the cover, making sure the cover gasket is in place.
115V AC Pump Junction Box (FR/SD600 Series AC Fuel Transfer Pumps)
115V AC Wiring Diagram for FR/SD600 AC Fuel Transfer Pumps.
A ground wire must be included within the supply line power cable.
This wire must be connected to the ground screw terminal on the inside
of the junction box surface.
Switch Level Installation Instructions
Effective March 7, 2022, the fuel transfer pump on/off switch lever will need to be installed in the field. Please see Figure 1 for a visual guide on the
proper installation of this lever.
fillrite.com
H-SERIES FUEL TRANSFER PUMPS
Diagram 6a
Figure 1
INSTALLATION AND OPERATION MANUAL
INTERNAL GROUND SCREW
115V AC Wiring Diagram
Diagram 6b
