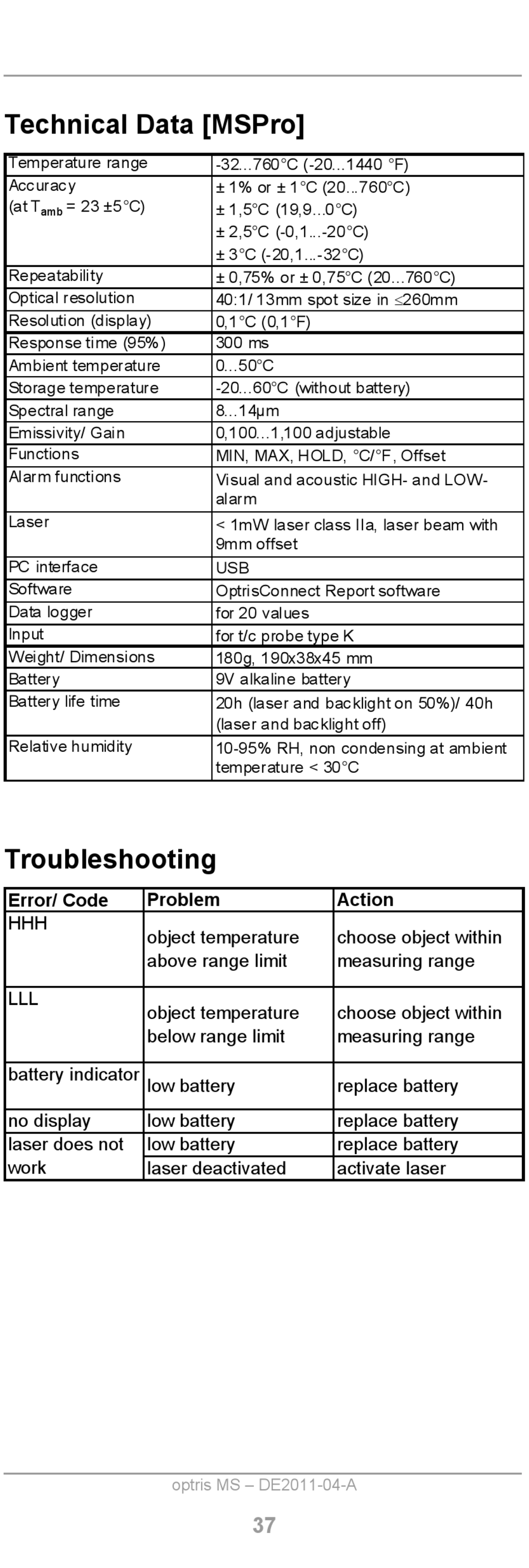

Technical Data [MSPro]
Temperature range
Accuracy
(at T = 23 ±5°C)
amb
Repeatability
Optical resolution
Resolution (display)
Response time (95% )
Ambient temperature
Storage temperature
Spectral range
Emissivity/ Gain
Functions
Alarm functions
Laser
PC interface
Software
Data logger
Input
Weight/ Dimensions
Battery
Battery life time
Relative humidity
Troubleshooting
Error/ Code
HHH
LLL
battery indicator
no display
laser does not
work
-32...760°C (-20...1440 °F)
± 1% or ± 1°C (20...760°C)
± 1,5°C (19,9...0°C)
± 2,5°C (-0,1...-20°C)
± 3°C (-20,1...-32°C)
± 0,75% or ± 0,75°C (20...760°C)
40:1/ 13mm spot size in 260mm
0,1°C (0,1°F)
300 ms
0...50°C
-20...60°C (without battery)
8...14µm
0,100...1,100 adjustable
MIN, MAX, HOLD, °C/°F, Offset
Visual and acoustic HIGH- and LOW-
alarm
< 1mW laser class IIa, laser beam with
9mm offset
USB
OptrisConnect Report software
for 20 values
for t/c probe type K
180g, 190x38x45 mm
9V alkaline battery
20h (laser and bac klight on 50%)/ 40h
(laser and bac klight off)
10-95% RH, non condensing at ambient
temperature < 30°C
Problem
object temperature
above range limit
object temperature
below range limit
low battery
low battery
low battery
laser deactivated
optris MS – DE2011-04-A
Action
choose object within
measuring range
choose object within
measuring range
replace battery
replace battery
replace battery
activate laser
