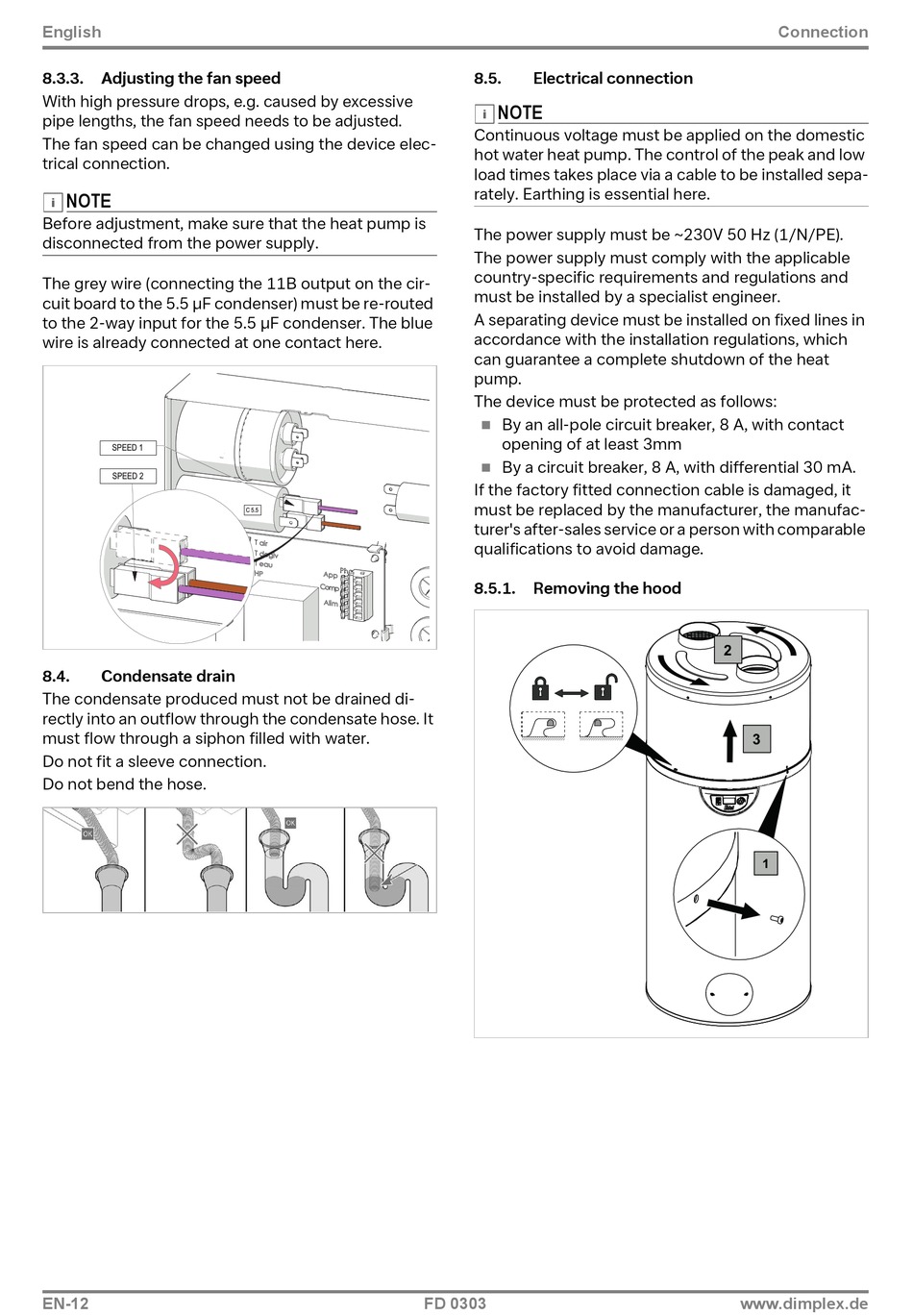

8.3.3.

Adjusting the fan speed

With high pressure drops, e.g. caused by excessive
pipe lengths, the fan speed needs to be adjusted.
The fan speed can be changed using the device elec-
trical connection.
NOTE
Before adjustment, make sure that the heat pump is
disconnected from the power supply.
The grey wire (connecting the 11B output on the cir-
cuit board to the 5.5 μF condenser) must be re-routed
to the 2-way input for the 5.5 μF condenser. The blue
wire is already connected at one contact here.
SPEED 1
SPEED 2
8.4. Condensate drain
The condensate produced must not be drained di-
rectly into an outflow through the condensate hose. It
must flow through a siphon filled with water.
Do not fit a sleeve connection.
Do not bend the hose.
EN-12
C 5.5
8.5.

Electrical connection

NOTE
Continuous voltage must be applied on the domestic
hot water heat pump. The control of the peak and low
load times takes place via a cable to be installed sepa-
rately. Earthing is essential here.
The power supply must be ~230V 50 Hz (1/N/PE).
The power supply must comply with the applicable
country-specific requirements and regulations and
must be installed by a specialist engineer.
A separating device must be installed on fixed lines in
accordance with the installation regulations, which
can guarantee a complete shutdown of the heat
pump.
The device must be protected as follows:
By an all-pole circuit breaker, 8 A, with contact

opening of at least 3mm
By a circuit breaker, 8 A, with differential 30 mA.

If the factory fitted connection cable is damaged, it
must be replaced by the manufacturer, the manufac-
turer's after-sales service or a person with comparable
qualifications to avoid damage.
8.5.1. Removing the hood
FD 0303
Connection
2
3
1
