EN:
◼

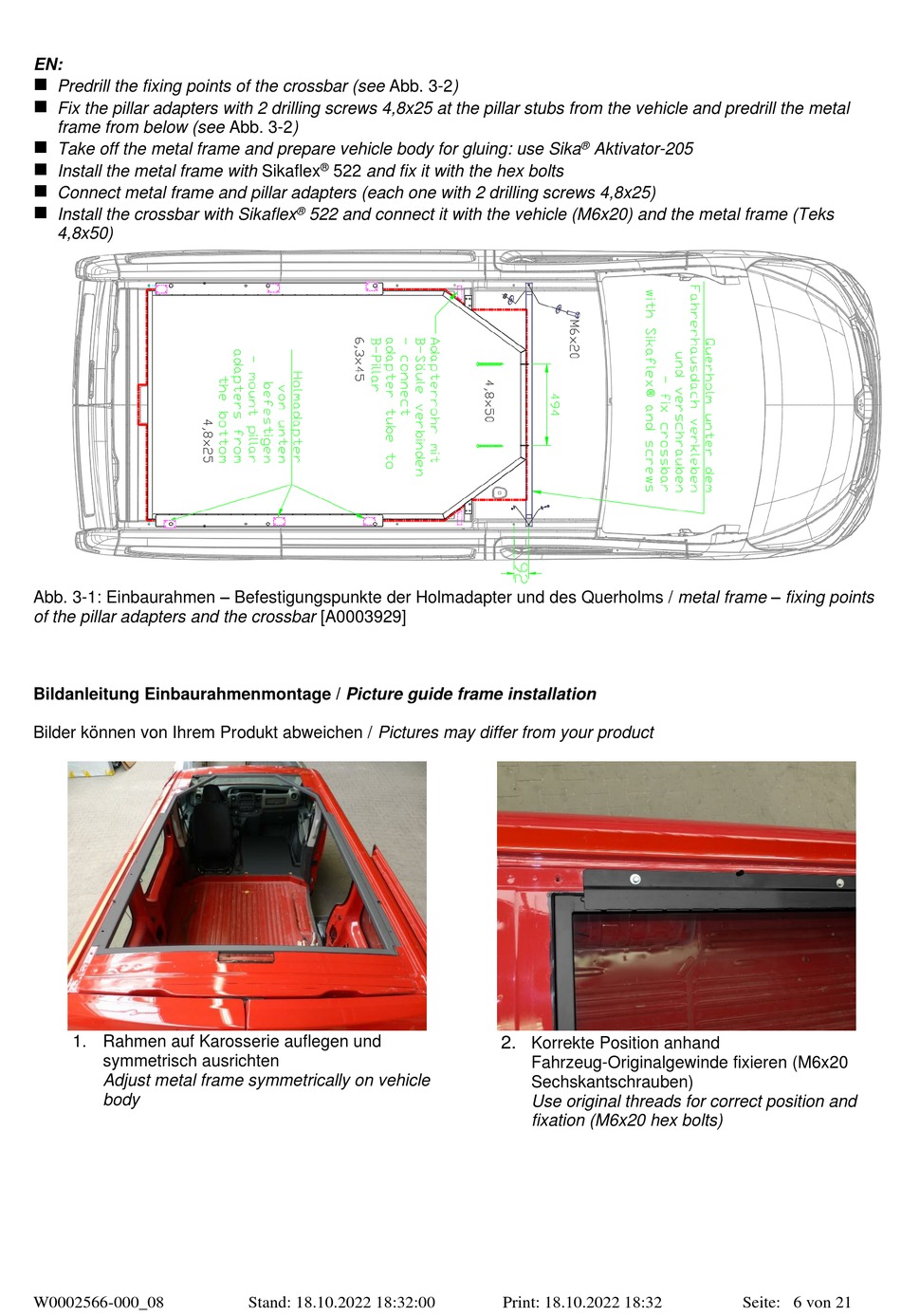

Predrill the fixing points of the crossbar (see Abb. 3-2)
◼
Fix the pillar adapters with 2 drilling screws 4,8x25 at the pillar stubs from the vehicle and predrill the metal
frame from below (see Abb. 3-2)
◼
Take off the metal frame and prepare vehicle body for gluing: use Sika
◼
Install the metal frame with Sikaflex
◼
Connect metal frame and pillar adapters (each one with 2 drilling screws 4,8x25)
◼
Install the crossbar with Sikaflex
4,8x50)
Abb. 3-1: Einbaurahmen – Befestigungspunkte der Holmadapter und des Querholms / metal frame – fixing points
of the pillar adapters and the crossbar [A0003929]
Bildanleitung Einbaurahmenmontage / Picture guide frame installation
Bilder können von Ihrem Produkt abweichen / Pictures may differ from your product
1. Rahmen auf Karosserie auflegen und
symmetrisch ausrichten
Adjust metal frame symmetrically on vehicle
body
W0002566-000_08
®
522 and fix it with the hex bolts
®
522 and connect it with the vehicle (M6x20) and the metal frame (Teks
Stand: 18.10.2022 18:32:00
®
Aktivator-205
2.
Korrekte Position anhand
Fahrzeug-Originalgewinde fixieren (M6x20
Sechskantschrauben)
Use original threads for correct position and
fixation (M6x20 hex bolts)
Print: 18.10.2022 18:32
Seite: 6 von 21
